78390 - Toro 60" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DECK & COVER ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

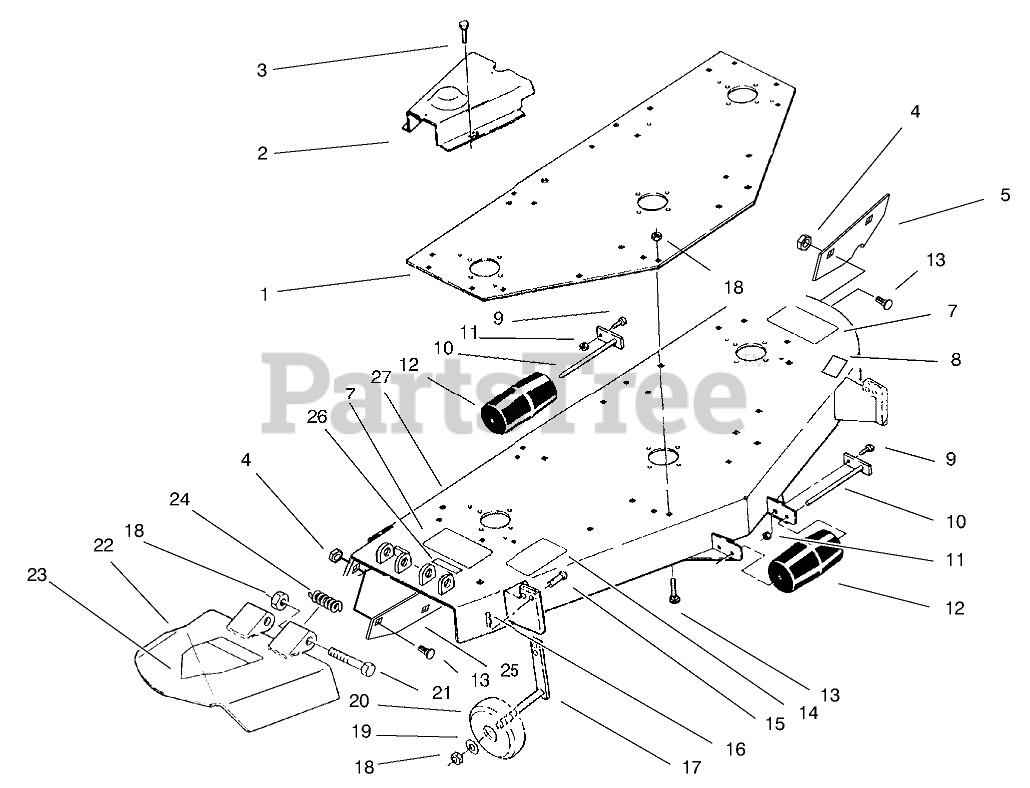

DECK & COVER ASSEMBLY Parts Diagram

  • Title
1

Toro 113053

PLATE-TOP REINFOR R

$

$

Not available

2

Toro 115346

Belt Cover
(Superseded to 115346-01)

$275.99

$

Usually ships in 3-6 days

0

3

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

5

Toro 79-1230

PLTE WEAR LH
(Superseded to 79-1230-03)

$

$

Not available

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

7

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

8

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$

$

Not available

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 113603

ROLLER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 113349

ROLLER-ANTI SCALP

$78.99

$

In Stock, only 2 left!

0

13

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

14

Toro 115223

DECAL-BELT INSTALL

$

$

Not available

15

Toro 9329634

PIN-CLEVIS 3/8 X 1

$3.99

$

Usually ships in 3-6 days

0

16

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

17

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

20

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

21

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

22

Toro 92-6508

Chute Guard Assembly (Incl. Ref.# 23)

$

$

Not available

23

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

24

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

25

Toro 79-1240

Wear Plate RH
(Superseded to 79-1240-01)

$

$

Not available

26

Toro 92-7109

DECAL-CAUTION

$

$

Not available

27

Toro 92-6507

Deck (Incl. Ref. #7 & 26)

$2891.99

$

Usually ships in 3-6 days

0
