78390 - Toro 60" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) SPINDLE & IDLER ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

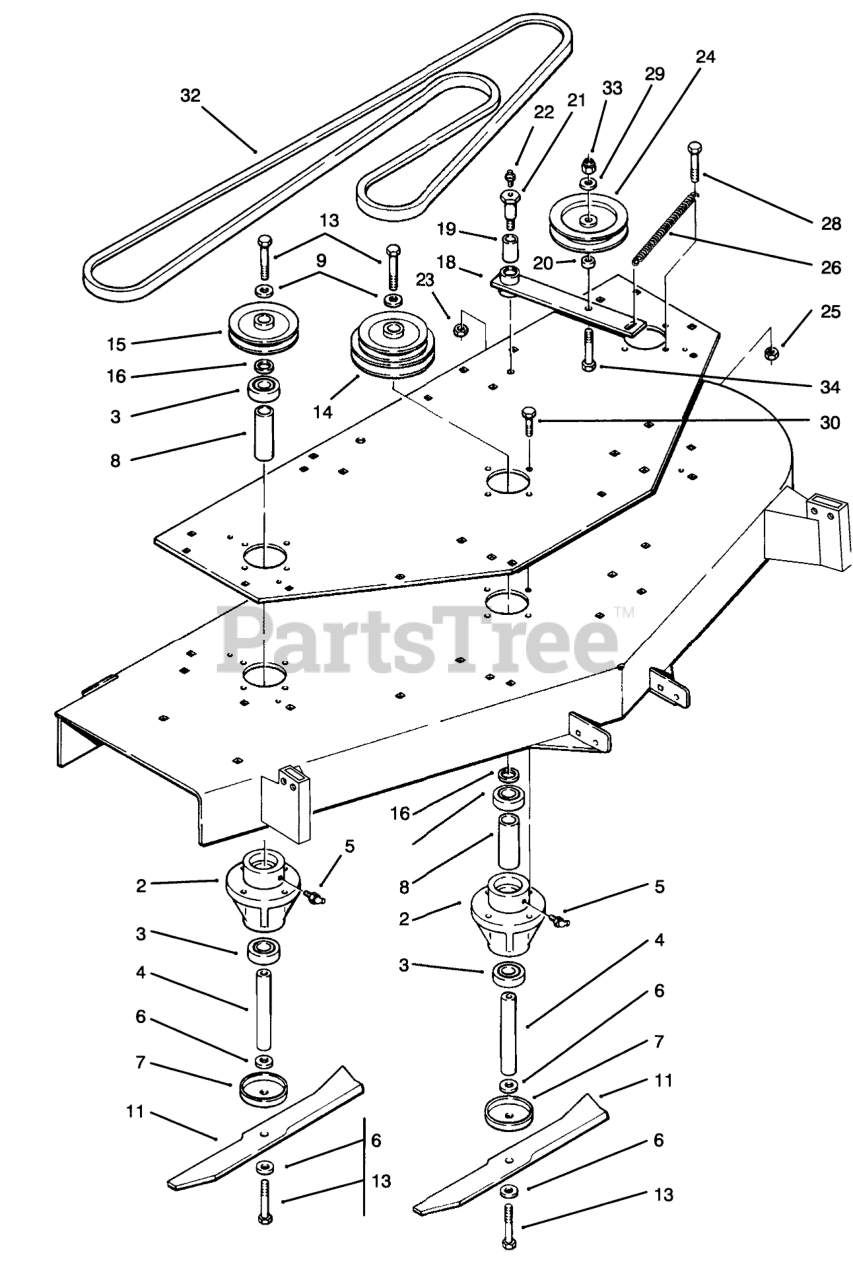

SPINDLE & IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 111013

S/A COMM MWR SPINDLE

$

$

Not available

2

Toro 113516

HOUSING-SPINDLE

$

$

Not available

3

Toro 113514

BEARING-BALL

$21.99

$

In Stock, Qty 18

0

4

Toro 113513

SHAFT-SPINDLE

$

$

Not available

5

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 10

0

6

Toro 920260

WASHER-SPECIAL

$2.49

$

In Stock, only 4 left!

0

7

Toro 113512

CUP-SPINDLE

$

$

Not available

8

Toro 113511

TUBE

$43.99

$

Usually ships in 3-6 days

0

9

Toro 114810

WASHER-SPECIAL

$

$

Not available

11

Toro 112947

BLADE

$35.99

$

In Stock, only 1 left!

0

13

Toro 908088

Bolt
(Superseded to 327-6)

$13.99

$

In Stock, only 1 left!

0

14

Toro 113054

Pulley-Center Spindle
(Superseded to 113054-03)

$

$

Not available

15

Toro 114139

PULLEY-OUTER

$144.99

$

Usually ships in 3-6 days

0

16

Toro 110047

SPACER

$

$

Not available

18

Toro 114835

Idler Arm Assembly (Incl. Ref. #19)
(Superseded to 99-5856)

$

$

Not available

19

Toro 113628

BUSHING

$

$

Not available

20

Toro 9118

SPACER

$

$

Not available

21

Toro 120060

BOLT-SHOULDER

$

$

Not available

22

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 114144

PULLEY-IDLER

$151.99

$

Usually ships in 3-6 days

0

25

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

26

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

32

Toro 112449

BELT-V

$254.99

$

In Stock, only 3 left!

0

33

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0
