78375 - Toro 52" Recycler Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) PULLEY BOX ASSEMBLY Parts Diagram

52" Recycler Mower Deck for 5xi Tractors

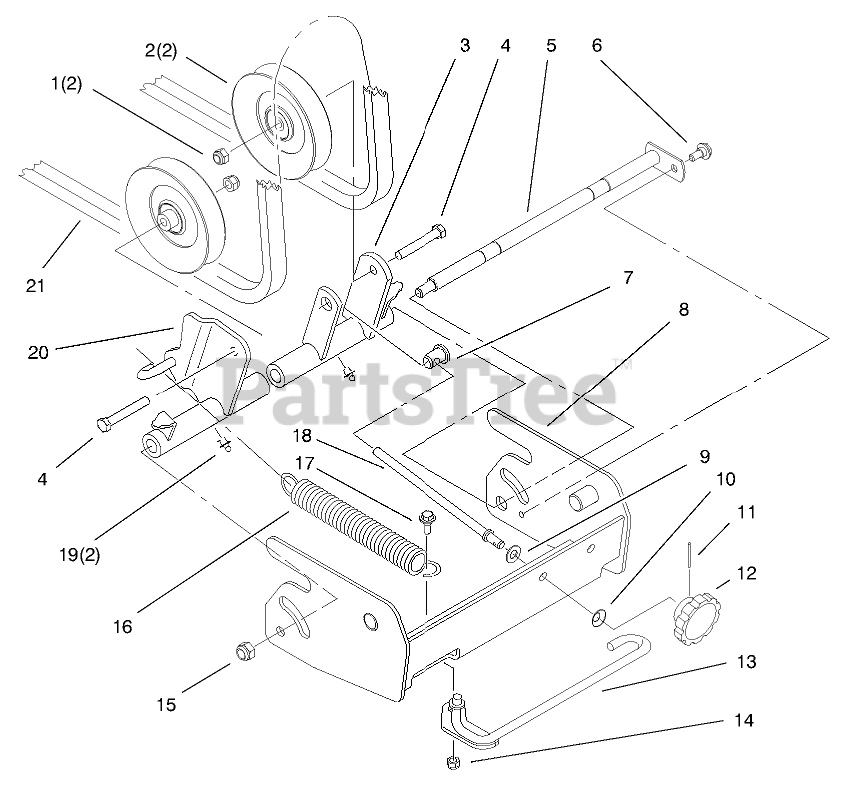

PULLEY BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 94-2447

PULLEY-IDLER

$124.99

$

In Stock, only 1 left!

0

3

Toro 94-2284-01

LEVER-IDLER

$

$

Not available

4

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 94-2423

ROD-PIVOT

$193.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 94-2449

FERRULE-ADJUSTER

$41.99

$

Usually ships in 3-6 days

0

8

Toro 94-2287-03

BOX-PULLEY

$170.99

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

11

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

12

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

13

Toro 94-7764

TENSIONER-IDLER

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

16

Toro 94-2460

SPRING-EXTENSION

$37.99

$

Usually ships in 3-6 days

0

17

Toro 19-1471

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 94-2288

ROD-TENSION

$11.99

$

Usually ships in 3-6 days

0

19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

20

Toro 94-2462-01

ARM-IDLER

$

$

Not available

21

Toro 95-4094

BELT-V

$99.99

$

In Stock, only 1 left!

0
