78370 - Toro 52" Side-Discharge Mower Deck for 5xi Tractors (SN: 250000001 - 250999999) (2005) BAFFLE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 5xi Tractors

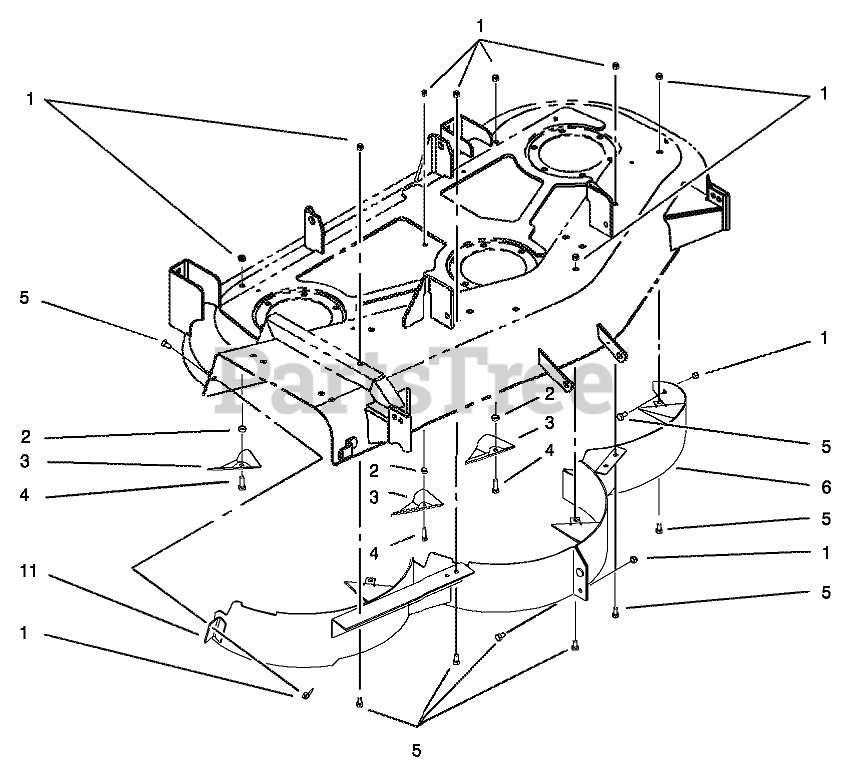

BAFFLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

Nut-Lock, NI (only on: 78375)

$2.49

$

In Stock, Qty 20+

0

2

Toro 59-4310

Spacer (only on: 78375)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 84-5760

Plate-Kicker (only on: 78375)

$15.99

$

Usually ships in 3-6 days

0

4

Toro 322-4

Screw-HH (only on: 78375)

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-2

Screw-HH (only on: 78375)

$2.49

$

In Stock, Qty 13

0

6

Toro 94-2505-03

Left Baffle ASM (only on: 78375)

$

$

Not available

11

Toro 94-2504-03

Right Baffle ASM (only on: 78375)

$742.99

$

Usually ships in 3-6 days

0
