78370 - Toro 52" Side-Discharge Mower Deck for 5xi Tractors (SN: 220000001 - 220999999) (2002) PULLEY BOX ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 5xi Tractors

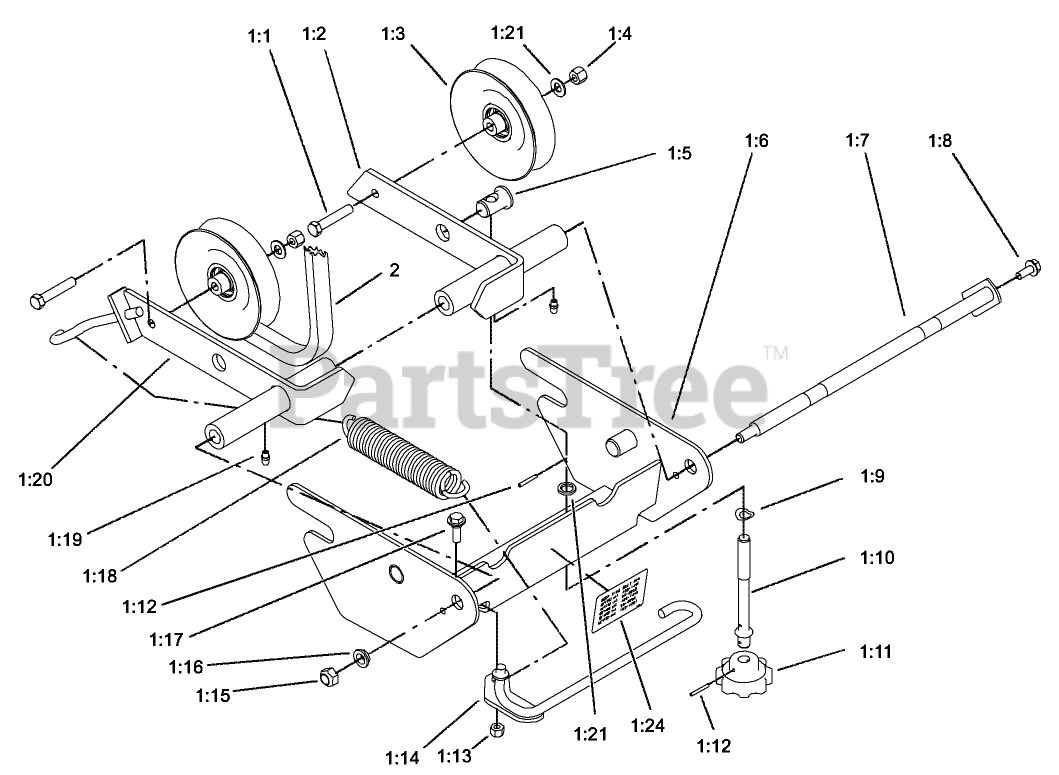

PULLEY BOX ASSEMBLY Parts Diagram

  • Title

1:1

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

1:2

Toro 105-1390-03

LH Tension Bracket ASM

$

$

Not available

1:3

Toro 94-2447

PULLEY-IDLER

$124.99

$

In Stock, only 1 left!

0

1:4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

1:5

Toro 105-1397

Ferrule-Adjuster

$

$

Not available

1:6

Toro 105-1388-03

Pulley Box ASM

$

$

Not available

1:7

Toro 94-2423

ROD-PIVOT

$193.99

$

Usually ships in 3-6 days

0

1:8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

1:10

Toro 105-1398

Rod-Tension

$77.99

$

Usually ships in 3-6 days

0

1:11

Toro 105-1492

Knob-Adjusting

$

$

Not available

1:12

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

1:13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:14

Toro 94-7764

TENSIONER-IDLER

$

$

Not available

1:15

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

1:16

Toro 105-1399

Spacer-Shoulder

$

$

Not available

1:17

Toro 19-1471

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

1:18

Toro 100-1196

SPRING-EXTENSION

$

$

Not available

1:19

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:20

Toro 105-1393-03

RH Tension Bracket ASM

$

$

Not available

1:21

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

1:24

Toro 105-1500

DECAL-PULLEY BOX

$

$

Not available

1:23

Toro 9202634

WASHER

$6.49

$

Usually ships in 3-6 days

0

1

Toro 104-4699

PULLEY BOX ASM

$910.99

$

Usually ships in 3-6 days

0

2

Toro 95-4094

BELT-V

$99.99

$

In Stock, only 1 left!

0
