78364 - Toro 48" Recycler Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) SPINDLE AND BLADE ASSEMBLY Parts Diagram

48" Recycler Mower Deck for 5xi Tractors

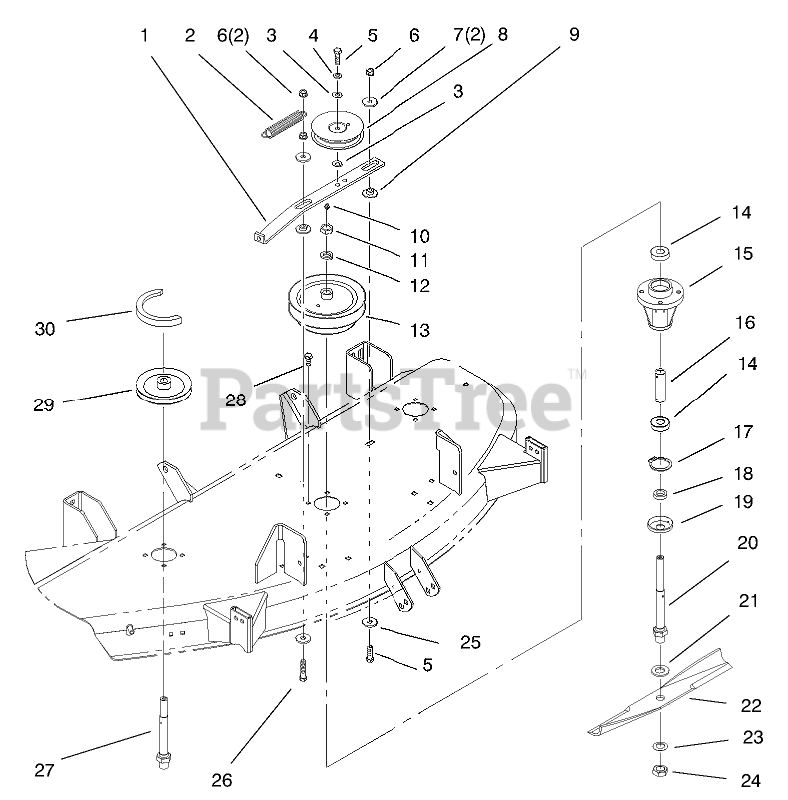

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-3876

BAR-IDLER SUPPORT

$

$

Not available

2

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

5

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

7

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

8

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

9

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

12

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 95-3958

PULLEY-DOUBLE

$244.99

$

In Stock, only 1 left!

0

14

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

15

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

16

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

17

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

18

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

19

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

20

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

21

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

22

Toro 106078

Blade-16" (Only On: 78363, 78448)
(Superseded to 106637)

$101.99

$

In Stock, only 1 left!

0

22

Toro 94-9719

Blade-16" (Only On: 78364)

$

$

Currently unavailable

23

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

24

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

25

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

26

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

28

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

29

Toro 110146

PULLEY-BLADE, DRIVE

$71.99

$

In Stock, only 1 left!

0

30

Toro 95-3878

V-BELT

$153.99

$

In Stock, only 1 left!

0
