78363 - Toro 48" Side-Discharge Mower Deck for 5xi Tractors (SN: 200000001 - 200999999) (2000) REINFORCEMENT PLATE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 5xi Tractors

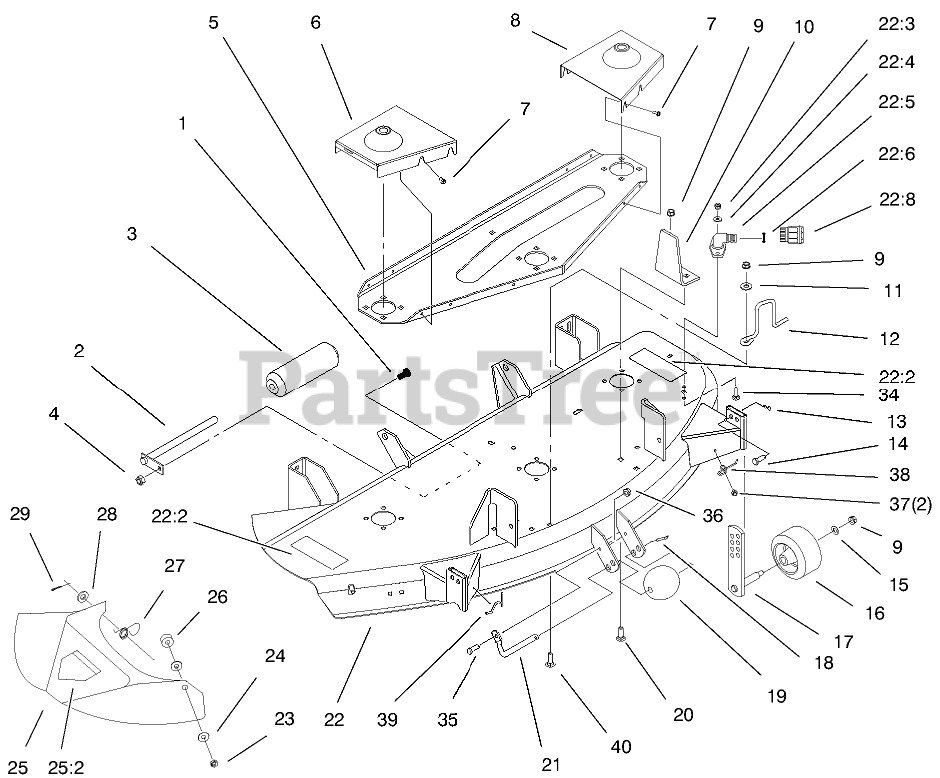

REINFORCEMENT PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

2

Toro 113603

ROLLER-SHAFT

$49.99

$

Usually ships in 3-6 days

0

3

Toro 113349

ROLLER-ANTI SCALP

$84.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 95-3879-01

PLATE-REINFORCE

$

$

Not available

6

Toro 95-3949-01

COVER-BELT, RH

$

$

Not available

7

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 95-3950-01

COVER-BELT, LH

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-7642-01

BRACKET-GUIDE

$

$

Not available

11

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

12

Toro 95-3953

GUIDE-BELT

$

$

Not available

13

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

14

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

17

Toro 68-2350

GAGE-WHEEL

$143.99

$

Usually ships in 3-6 days

0

18

Toro 3272-21

PIN-COTTER

$3.99

$

In Stock, only 3 left!

0

19

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 11

0

20

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

21

Toro 118960-03

Shaft-Roller

$46.99

$

In Stock, only 3 left!

0

22

Toro 99-8082

Deck ASM (Only On: 78363)

$2039.99

$

Usually ships in 3-6 days

0

22

Toro 98-5091

Deck ASM (Only On: 78448)

$

$

Not available

22:2

Toro 92-7108

Decal-Danger (Only On: 78363)

$7.99

$

Usually ships in 3-6 days

0

22:2

Toro 93-7317

Decal-Danger (Only On: 78448)

$

$

Not available

22:3

Toro 3296-16

Nut-Lock Ni (Only On: 78363)

$1.99

$

In Stock, Qty 5

0

22:4

Toro 3256-1

Washer-Flat (Only On: 78363)

$0.99

$

In Stock, Qty 20+

0

22:5

Toro 95-2747

Fitting-Washout (Only On: 78363)
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 20+

0

22:6

Toro 46-6290

O-Ring (Only On: 78363)

$2.99

$

In Stock, Qty 9

0

22:8

Toro 95-3270

Connector-Hose (Only On: 78363)

$25.99

$

In Stock, Qty 20+

0

22:7

Toro 3229-1

Screw-CARR (Only On: 78363)

$3.99

$

In Stock, Qty 20+

0

23

Toro 9152366

NUT-HJ

$3.99

$

In Stock, only 1 left!

0

24

Toro 93-1633

WASHER

$2.99

$

In Stock, only 4 left!

0

25

Toro 99-3708

Chute ASM (Only On: 78363)

$288.99

$

Usually ships in 3-6 days

0

25

Toro 99-3707

Chute ASM (Intl-Service 42"/48")(Only On: 78448)

$

$

Not available

25:2

Toro 93-7316

Decal-Danger (Only On: 78448)

$10.99

$

In Stock, Qty 20+

0

25:2

Toro 93-1122

Decal-, Danger (Only On: 78363)

$10.99

$

In Stock, Qty 11

0

26

Toro 116080

BUSHING-PIVOT

$20.99

$

Usually ships in 3-6 days

0

27

Toro 93-1630

SPRING-DEFLECTOR

$20.99

$

Usually ships in 3-6 days

0

28

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

37

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

38

Toro 98-5032

SPRING-GAGE WHEEL, LH

$

$

Not available

39

Toro 98-5033

SPRING-GAGE WHEEL, RH

$

$

Not available

40

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0
