78363 - Toro 48" Side-Discharge Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) BAFFLE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 5xi Tractors

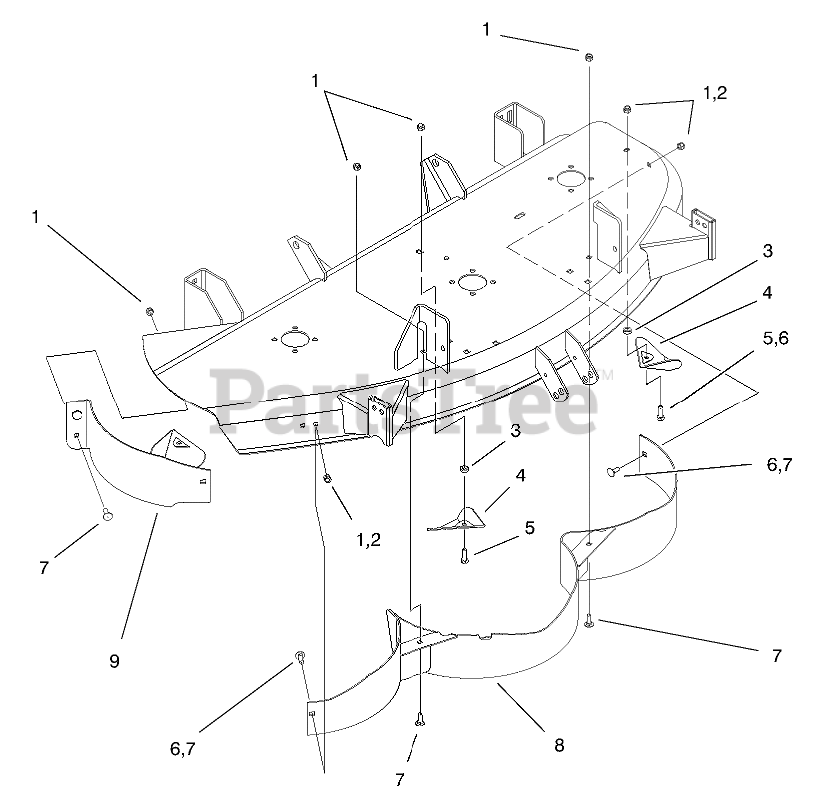

BAFFLE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

Nut-Lock (Only On: 78364)

$2.49

$

In Stock, Qty 20+

0

2

Toro 3296-29

Nut-Lock (Only On: 78363, 78448)

$2.49

$

In Stock, Qty 20+

0

3

Toro 59-4310

Spacer (Only On: 78364)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 84-5760

Plate-Kicker (Only On: 78364)

$15.99

$

Usually ships in 3-6 days

0

5

Toro 322-5

Screw-HH (Only On: 78364)

$0.99

$

In Stock, Qty 20+

0

6

Toro 3230-18

Screw-CARR (Only On: 78363, 78448)

$5.49

$

In Stock, Qty 7

0

7

Toro 3230-1

Bolt-CARR (Only On: 78364)

$1.99

$

In Stock, Qty 20+

0

8

Toro 94-9710-03

Baffle-Front (Only On: 78364)

$

$

Not available

9

Toro 94-9708-03

Baffle-Discharge (Only On: 78364)

$

$

Not available
