78361 - Toro 48" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 089000001 - 089999999) (1998) IDLER ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 300 Series GT Tractors

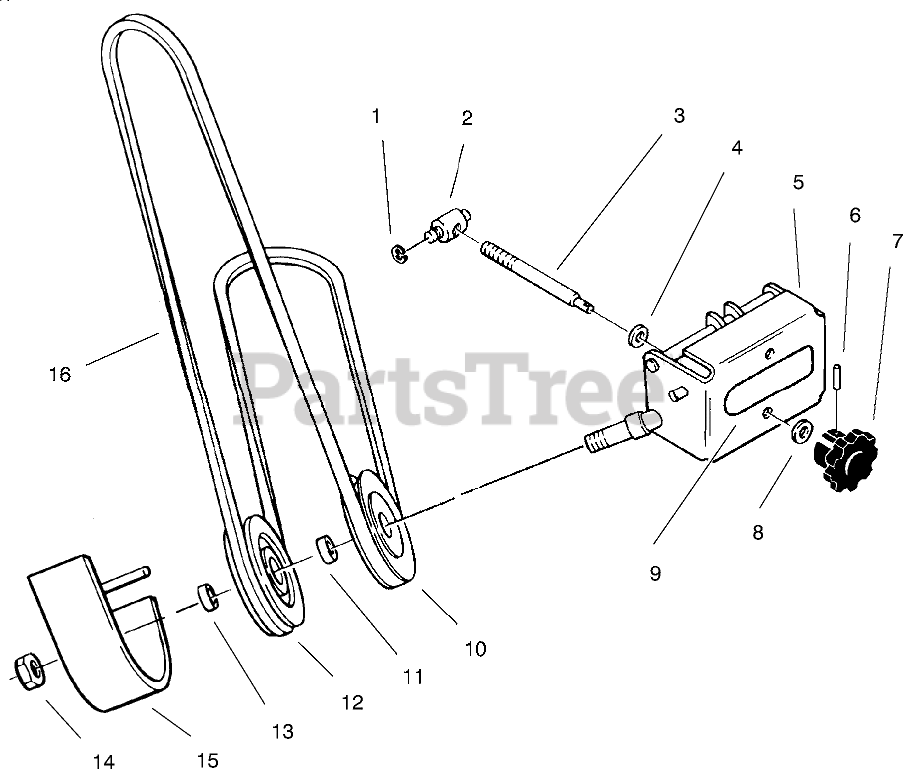

IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

2

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

3

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

5

Toro 101728-01

WA FRONT SUPPORT (RED)

$210.99

$

Usually ships in 3-6 days

0

6

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

7

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

8

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

9

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

10

Toro 92-7103

PULLEY-IDLER

$53.99

$

In Stock, only 3 left!

0

11

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

12

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

13

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

14

Toro 9150076

Nut
(Superseded to 116-7306)

$2.99

$

In Stock, Qty 20+

0

15

Toro 102582-01

COVER WA - BELT (RED)

$101.99

$

Usually ships in 3-6 days

0

16

Toro 102742

V-BELT
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

Toro 101657

Front Idler Assembly (Inc. Ref. #1-8 & 10-15)

Note: Not illustrated

$644.99

$

Usually ships in 3-6 days

0
