78361 - Toro 48" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 300 Series GT Tractors

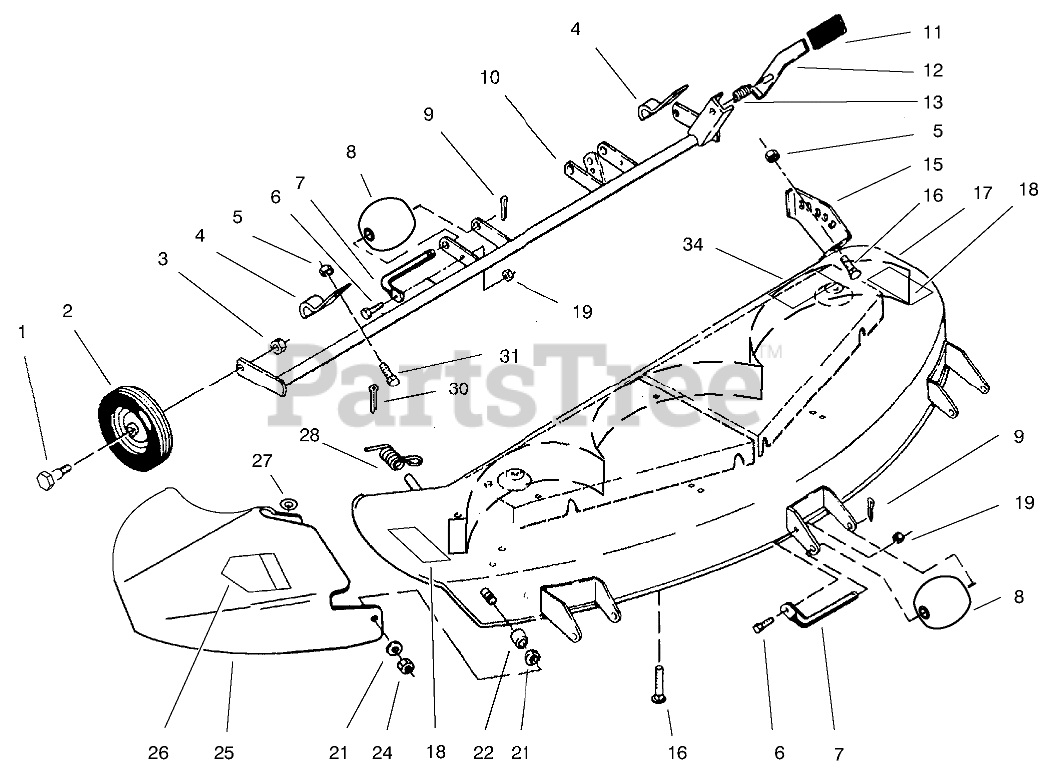

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

2

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

4

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 17

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

8

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

9

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

10

Toro 98-1738-01

WA-SUPPORT,GAGE WHL (RED)

$328.99

$

Usually ships in 3-6 days

0

11

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

12

Toro 115213-01

WLDMT-LEVER (RED)

$30.99

$

Usually ships in 3-6 days

0

13

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

15

Toro 102654-01

RH QUADRANT (RED)

$74.99

$

Usually ships in 3-6 days

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

17

Toro 94-9769-01

Deck-Assembly (Incl. Ref. #18)

$

$

Currently unavailable

18

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 15

0

22

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

24

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

25

Toro 88-2750-01

Chute Assembly (Incl. Ref. #26)
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

26

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

27

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 93-1630

SPRING-DEFLECTOR

$19.99

$

Usually ships in 3-6 days

0

30

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

31

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

34

Toro 106753

DECAL-HEIGHT & BELT

$13.99

$

Usually ships in 3-6 days

0
