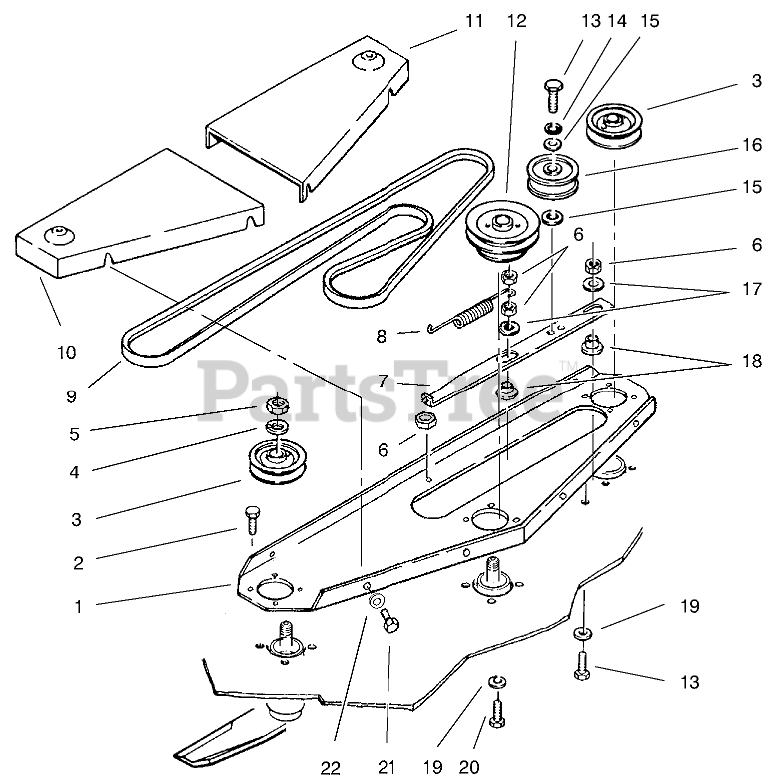

78361 - Toro 48" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 089000001 - 089999999) (1998) BELT COVER, BELT, DRIVE & IDLER PULLEYS Parts Diagram

48" Side-Discharge Mower Deck for 300 Series GT Tractors

BELT COVER, BELT, DRIVE & IDLER PULLEYS Parts Diagram

  • Title

1

Toro 94-1807-01

PLT-REINF DECK (RED)

$326.99

$

Usually ships in 3-6 days

0

2

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

3

Toro 110146

PULLEY-BLADE, DRIVE

$71.99

$

In Stock, only 1 left!

0

4

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 17

0

7

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

9

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

10

Toro 107026-01

COVER-BELT RH (RED)

$75.99

$

Usually ships in 3-6 days

0

11

Toro 107027-01

COVER-BELT LH (RED)

$75.99

$

Usually ships in 3-6 days

0

12

Toro 110147

PULLEY-MOWER, 48IN

$131.99

$

In Stock, only 3 left!

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

17

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

18

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

19

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

22

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0
