78360 - Toro 48" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) BELT & SPINDLE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck

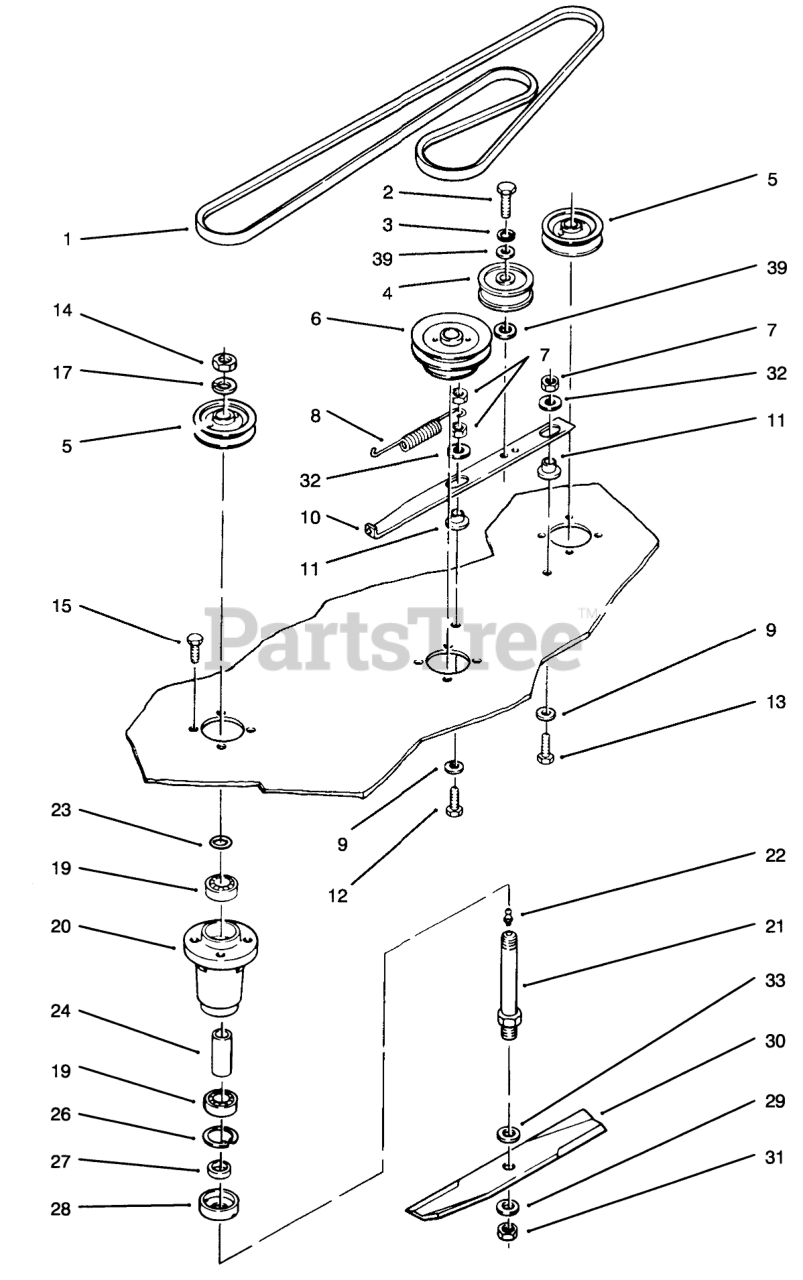

BELT & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

2

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

5

Toro 110146

PULLEY-BLADE, DRIVE

$71.99

$

In Stock, only 1 left!

0

6

Toro 110147

PULLEY-MOWER, 48IN

$131.99

$

In Stock, only 3 left!

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

17

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

21

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

24

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

30

Toro 106078

Blade
(Superseded to 106637)

$101.99

$

In Stock, only 1 left!

0

31

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

33

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

Toro 110172

Spindle Assembly (Inc. ref.# 19-28)
(Superseded to 111726)

Note: Not illustrated

$266.99

$

In Stock, Qty 5

0
