78351 - Toro 42" Rear-Discharge Mower Deck for Low Cut Mower (SN: 039000001 - 039999999) (1993) DECK & COVER ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for Low Cut Mower

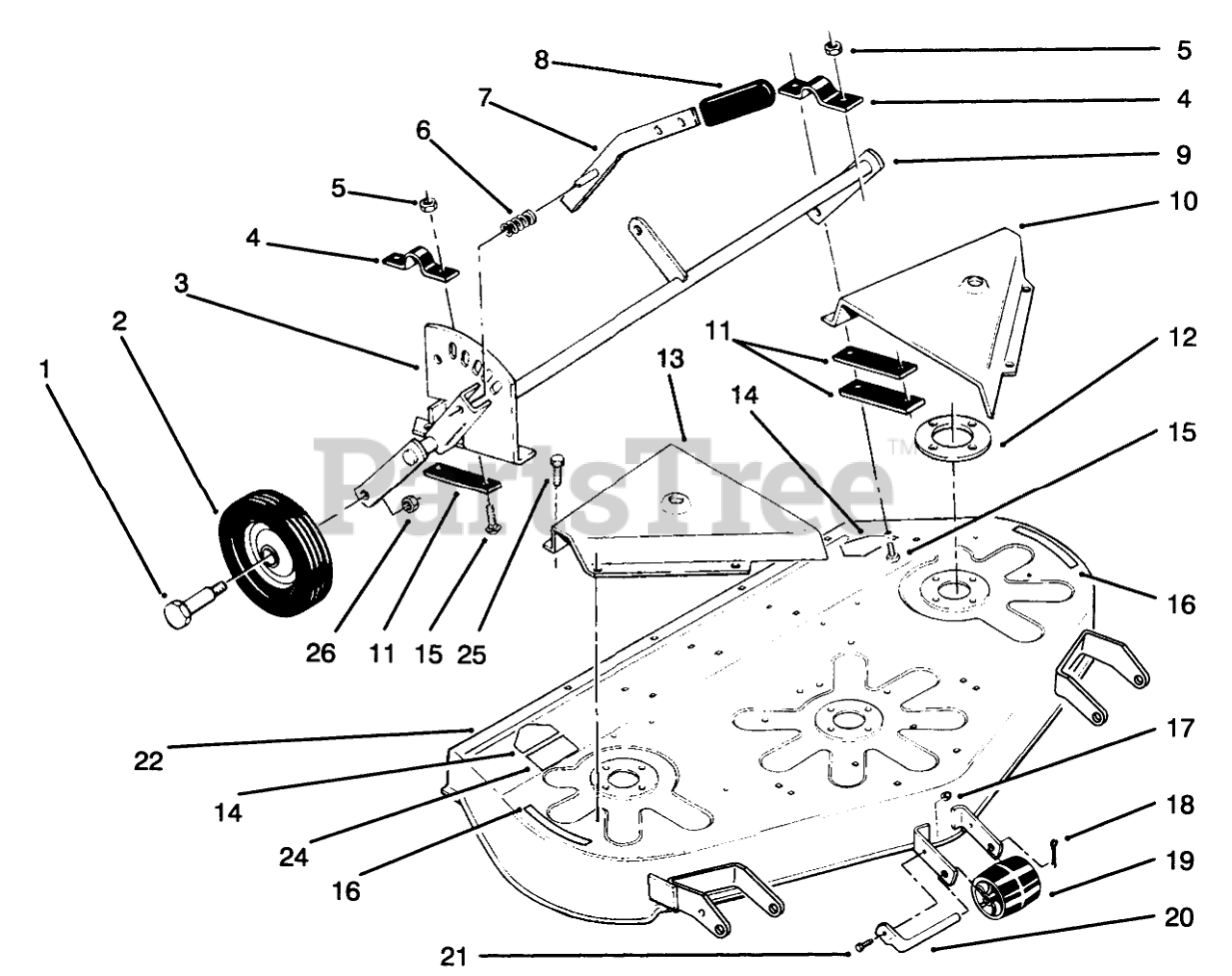

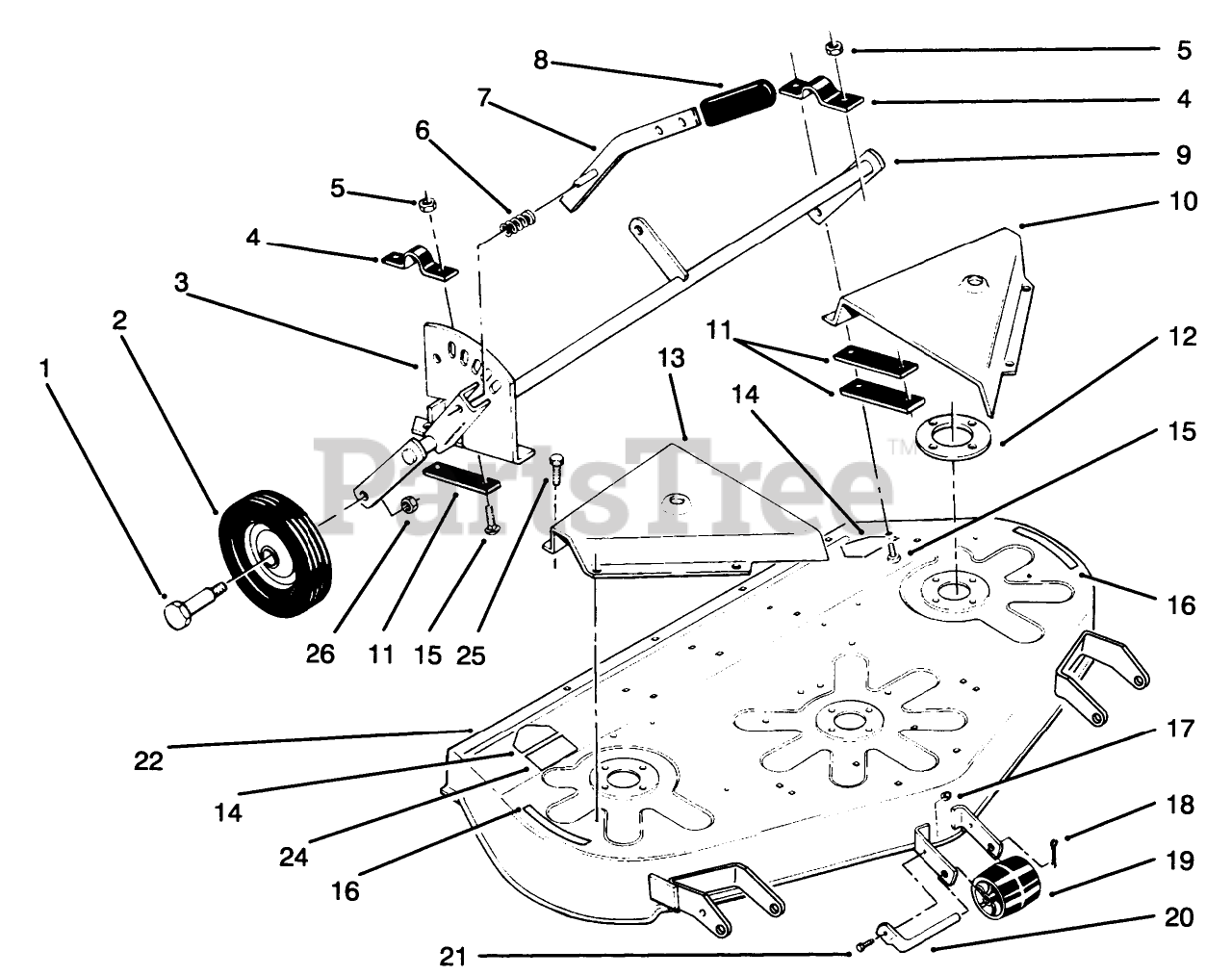

DECK & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

2

Toro 109375

WHEEL ASM

$

$

Not available

3

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

7

Toro 115213

Lever
(Superseded to 115213-01)

$30.99

$

Usually ships in 3-6 days

0

8

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

9

Toro 79-5360

Gauge-Wheel Support
(Superseded to 79-5360-01)

$190.99

$

Usually ships in 3-6 days

0

10

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$64.99

$

Usually ships in 3-6 days

0

11

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

12

Toro 106117

PLATE-SPINDLE

$20.99

$

Usually ships in 3-6 days

0

13

Toro 106409

Belt Cover RH
(Superseded to 106409-01)

$64.99

$

Usually ships in 3-6 days

0

14

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

15

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

16

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

18

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

19

Toro 109376

ROLLER ASSY

$

$

Not available

20

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 92-7292

Deck-Mower (Incl. Ref. #14 & 16)

$1713.99

$

Usually ships in 3-6 days

0

24

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

25

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

26

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
