78350 - Toro 42" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 200000001 - 200999999) (2000) SUSPENSION ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for 300 Series GT Tractors

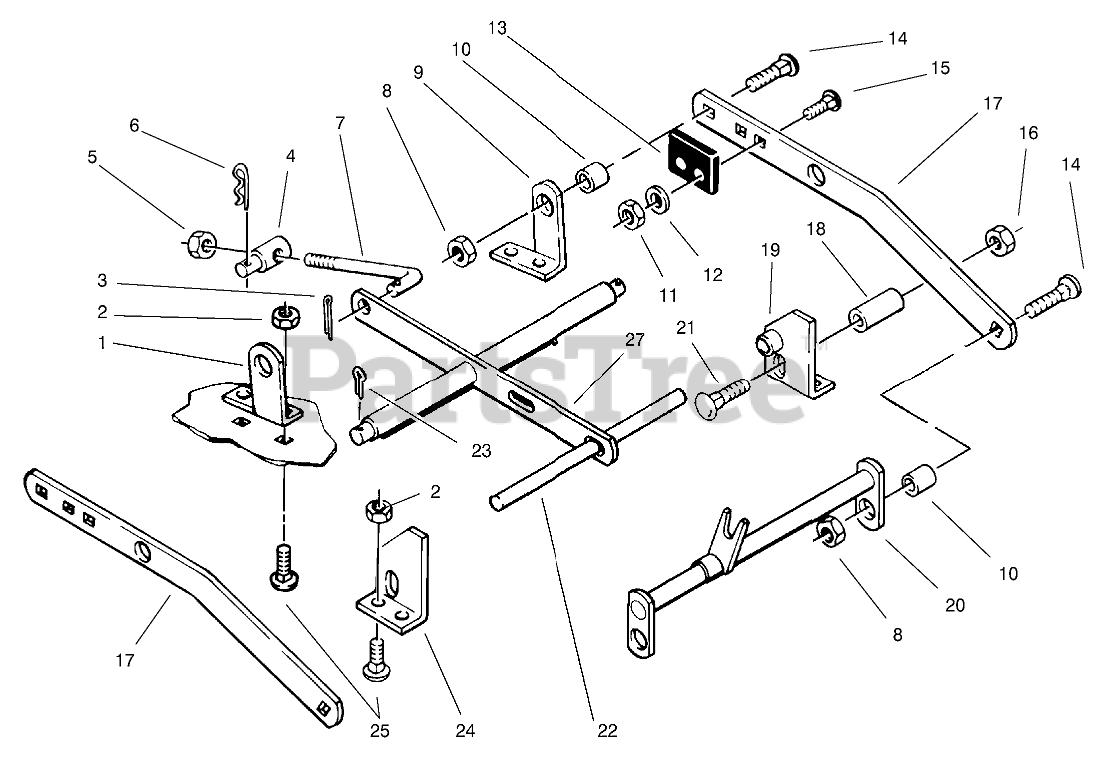

SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 107512-01

RH BRKT-DECK REAR (RED)

$46.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

4

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

7

Toro 101828

ROD-LEVEL ADJUST

$28.99

$

In Stock, only 1 left!

0

8

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

9

Toro 107511-01

LH BRKT-DECK REAR (RED)

$46.99

$

Usually ships in 3-6 days

0

10

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 101777-01

BAR DRAFT (RED)

$100.99

$

Usually ships in 3-6 days

0

18

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

19

Toro 102567-01

WA BRACKET FT L (RED)

$61.99

$

Usually ships in 3-6 days

0

20

Toro 101758-01

WA HITCH (RED)

$131.99

$

In Stock, only 1 left!

0

21

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

22

Toro 102570-01

SHAFT FRONT (RED)
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

24

Toro 102566-01

WA BRACKET FT R (RED)

$61.99

$

Usually ships in 3-6 days

0

25

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

27

Toro 110268-01

LEVELER WA (RED)

$128.99

$

Usually ships in 3-6 days

0
