78350 - Toro 42" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 099000001 - 099999999) (1999) DECK DRIVE BELT ATTACHMENT Parts Diagram

42" Rear-Discharge Mower Deck for 300 Series GT Tractors

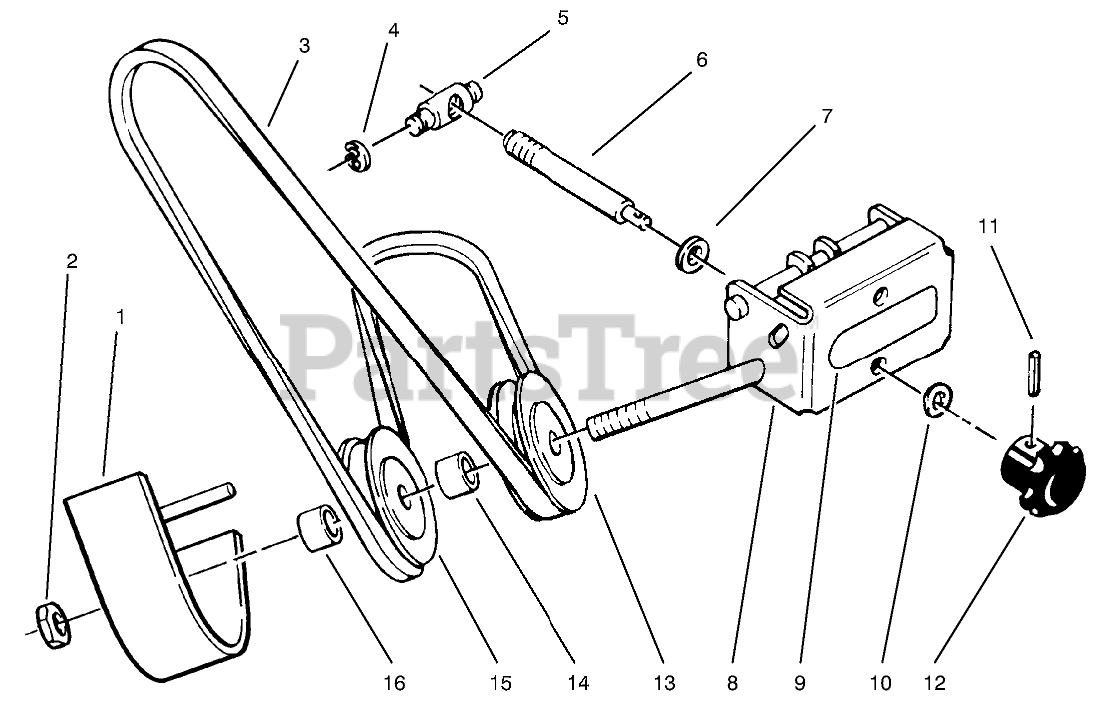

DECK DRIVE BELT ATTACHMENT Parts Diagram

  • Title

1

Toro 102582-01

COVER WA - BELT (RED)

$101.99

$

Usually ships in 3-6 days

0

2

Toro 9150076

Nut
(Superseded to 116-7306)

$2.99

$

In Stock, Qty 10

0

3

Toro 108834

V-BELT

$36.99

$

In Stock, only 1 left!

0

4

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

5

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

6

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 101728-01

WA FRONT SUPPORT (RED)

$210.99

$

Usually ships in 3-6 days

0

9

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

10

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

11

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

12

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

13

Toro 92-7103

PULLEY-IDLER

$53.99

$

In Stock, only 3 left!

0

14

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

15

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

16

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

Toro 101657

Idler Assembly-Front (Incl. Ref. #1, 2, 4-8 & 10-16)

Note: Not illustrated

$644.99

$

Usually ships in 3-6 days

0
