78347 - Toro 42" Side-Discharge Mower Deck for Low Cut Mower (SN: 079000001 - 079999999) (1997) DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for Low Cut Mower

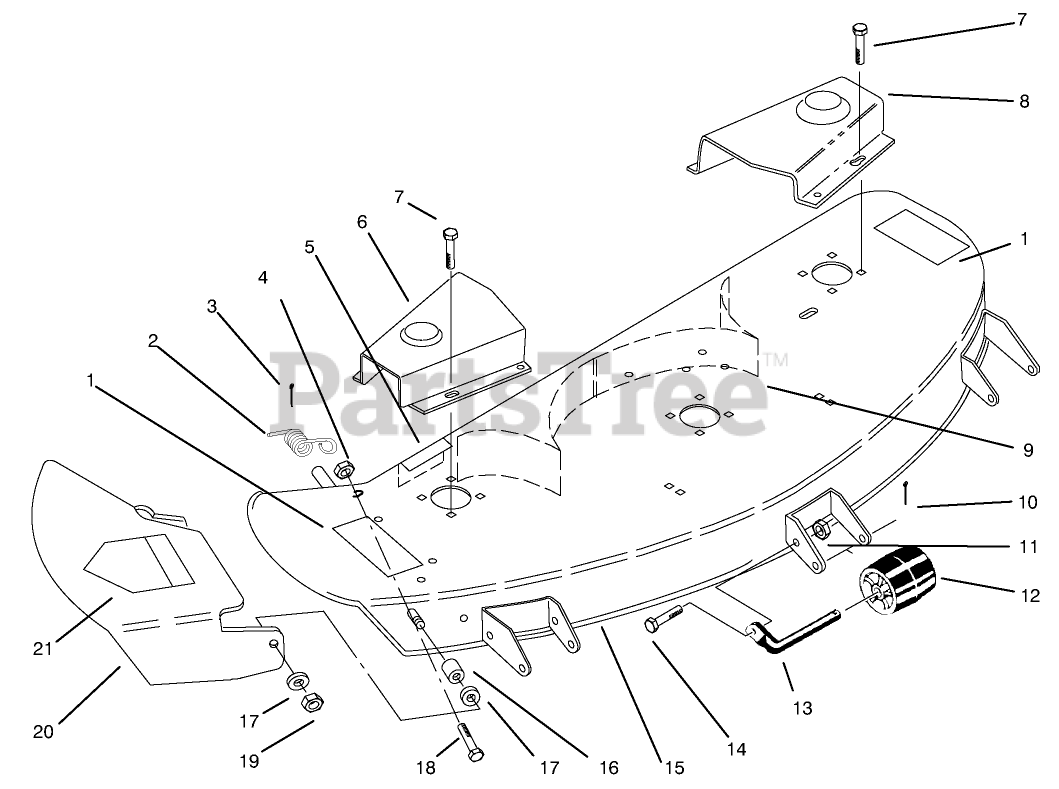

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7317

DECAL-DANGER

$

$

Not available

2

Toro 93-1631

SPRING-DEFLECTOR

$30.99

$

Usually ships in 3-6 days

0

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

5

Toro 93-7843

Decal-Height & Belt

$

$

Currently unavailable

6

Toro 107028

Belt Cover RH
(Superseded to 107028-01)

$100.99

$

Usually ships in 3-6 days

0

7

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

8

Toro 107029

Belt Cover LH
(Superseded to 107029-01)

$100.99

$

Usually ships in 3-6 days

0

9

Toro 115062

BAFFLE-DECK R.H.

$128.99

$

Usually ships in 3-6 days

0

Toro 115063

BAFFLE-DECK L.H.

$69.99

$

Usually ships in 3-6 days

0

10

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 109376

ROLLER ASSY

$

$

Not available

13

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 94-1835

Deck-Mower (Incl. Ref. #1)

$

$

Not available

16

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

17

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

18

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

19

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

20

Toro 94-1836

Extension-Chute (Incl. Ref. #21)
(Superseded to 99-3707)

$

$

Not available

21

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0
