78347 - Toro 42" Side-Discharge Mower Deck for Low Cut Mower (SN: 069000001 - 069999999) (1996) DECK SUSPENSION Parts Diagram

42" Side-Discharge Mower Deck for Low Cut Mower

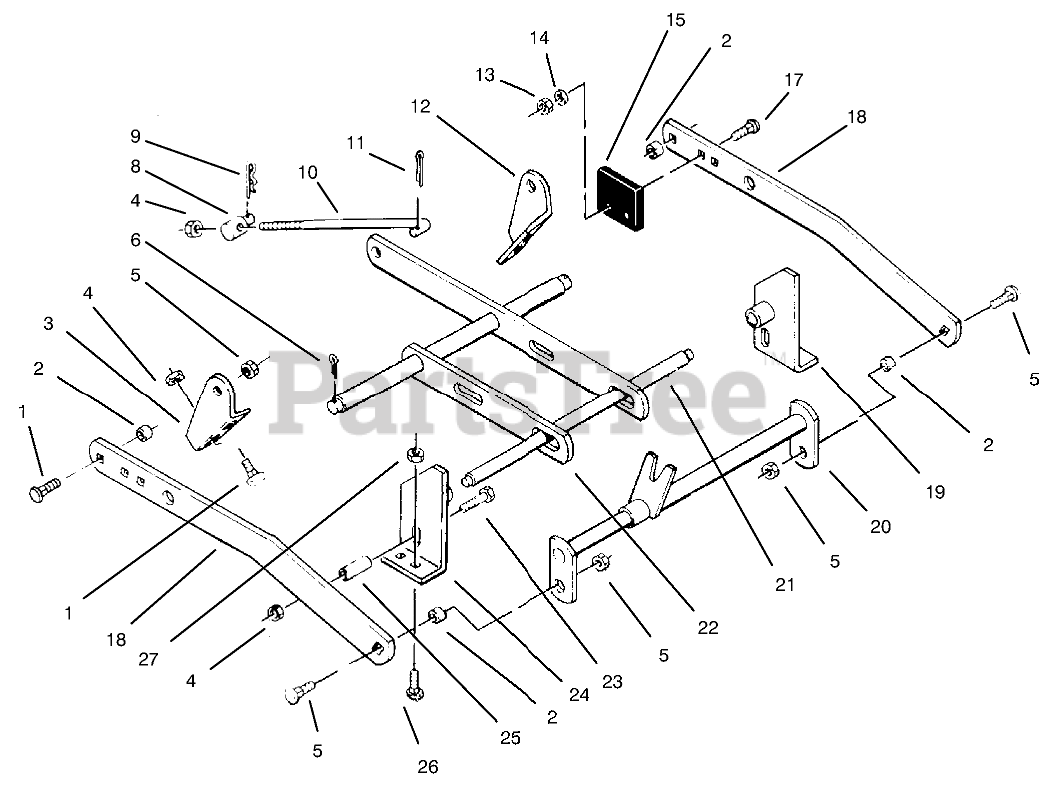

DECK SUSPENSION Parts Diagram

  • Title

1

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

2

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

3

Toro 102430

Bracket-Rt. Rear
(Superseded to 102430-01)

$42.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

5

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

8

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

9

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

10

Toro 92-9841

LIFT ROD

$45.99

$

In Stock, only 2 left!

0

11

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

12

Toro 102429

Bracket-L.H. Rear
(Superseded to 102429-01)

$42.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

19

Toro 102575

Bracket-L.H.
(Superseded to 102575-01)

$67.99

$

Usually ships in 3-6 days

0

20

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

21

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

22

Toro 110269

Leveler
(Superseded to 92-0981-03)

$195.99

$

Usually ships in 3-6 days

0

23

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

24

Toro 102574

Bracket-R.H.
(Superseded to 102574-01)

$67.99

$

Usually ships in 3-6 days

0

25

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

26

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

27

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
