78346 - Toro 42" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

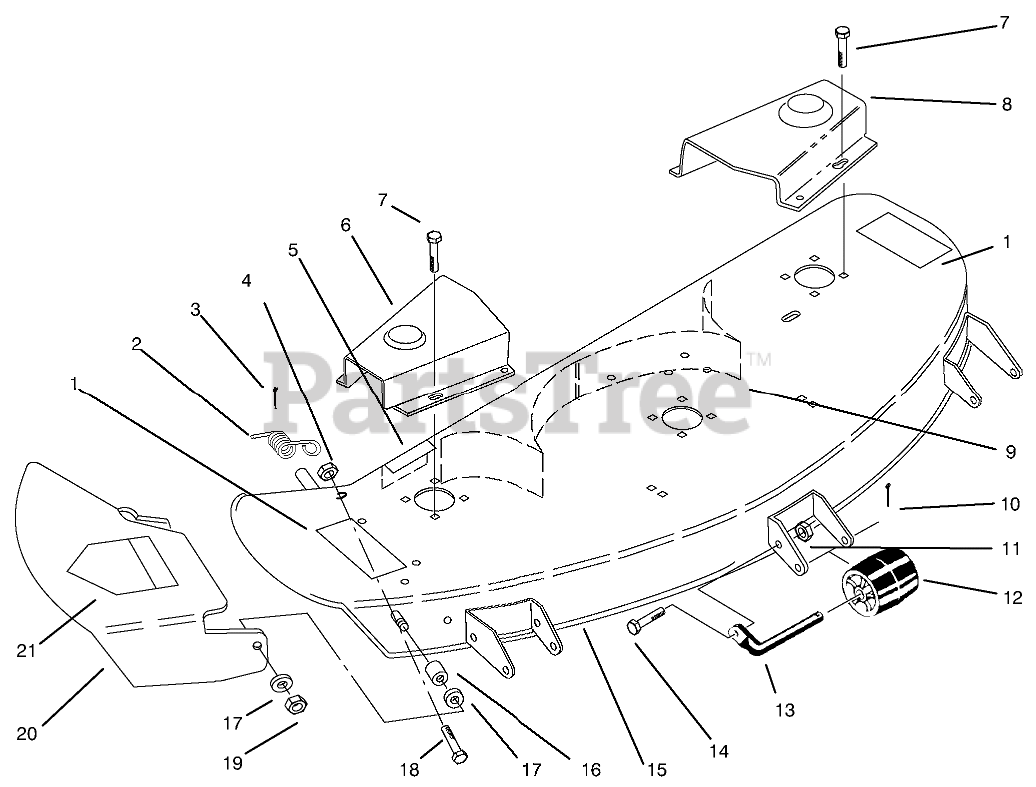

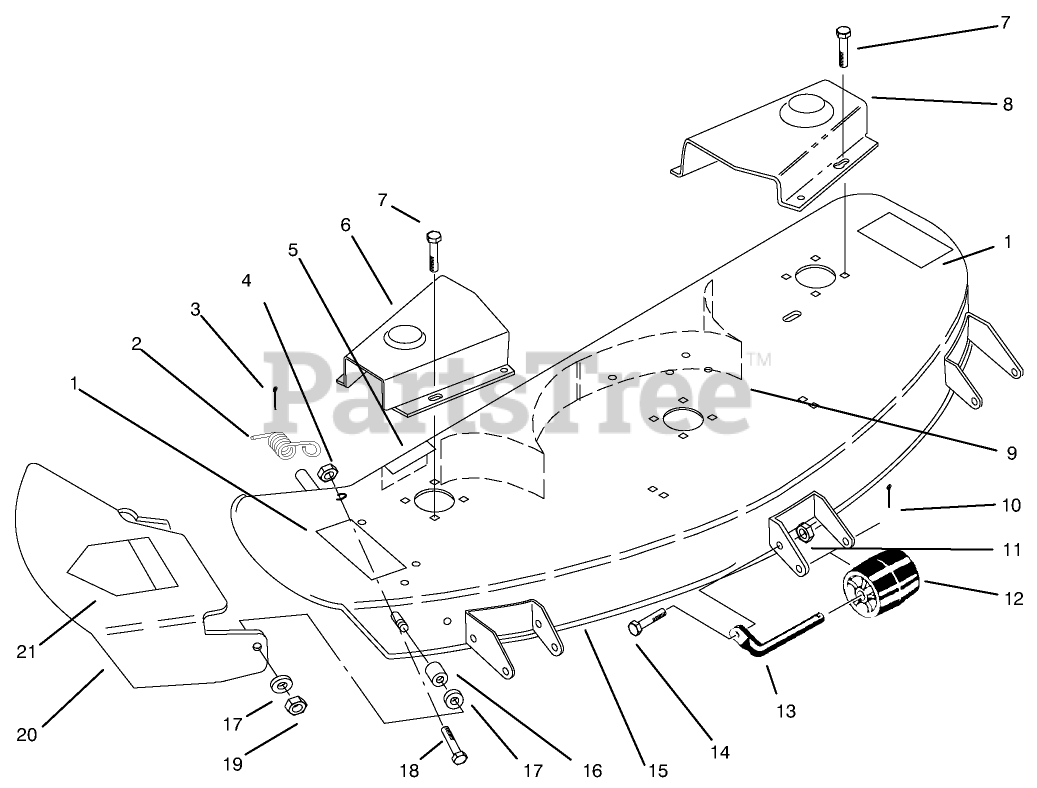

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7108

Decal-Danger

$

$

Currently unavailable

2

Toro 93-1631

SPRING-DEFLECTOR

$29.99

$

Usually ships in 3-6 days

0

3

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 106748

DECAL-HEIGHT & BELT

$10.99

$

In Stock, only 1 left!

0

6

Toro 107028

Belt Cover RH
(Superseded to 107028-01)

$96.99

$

Usually ships in 3-6 days

0

7

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

8

Toro 107029

Belt Cover LH
(Superseded to 107029-01)

$97.99

$

Usually ships in 3-6 days

0

9

Toro 115062

BAFFLE-DECK R.H.

$124.99

$

Usually ships in 3-6 days

0

Toro 115063

BAFFLE-DECK L.H.

$67.99

$

Usually ships in 3-6 days

0

10

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 109376

ROLLER ASSY

$

$

Not available

13

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 88-2740

Deck-Mower (Incl. Ref. #1)
(Superseded to 88-2730)

$1959.99

$

In Stock, only 1 left!

0

16

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

17

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 15

0

18

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

19

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

20

Toro 88-2750

Extension-Chute (Incl. Ref. #21)
(Superseded to 99-3708)

$263.99

$

Usually ships in 3-6 days

0

21

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0
