78346 - Toro 42" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) SUSPENSION ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

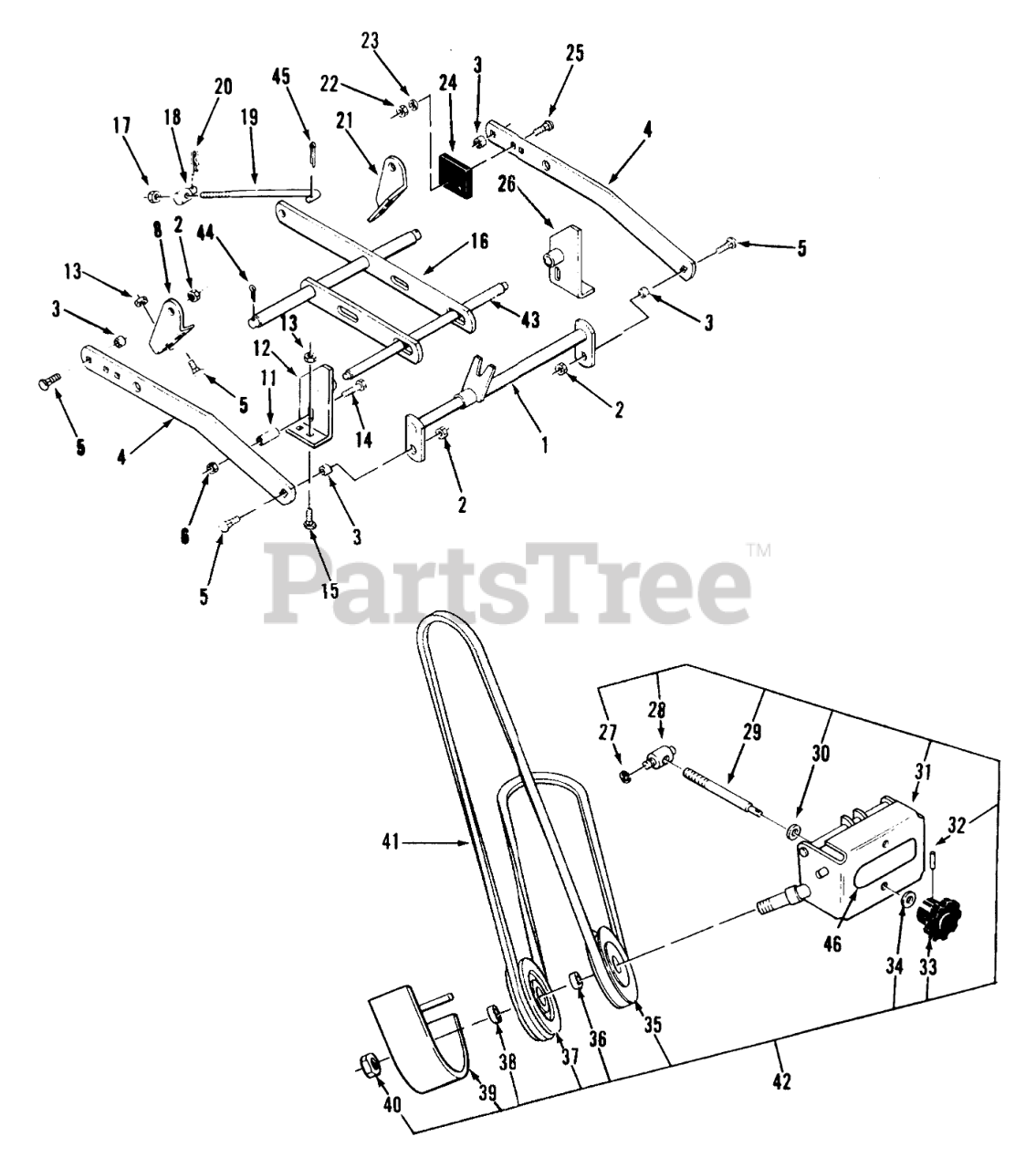

SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

4

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

8

Toro 102430

Bracket-Rt. Rear
(Superseded to 102430-01)

$42.99

$

Usually ships in 3-6 days

0

11

Toro 979360

USE 979360P SPACER
(Superseded to 9793604)

$12.99

$

Usually ships in 3-6 days

0

12

Toro 102574

Bracket-R.H.
(Superseded to 102574-01)

$67.99

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 110269

Leveler
(Superseded to 92-0981-03)

$195.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

19

Toro 88-2720

Rod-Lift
(Superseded to 92-9841)

$45.99

$

In Stock, only 2 left!

0

20

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

21

Toro 102429

Bracket-L.H. Rear
(Superseded to 102429-01)

$42.99

$

Usually ships in 3-6 days

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

25

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 102575

Bracket-L.H.
(Superseded to 102575-01)

$67.99

$

Usually ships in 3-6 days

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

29

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 101728

Front Support
(Superseded to 101728-01)

$210.99

$

Usually ships in 3-6 days

0

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

33

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

34

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

35

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

36

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

37

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

38

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

39

Toro 102582

Belt Cover
(Superseded to 102582-01)

$101.99

$

Usually ships in 3-6 days

0

40

Toro 9150076

Nut
(Superseded to 116-7306)

$2.99

$

In Stock, Qty 20+

0

41

Toro 102742

V-BELT
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

42

Toro 101657

Front Idler Assembly (Incl. Ref. #27-40, & 46)

$644.99

$

Usually ships in 3-6 days

0

43

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

44

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

45

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

46

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available
