78345 - Toro 42" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 270000001 - 270999999) (2007) CUTTING UNIT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 300 Series GT Tractors

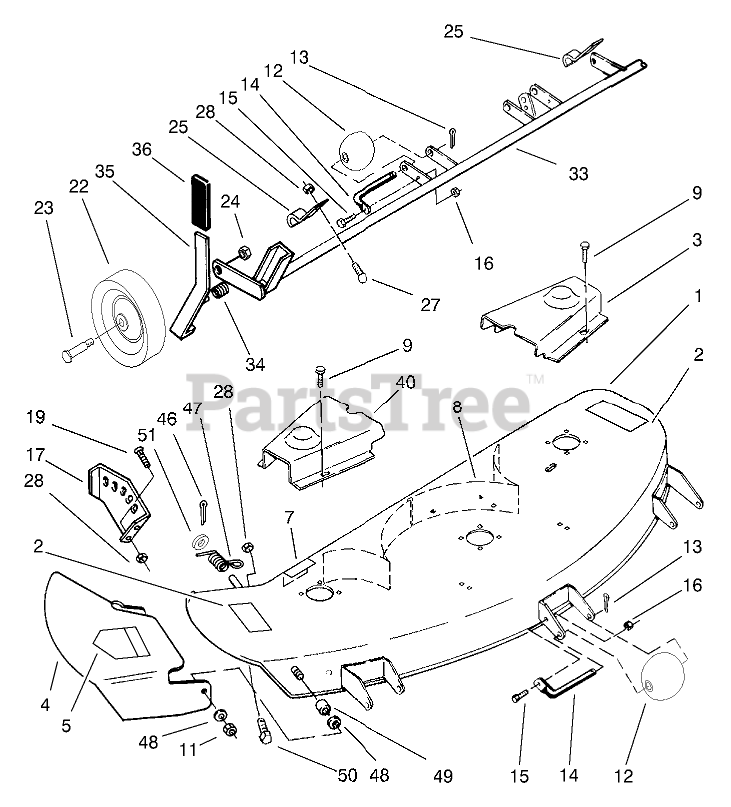

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title
1

Toro 88-2740

Deck-Assembly (Incl. Ref. #2 & 8)
(Superseded to 88-2730)

$2115.99

$

In Stock, only 1 left!

0

2

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

3

Toro 107029-01

COVER-BLADE (RED)

$100.99

$

Usually ships in 3-6 days

0

4

Toro 99-3708

Chute Assembly (Incl. Ref. #5)

$271.99

$

Usually ships in 3-6 days

0

5

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

7

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

8

Toro 115062

BAFFLE-DECK R.H.

$128.99

$

Usually ships in 3-6 days

0

Toro 115063

BAFFLE-DECK L.H.

$69.99

$

Usually ships in 3-6 days

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

11

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

12

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

13

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

14

Toro 110847-03

Shaft-Roller
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

17

Toro 102654-01

RH QUADRANT (RED)

$74.99

$

Usually ships in 3-6 days

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Toro 92-6959

WHEEL

$55.99

$

Usually ships in 3-6 days

0

23

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

25

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

33

Toro 98-1732-01

WA-SUPPORT, GAGE WHL (RED)
(Superseded to 119-3329-01)

$365.99

$

Usually ships in 3-6 days

0

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

35

Toro 115229-01

WELDMENT-LEVER (RED)

$58.99

$

Usually ships in 3-6 days

0

36

$9.49

$

In Stock, only 1 left!

0

40

Toro 107028-01

COVER-BELT, RH

$100.99

$

Usually ships in 3-6 days

0

46

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

47

Toro 93-1631

SPRING-DEFLECTOR

$30.99

$

Usually ships in 3-6 days

0

48

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

49

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

50

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

51

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
