78345 - Toro 42" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 200000001 - 200999999) (2000) LIFT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 300 Series GT Tractors

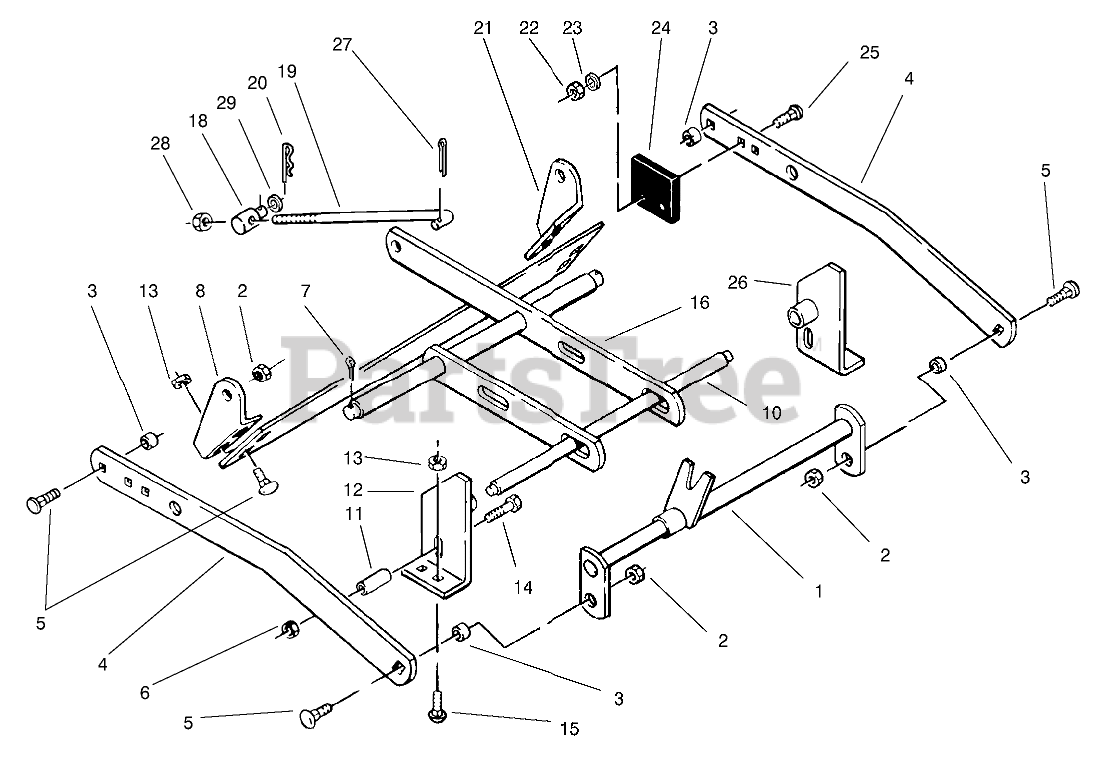

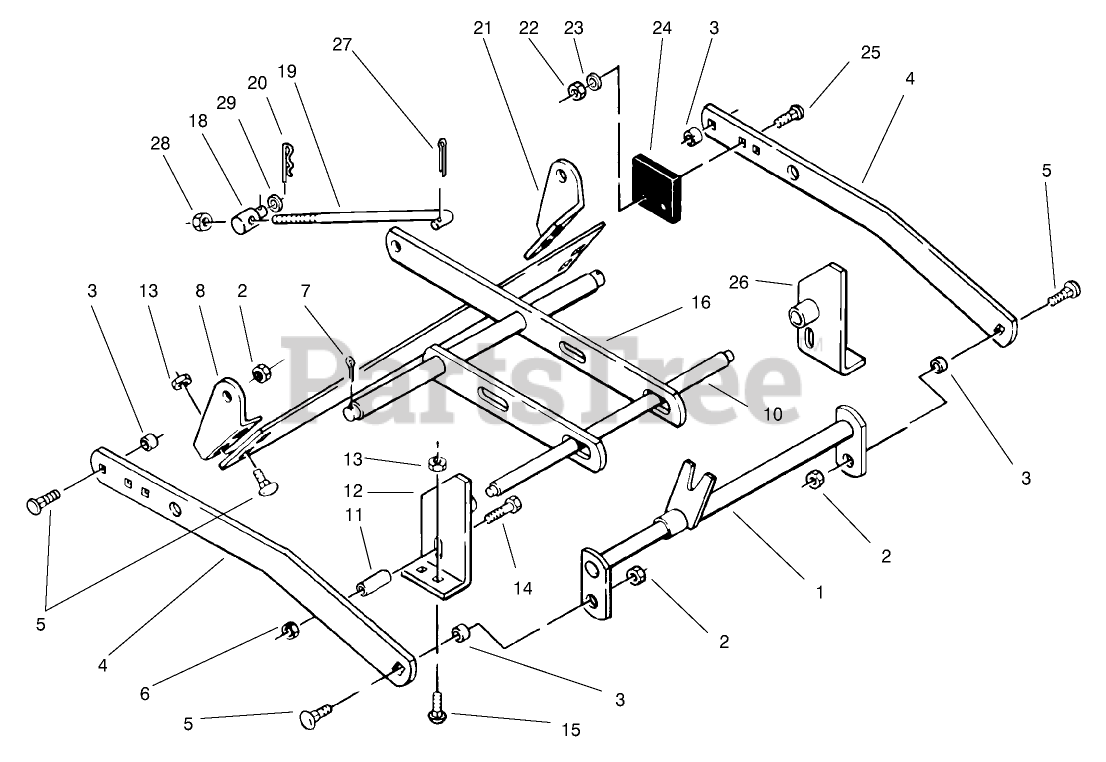

LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 101758-01

WA HITCH (RED)

$131.99

$

In Stock, only 1 left!

0

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

4

Toro 101777-01

BAR DRAFT (RED)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

8

Toro 102430-01

DCK BRKT R (RED)

$42.99

$

Usually ships in 3-6 days

0

10

Toro 102570-01

SHAFT FRONT (RED)
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

11

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

12

Toro 102574-01

WA-RH FRT DK BRK (RED)

$67.99

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 98-1734-01

WA-LEVELER BAR (RED)

$139.99

$

Usually ships in 3-6 days

0

18

Toro 94-7802

TRUNNION

$39.99

$

Usually ships in 3-6 days

0

19

Toro 98-1736

LIFT ROD

$115.99

$

Usually ships in 3-6 days

0

20

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

21

Toro 102429-01

DCK BRKT L (RED)

$42.99

$

Usually ships in 3-6 days

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

25

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 102575-01

WA-LH FRT DK BRK (RED)

$67.99

$

Usually ships in 3-6 days

0

27

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
