78345 - Toro 42" Side-Discharge Mower Deck for 300 Series GT Tractors (SN: 039000001 - 039999999) (1993) CUTTING UNIT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 300 Series GT Tractors

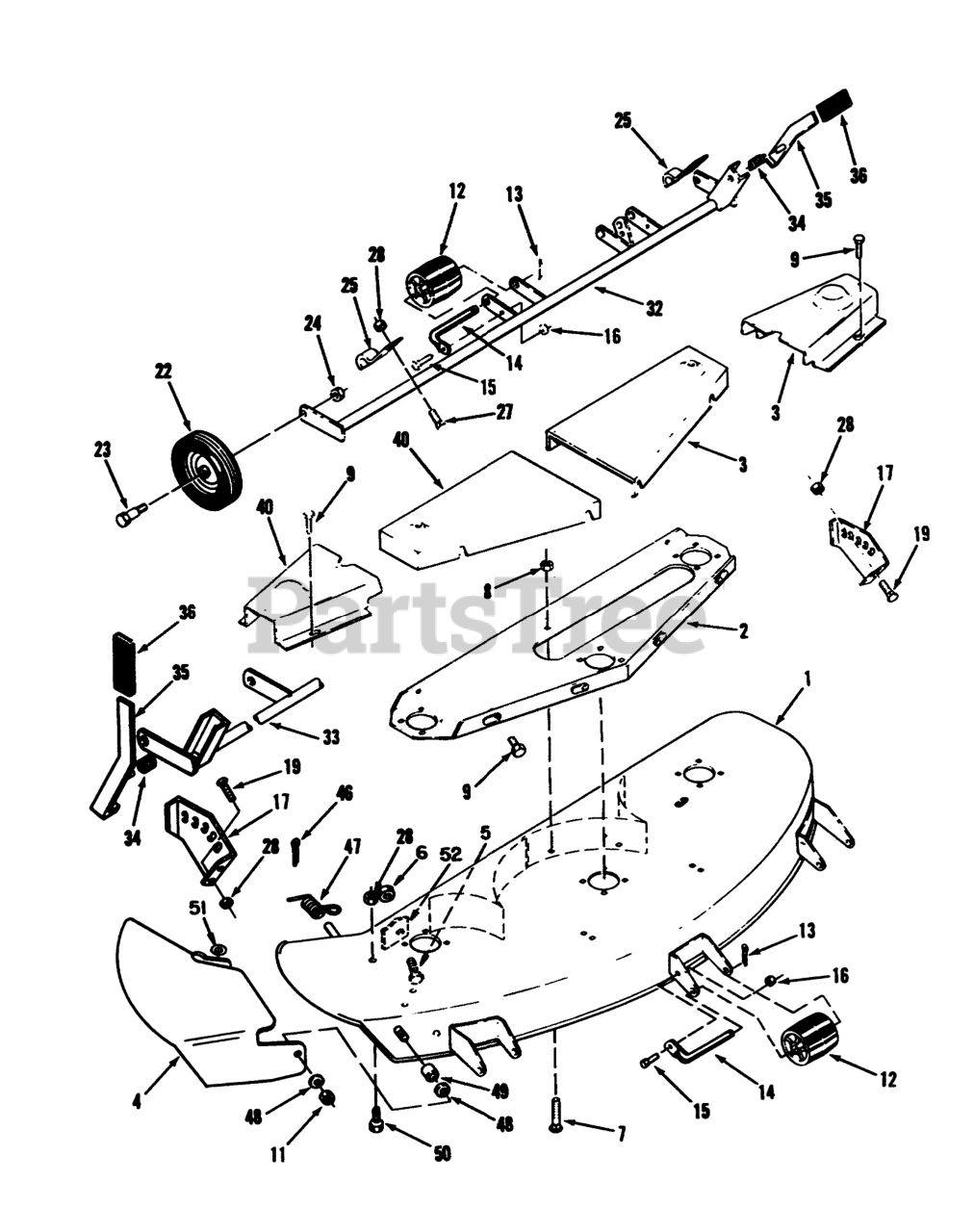

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 117298

Mower Deck 15-48SC02
(Superseded to 94-9769)

$2279.99

$

Usually ships in 3-6 days

0

Toro 117128

Deck-Mower
(Superseded to 88-2730)

$2115.99

$

In Stock, only 1 left!

0

2

Toro 107030

Channel
(Superseded to 94-1807-01)

$326.99

$

Usually ships in 3-6 days

0

3

Toro 107027

Belt Cover LH
(Superseded to 107027-01)

$75.99

$

Usually ships in 3-6 days

0

Toro 107029

Belt Cover LH
(Superseded to 107029-01)

$100.99

$

Usually ships in 3-6 days

0

4

Toro 115994

Chute Extension
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

11

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

12

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

13

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

14

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

17

Toro 102654

Quadrant
(Superseded to 102654-01)

$74.99

$

Usually ships in 3-6 days

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

23

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

25

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

32

Toro 119750

Support-Gage Wheel
(Superseded to 119750-01)

$

$

Not available

33

Toro 115064

Support-Gage Wheel
(Superseded to 115064-01)

$

$

Not available

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

35

Toro 115213

Lever
(Superseded to 115213-01)

$30.99

$

Usually ships in 3-6 days

0

Toro 115229

Lever
(Superseded to 115229-01)

$58.99

$

Usually ships in 3-6 days

0

36

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

40

Toro 107026

Belt Cover RH
(Superseded to 107026-01)

$75.99

$

Usually ships in 3-6 days

0

Toro 107028

Belt Cover RH
(Superseded to 107028-01)

$100.99

$

Usually ships in 3-6 days

0

46

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

47

Toro 116081

Spring
(Superseded to 93-1630)

$19.99

$

Usually ships in 3-6 days

0

Toro 116082

Spring
(Superseded to 93-1631)

$30.99

$

Usually ships in 3-6 days

0

48

Toro 116083

Washer
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

49

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

50

Toro 323-24

Bolt
(Superseded to 01-178-0672)

$

$

Not available

51

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 116189

Guard-Chute
(Superseded to 93-1610-01)

$

$

Not available
