78315 - Toro 37" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) DECK ASSEMBLY Parts Diagram

37" Side-Discharge Mower Deck

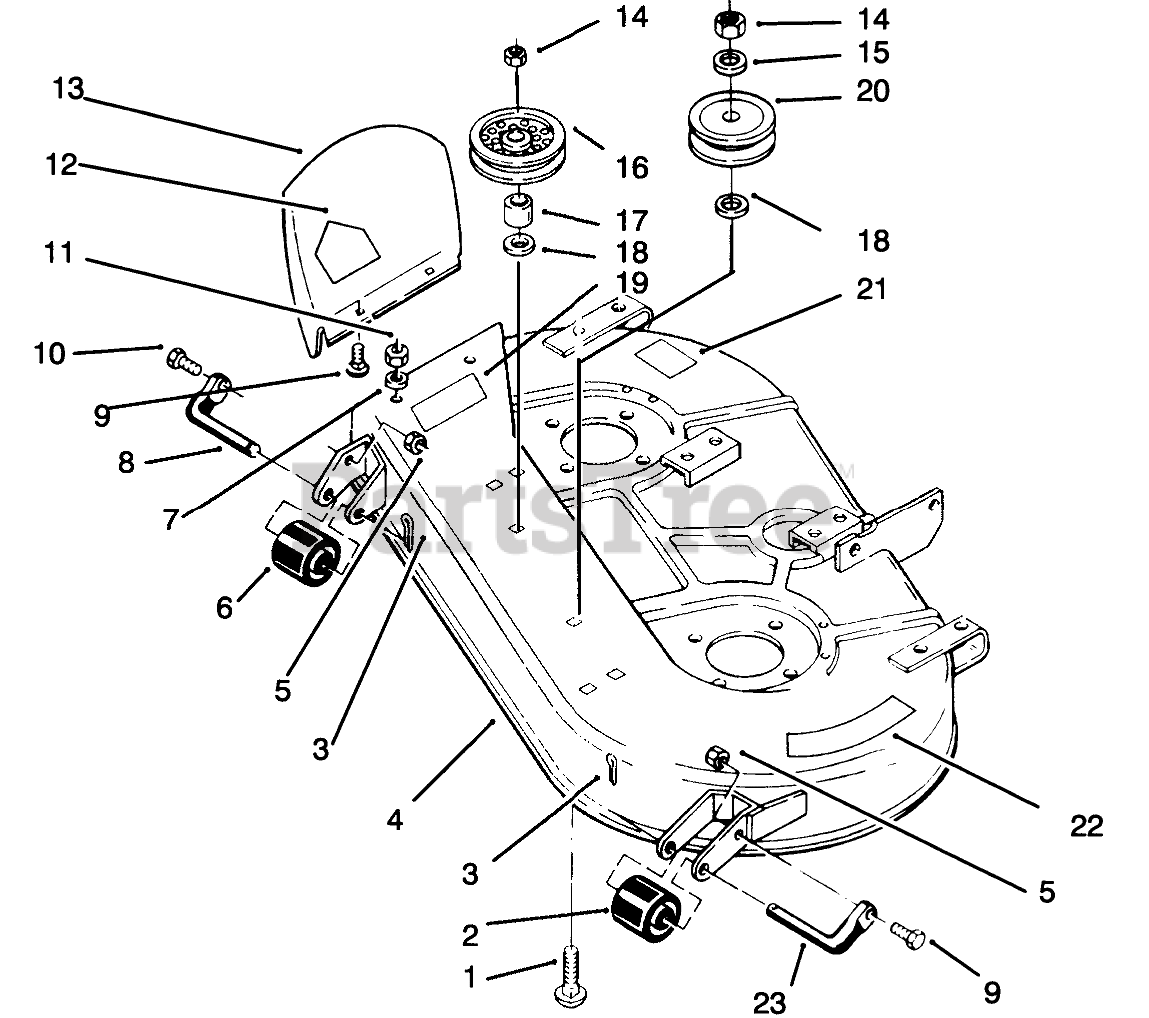

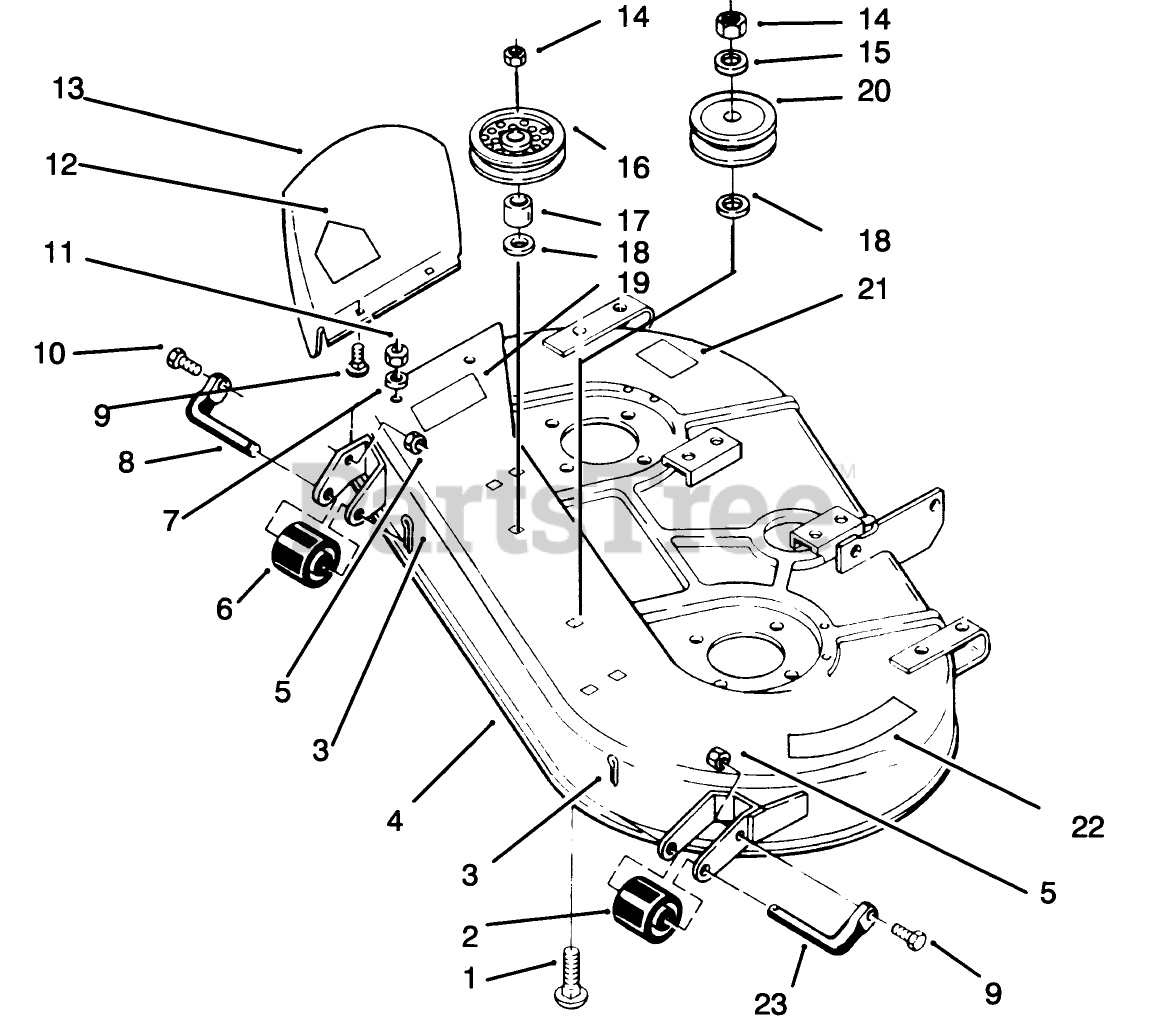

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

2

Toro 111173

ROLLER

$32.99

$

In Stock, only 2 left!

0

3

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

4

Toro 92-7289

Deck-Mower (Incl. Ref. #19 & 22)

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, Qty 5

0

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

13

Toro 92-7290

Extension-Chute (Incl.Ref. #12)

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 119130

PULLEY-FLAT IDLER B
(Superseded to 119130-03)

$224.99

$

Usually ships in 3-6 days

0

17

Toro 115760

SPACER

$

$

Not available

18

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

20

Toro 112791

PULLEY-IDLER

$91.99

$

In Stock, only 4 left!

0

21

Toro 111769

DECAL BELT INSTALLAT

$

$

Not available

22

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 111174

SHAFT-ROLLER
(Superseded to 111174-03)

$43.99

$

In Stock, only 1 left!

0
