78315 - Toro 37" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) DECK CARRIER ASSEMBLY Parts Diagram

37" Side-Discharge Mower Deck

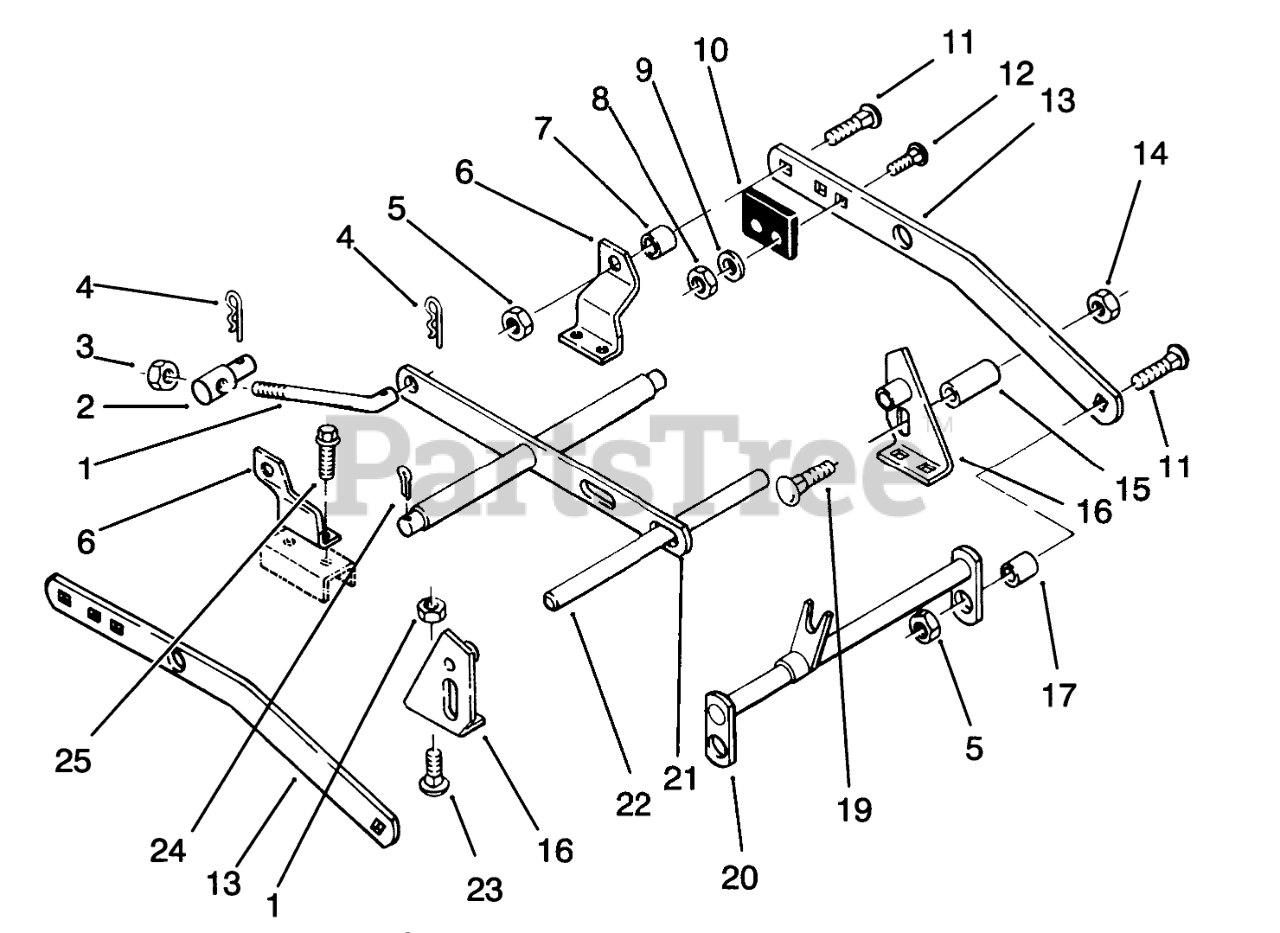

DECK CARRIER ASSEMBLY Parts Diagram

  • Title

1

Toro 88-2720

Rod-Lift
(Superseded to 92-9841)

$45.99

$

In Stock, only 2 left!

0

2

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

3

Toro 915633

Nut

$

$

Currently unavailable

4

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

5

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

6

Toro 111175

Bracket-Rear Deck
(Superseded to 111175-01)

$

$

Not available

7

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

11

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

12

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

13

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

14

Toro 9156644

Nut

$

$

Currently unavailable

15

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

16

Toro 111176

BRKT-FRNT DCKR
(Superseded to 111176-01)

$

$

Not available

17

Toro 979360

USE 979360P SPACER
(Superseded to 9793604)

$12.99

$

Usually ships in 3-6 days

0

19

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

21

Toro 110268

Leveler
(Superseded to 110268-01)

$128.99

$

Usually ships in 3-6 days

0

22

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

23

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

24

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

25

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0
