78315 - Toro 37" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) DECK ASSEMBLY Parts Diagram

37" Side-Discharge Mower Deck

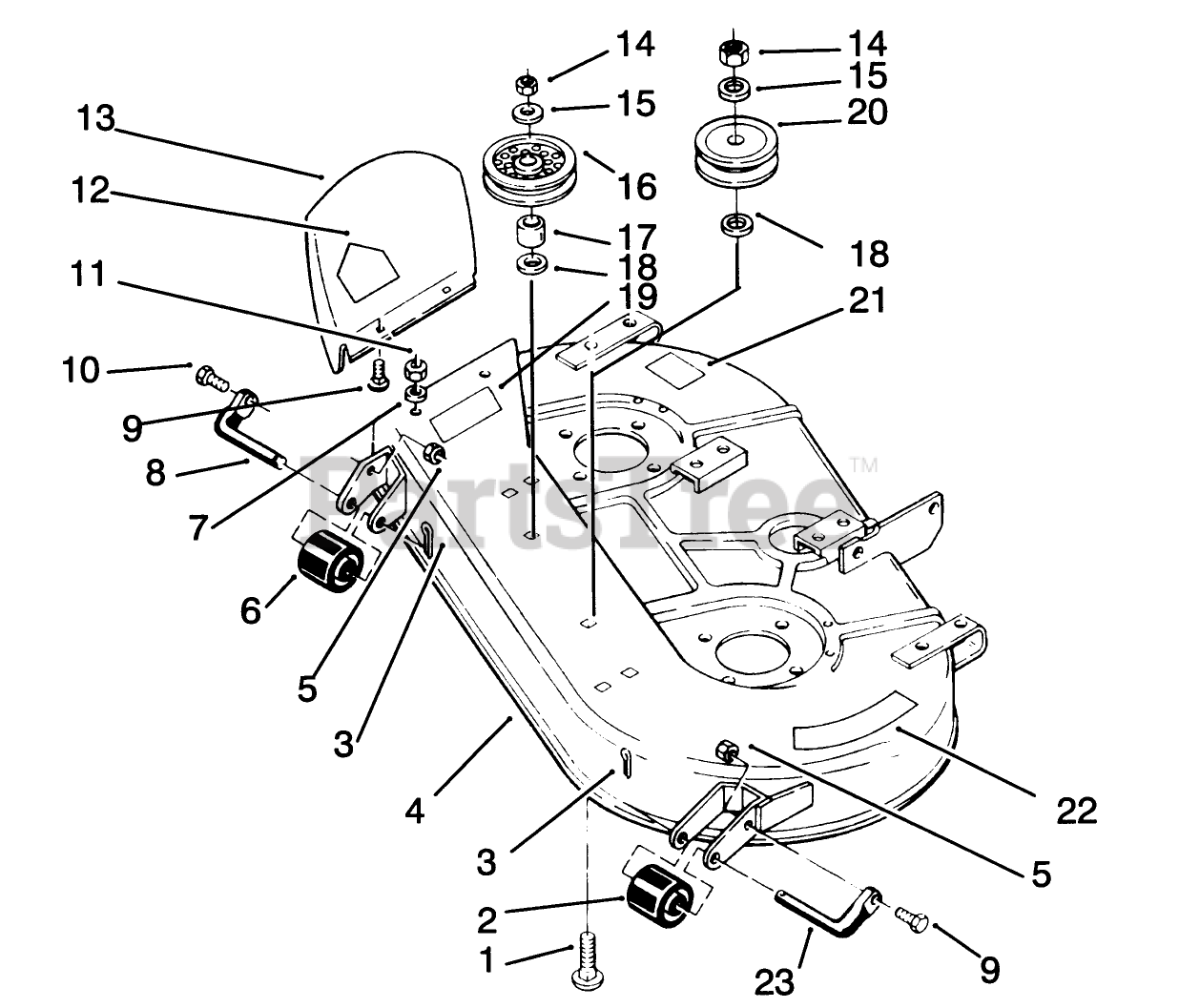

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

2

Toro 111173

ROLLER

$32.99

$

In Stock, only 2 left!

0

3

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

4

Toro 92-7289

Deck-Mower (Incl. Ref. #19 & 22)

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, Qty 5

0

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

13

Toro 92-7290

Extension-Chute (Incl. Ref. #12)

$

$

Not available

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 119130

PULLEY-FLAT IDLER B
(Superseded to 119130-03)

$224.99

$

Usually ships in 3-6 days

0

17

Toro 115760

SPACER

$

$

Not available

18

Toro 900041

Washer
(Superseded to 3230-5)

$0.99

$

In Stock, Qty 20+

0

19

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

20

Toro 112791

PULLEY-IDLER

$91.99

$

In Stock, only 4 left!

0

21

Toro 111769

DECAL BELT INSTALLAT

$

$

Not available

22

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 111174

SHAFT-ROLLER
(Superseded to 111174-03)

$43.99

$

In Stock, only 1 left!

0

1

Toro 110506

WHEEL

$42.99

$

In Stock, Qty 10

0

2

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

3

$2.49

$

Usually ships in 3-6 days

0

4

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

5

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

6

Toro 9267164

BOLT 3/8-16X7/8

$

$

Not available

7

$8.99

$

Usually ships in 3-6 days

0

8

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

In Stock, only 1 left!

0

9

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

10

Toro 111172

Gage Wheel Support RH
(Superseded to 111172-01)

$

$

Not available

11

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

12

Toro 110844

ROD CONNECTING

$33.99

$

Usually ships in 3-6 days

0

13

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

15

Toro 112930

CLAMP B

$

$

Not available

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 108187

WA GAG WHL R
(Superseded to 108187-01)

$

$

Not available

18

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

2

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

3

Toro 109079

ASSY BLADE KIT

$100.99

$

In Stock, only 1 left!

0

4

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 109912

SHAFT SPINDLE

$

$

Not available

6

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

7

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

9

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

10

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 111169

BLADE PULLEY

$76.99

$

Usually ships in 3-6 days

0

12

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

13

Toro 109913

HOUSING SPINDLE

$

$

Not available

14

Toro 302-16

ZERK FITTING

$

$

Not available

15

$

$

Not available

16

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

17

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

Toro 109911

Spindle Assembly (Incl. Ref. #5, 6 &12-17)

Note: Not illustrated

$

$

Not available
