78305 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 220000001 - 220999999) (2002) DECK, BELT COVERS AND DEFLECTOR ASSEMBLY Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

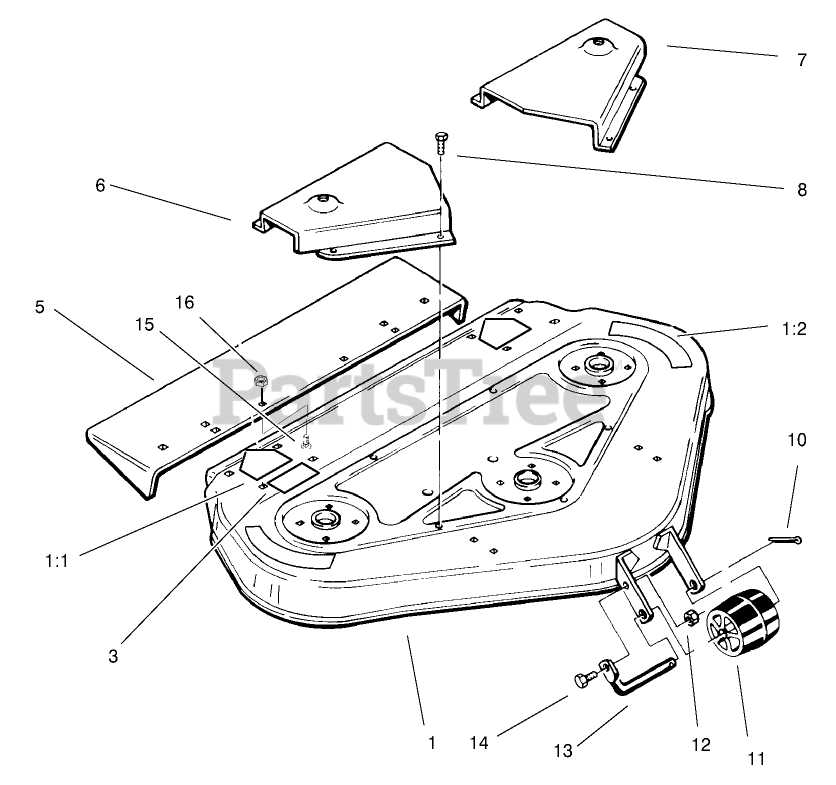

DECK, BELT COVERS AND DEFLECTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 92-5785

36" RD DECK/DECALS

$

$

Not available

1:1

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

1:2

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

3

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

5

Toro 106480-01

EXTENSION-36IN RE (RED)

$102.99

$

Usually ships in 3-6 days

0

6

Toro 107450-01

COVER-BELT RH (RED)

$

$

Not available

7

Toro 107449-01

COVER-BELT LH (RED)

$

$

Not available

8

Toro 9134304

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

10

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

11

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

13

Toro 110847-03

Shaft-Roller
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 10

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
