78305 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 099000001 - 099999999) (1999) DECK DRIVE BELT ATTACHMENT Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

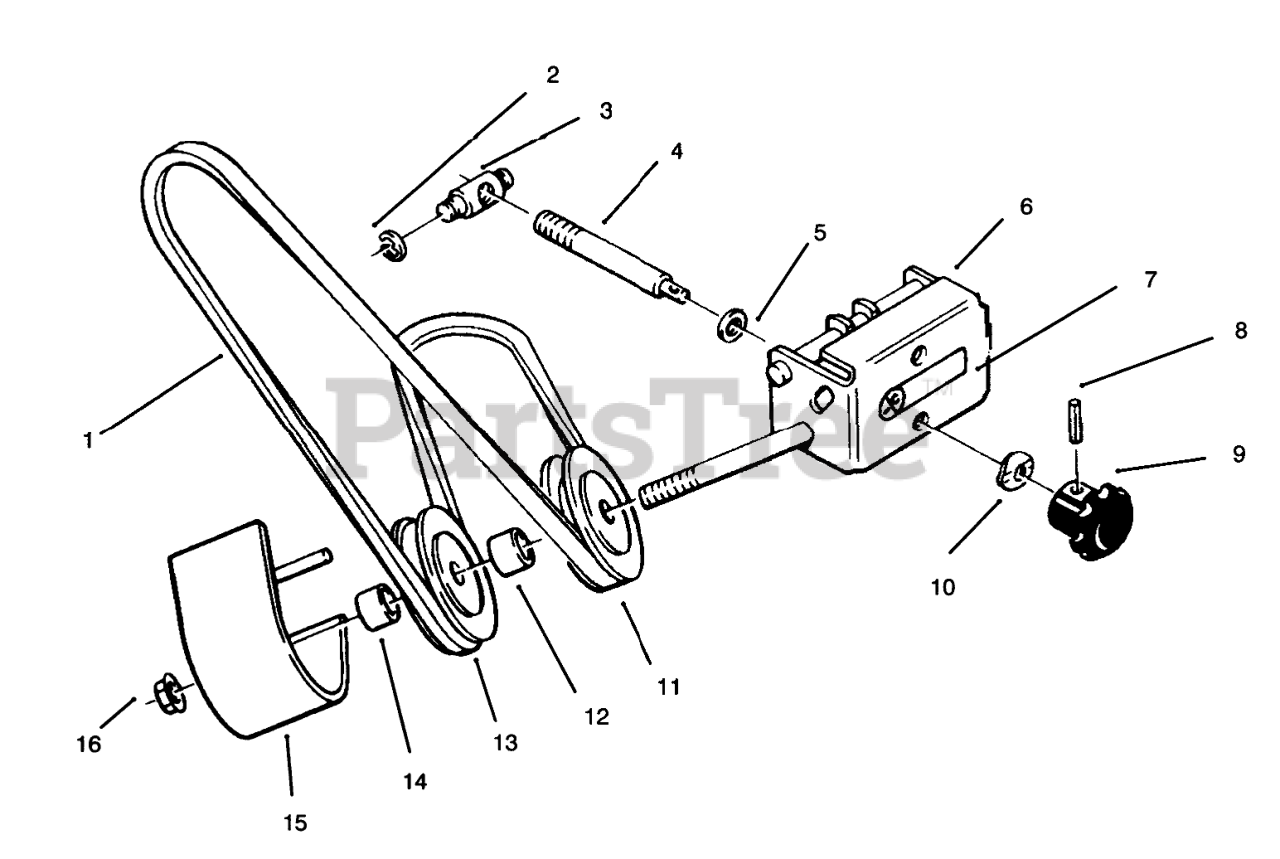

DECK DRIVE BELT ATTACHMENT Parts Diagram

  • Title

1

Toro 102741

V-BELT

$42.99

$

In Stock, only 1 left!

0

2

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

3

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

4

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 101728

Front Support
(Superseded to 101728-01)

$210.99

$

Usually ships in 3-6 days

0

7

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

8

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

9

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

10

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

11

Toro 92-7103

PULLEY-IDLER

$53.99

$

In Stock, only 3 left!

0

12

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

13

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

14

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

15

Toro 102582

Belt Cover
(Superseded to 102582-01)

$101.99

$

Usually ships in 3-6 days

0

16

Toro 9150076

Nut
(Superseded to 116-7306)

$2.99

$

In Stock, Qty 10

0

Toro 101657

Front Idler Assembly (Incl. Ref. # 2-6 & 8-16)

$644.99

$

Usually ships in 3-6 days

0
