78305 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 039000001 - 039999999) (1993) SPINDLE AND BLADE Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

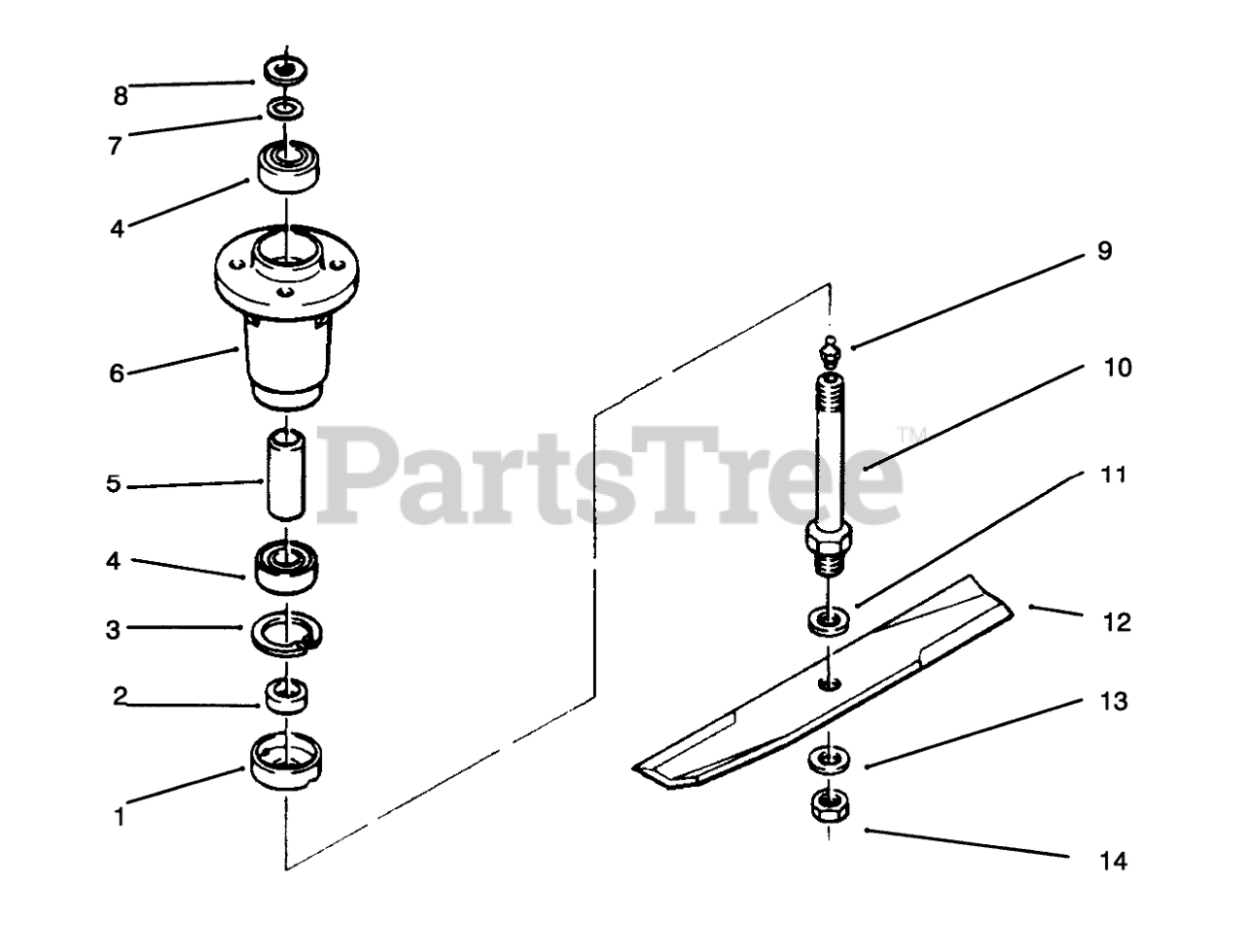

SPINDLE AND BLADE Parts Diagram

  • Title

1

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

2

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

3

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

4

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

5

Toro 116115

TUBE

$27.99

$

Usually ships in 3-6 days

0

6

Toro 114569

HOUSING-SPINDLE

$214.99

$

Usually ships in 3-6 days

0

7

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

8

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

10

Toro 112673

SHAFT-SPINDLE

$155.99

$

Usually ships in 3-6 days

0

11

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

12

Toro 107983

S/A BLADE KIT

$155.99

$

Usually ships in 3-6 days

0

13

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

14

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

Toro 109964

Spindle Assembly (Incl. Ref. #1-10)

Note: Not illustrated

$

$

Not available
