78300 - Toro 36" Rear-Discharge Mower Deck for 300 Series GT Tractors (SN: 049000001 - 049999999) (1994) DECK, BELT COVERS AND DEFLECTOR Parts Diagram

36" Rear-Discharge Mower Deck for 300 Series GT Tractors

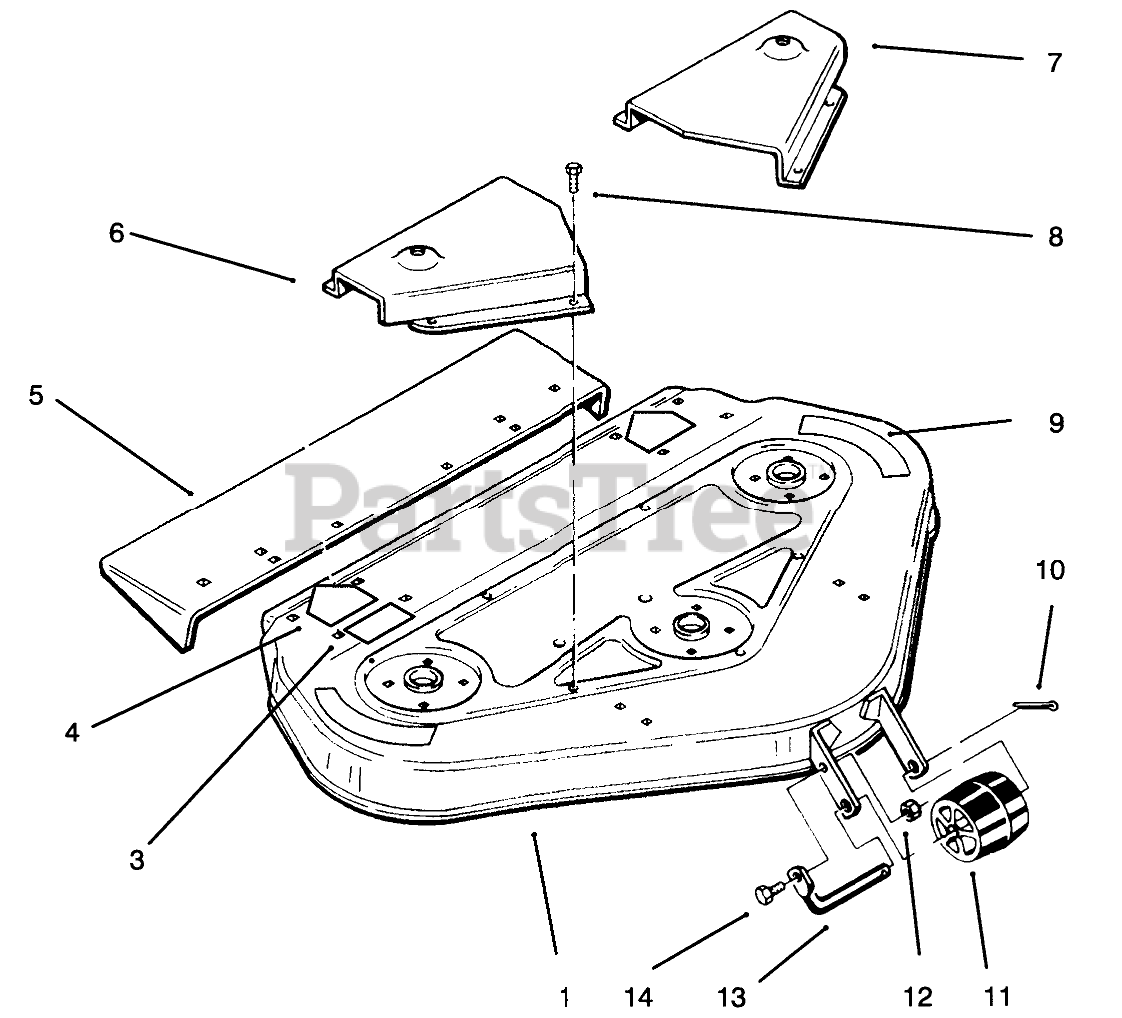

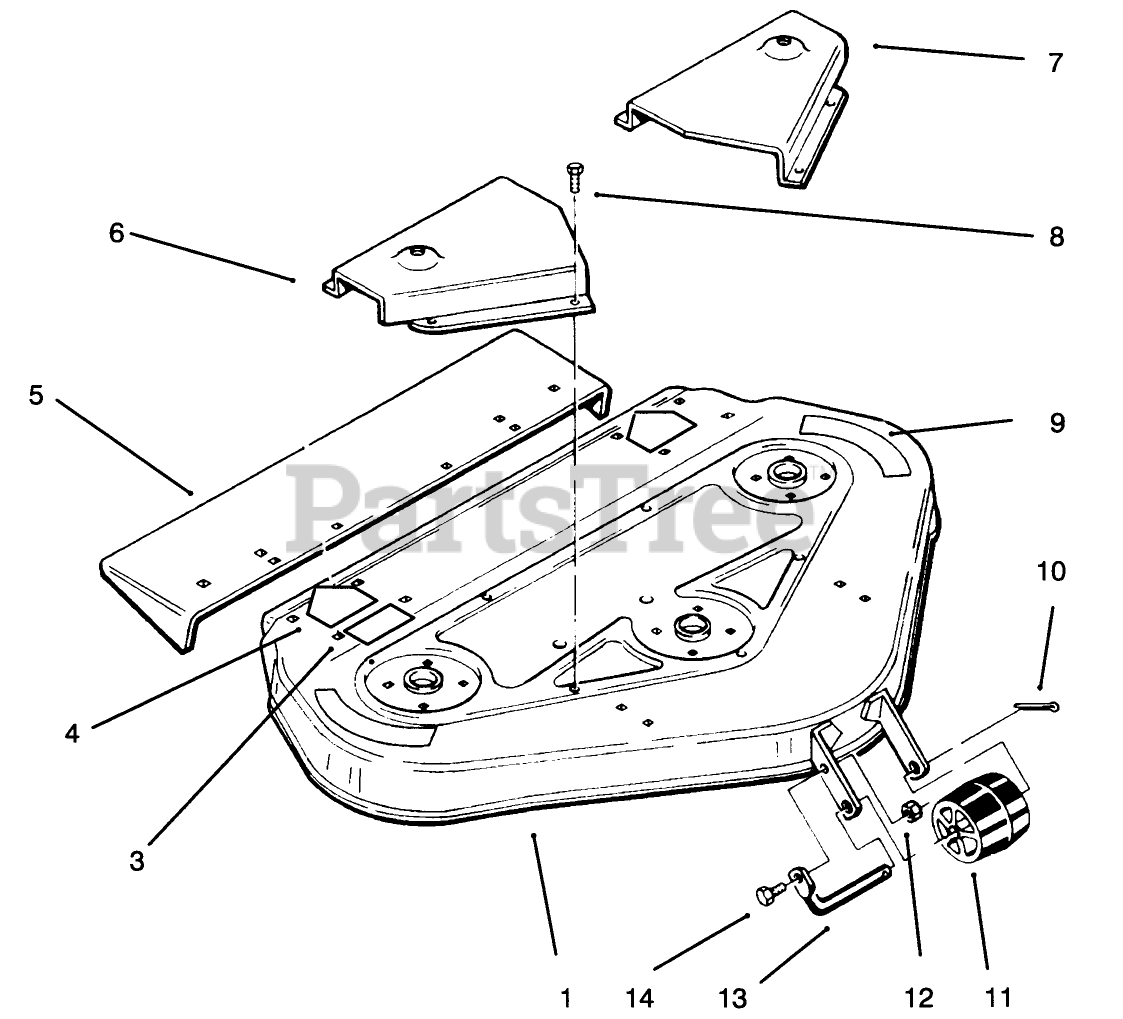

DECK, BELT COVERS AND DEFLECTOR Parts Diagram

  • Title
1

Toro 92-5785

Deck Ass-y (Incl. Ref. #4 & 9)

$

$

Not available

3

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

4

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

5

Toro 106480

Chute Extension
(Superseded to 106480-01)

$102.99

$

Usually ships in 3-6 days

0

6

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

$

$

Not available

7

Toro 107449

Cover-Belt
(Superseded to 107449-01)

$

$

Not available

8

Toro 913430

SCREW -4
(Superseded to 9134304)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

10

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

11

Toro 109376

ROLLER ASSY

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

13

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
