78295 - Toro 122cm Side-Discharge Mower Deck for XT Series Tractors (SN: 250000001 - 250999999) (2005) REINFORCEMENT PLATE ASSEMBLY Parts Diagram

122cm Side-Discharge Mower Deck for XT Series Tractors

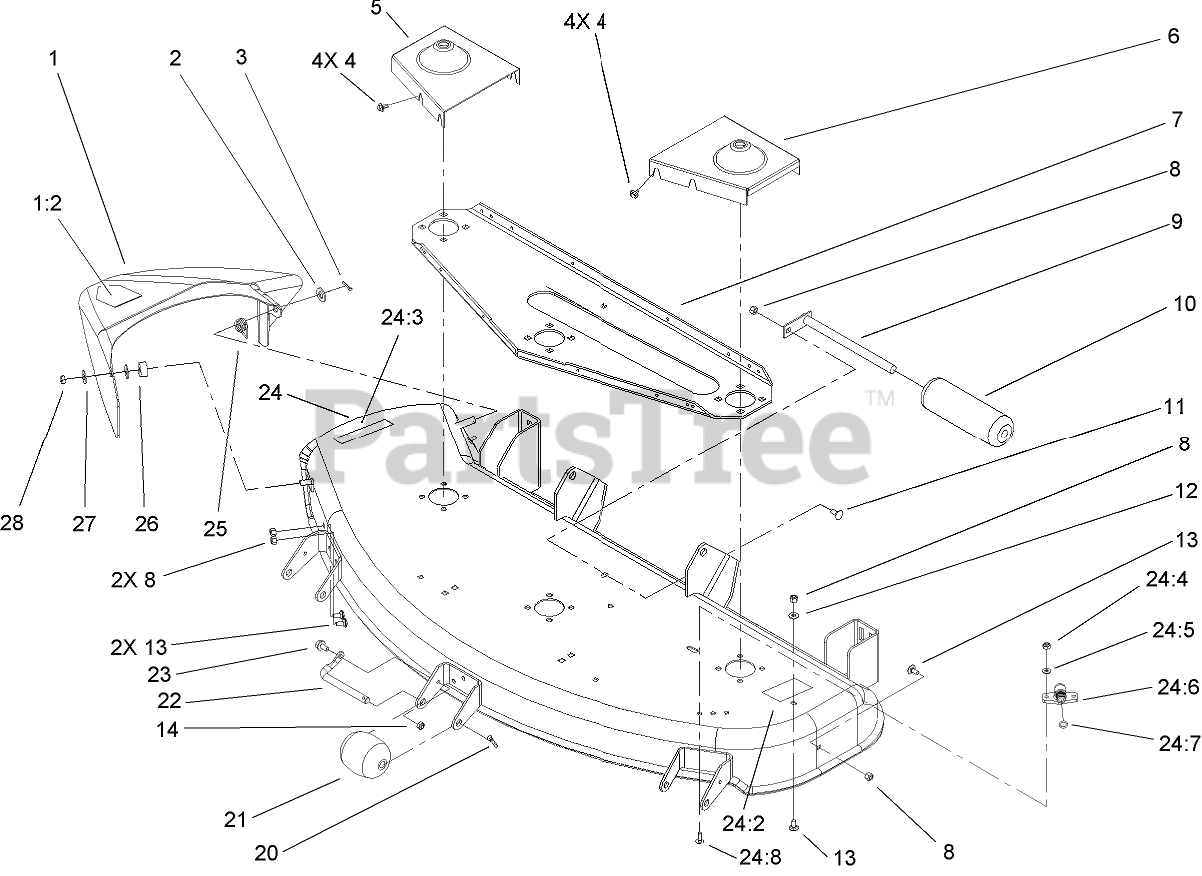

REINFORCEMENT PLATE ASSEMBLY Parts Diagram

  • Title
1

Toro 99-3707

CHUTE ASM

$

$

Not available

1:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

5

Toro 95-3949-01

COVER-BELT, RH

$197.99

$

Usually ships in 3-6 days

0

6

Toro 95-3950-01

COVER-BELT, LH

$

$

Not available

7

Toro 106-5815-01

Plate-Reinforcement,Deck

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 113603

ROLLER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

10

Toro 113349

ROLLER-ANTI SCALP

$78.99

$

In Stock, only 2 left!

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

14

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

20

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

21

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

22

Toro 110847-03

Shaft-Roller
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 107-3697

48 IN DECK/DECAL ASM

$

$

Not available

24:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

24:3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, Qty 20+

0

24:4

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

24:5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24:6

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

24:7

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

24:8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 93-1630

SPRING-DEFLECTOR

$19.99

$

Usually ships in 3-6 days

0

26

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

27

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

28

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0
