78295 - Toro 122cm Side-Discharge Mower Deck for XT Series Tractors (SN: 240000001 - 240999999) (2004) PULLEY BOX ASSEMBLY PART NO. 107-9210 Parts Diagram

122cm Side-Discharge Mower Deck for XT Series Tractors

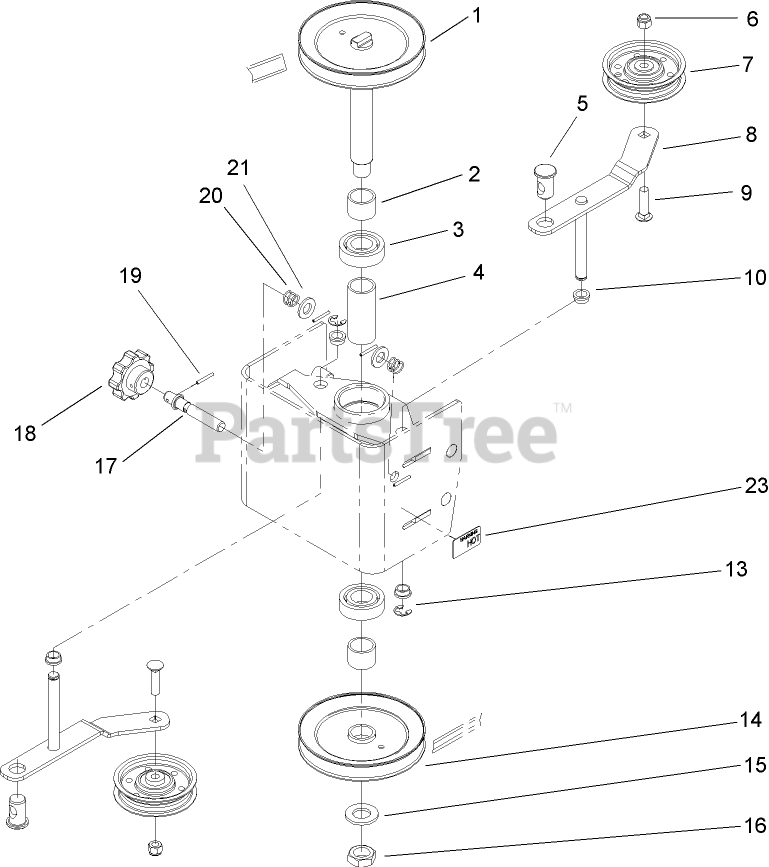

PULLEY BOX ASSEMBLY PART NO. 107-9210 Parts Diagram

  • Title
1

Toro 106-5625

UPPER PULLEY ASM

$

$

Not available

2

Toro 106-5634

SPACER-PULLEY

$

$

Not available

3

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 6

0

4

Toro 106-5633

SPACER-BEARING

$

$

Not available

5

Toro 105-1397

Ferrule-Adjuster

$

$

Not available

6

Toro 3296-22

NUT-LOCK, NI
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

7

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 2 left!

0

8

Toro 106-5636

IDLER ARM ASM

$68.99

$

Usually ships in 3-6 days

0

9

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

10

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

13

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

14

Toro 106-5627

LOWER PULLEY ASM

$

$

Not available

15

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

16

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

17

Toro 106-4024

ROD-TENSION

$

$

Not available

18

Toro 105-1492

Knob-Adjusting

$

$

Not available

19

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

20

Toro 106-9892

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

21

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 107-9200

DECAL-WARNING, HOT

$

$

Not available
