78294 - Toro 52" Side-Discharge Mower Deck for XT Series Tractors (SN: 240000001 - 240999999) (2004) DECK SUSPENSION ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for XT Series Tractors

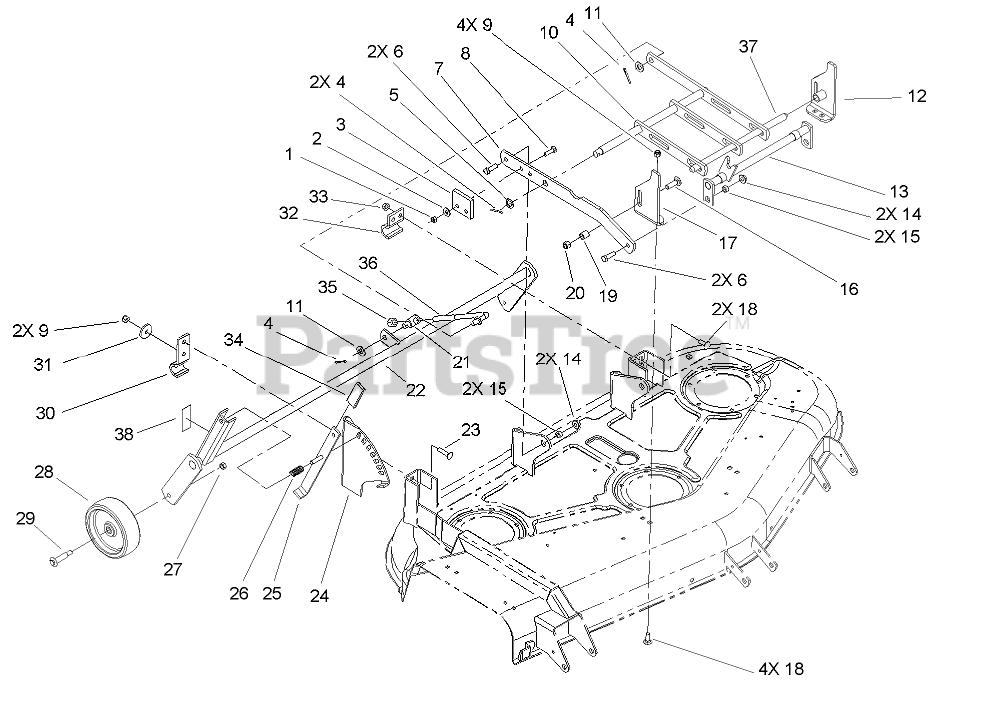

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

4

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

5

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 106-5641-03

BAR-DRAFT

$

$

Not available

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 92-0981-03

BAR-LEVELER

$195.99

$

Usually ships in 3-6 days

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 106-1764-03

LH BRACKET ASM

$

$

Not available

13

Toro 106-5644-03

HITCH ASM

$

$

Not available

14

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

15

Toro 114127

SPACER

$8.99

$

In Stock, only 2 left!

0

16

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

17

Toro 106-1765-03

RH BRACKET ASM

$

$

Not available

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

20

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 94-7802

TRUNNION

$39.99

$

Usually ships in 3-6 days

0

22

Toro 106-1774-01

WHEEL SUPPORT ASM

$

$

Not available

23

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Toro 106-1798-01

QUADRANT

$

$

Not available

25

Toro 94-7965-01

LEVER-HOC

$34.99

$

Usually ships in 3-6 days

0

26

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 95-4102

WHEEL

$85.99

$

In Stock, Qty 7

0

29

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

30

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

31

Toro 98-3479

WASHER-SUPPORT

$

$

Not available

32

$

$

Not available

33

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

34

$2.49

$

Usually ships in 3-6 days

0

35

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 106-1789

ROD-ADJUSTING

$94.99

$

Usually ships in 3-6 days

0

37

Toro 102570-03

Shaft-Front

$128.99

$

Usually ships in 3-6 days

0

38

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0
