78294 - Toro 52" Side-Discharge Mower Deck for XT Series Tractors (SN: 240000001 - 240999999) (2004) DECK, ROLLER AND BAFFLE ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for XT Series Tractors

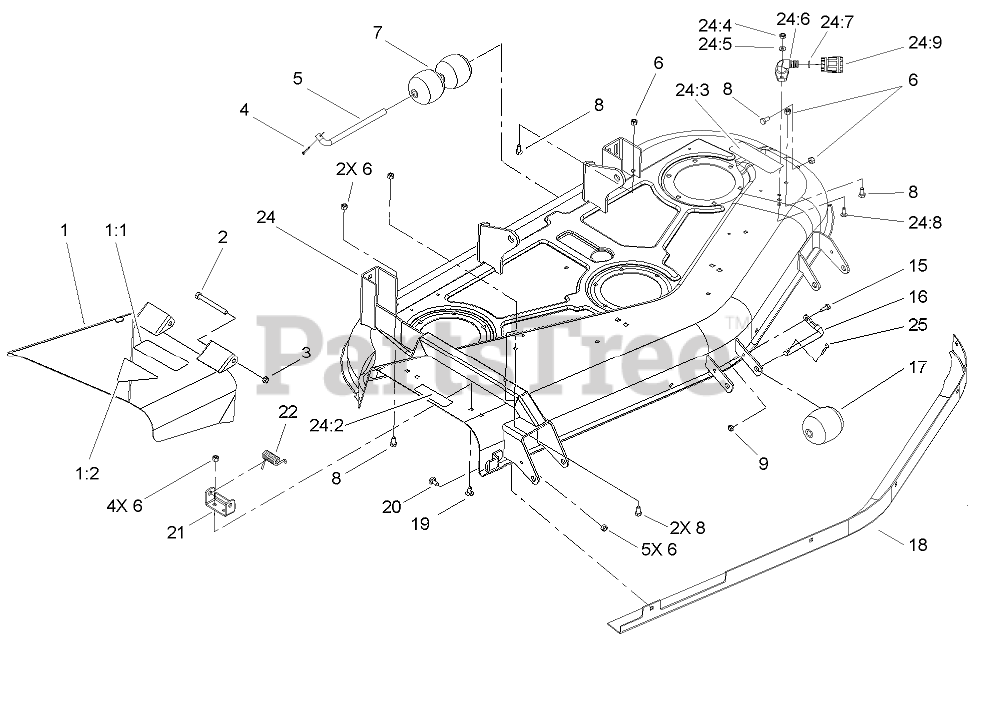

DECK, ROLLER AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-1580

Deflector ASM
(Superseded to 94-1580-01)

$

$

Not available

1:1

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

1:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

2

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

4

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

5

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

8

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 110847-03

Shaft-Roller
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

17

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

18

Toro 67-2150-01

BAFFLE
(Superseded to 67-2150-03)

$422.99

$

Usually ships in 3-6 days

0

19

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

22

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

24

Toro 106-5802

52IN DECK/DECAL ASM

$

$

Not available

24:2

Toro 92-7109

DECAL-CAUTION

$

$

Not available

24:3

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

24:4

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

24:5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24:6

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

24:7

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

24:8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

24:9

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

25

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0
