78291 - Toro 42" Rear-Discharge Mower Deck for XT Series Tractors (SN: 250000001 - 250999999) (2005) DECK ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for XT Series Tractors

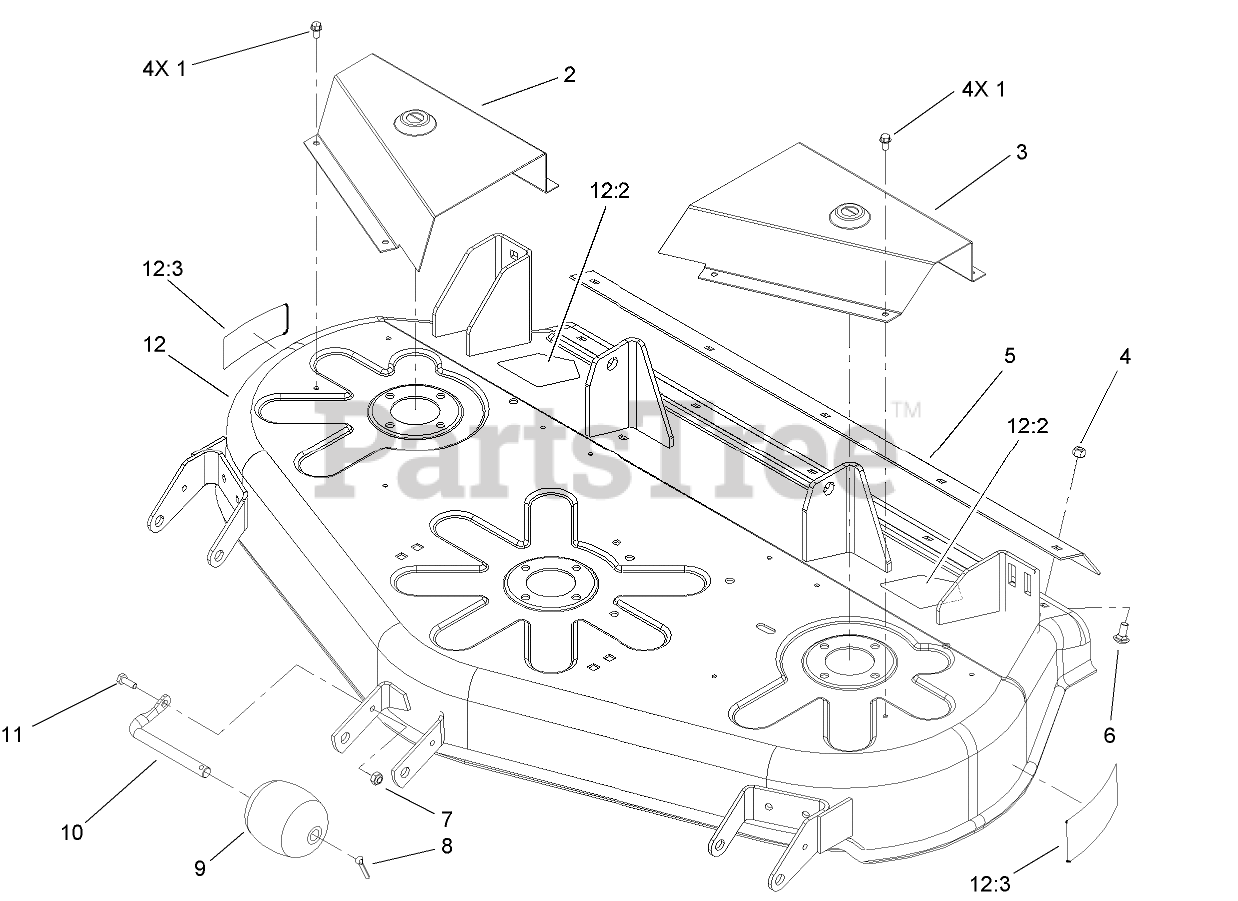

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 106409-01

COVER-BELT, RH

$64.99

$

Usually ships in 3-6 days

0

3

Toro 106638-01

COVER BELT, LH

$64.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 98-3494-01

DEFLECTOR

$

$

Not available

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

9

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

10

Toro 110847-03

Shaft-Roller
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 106-5809

DECK AND DECAL ASM

$

$

Not available

12:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

12:3

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0
