78291 - Toro 42" Rear-Discharge Mower Deck for XT Series Tractors (SN: 230000001 - 230999999) (2003) SPINDLE AND BLADE ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for XT Series Tractors

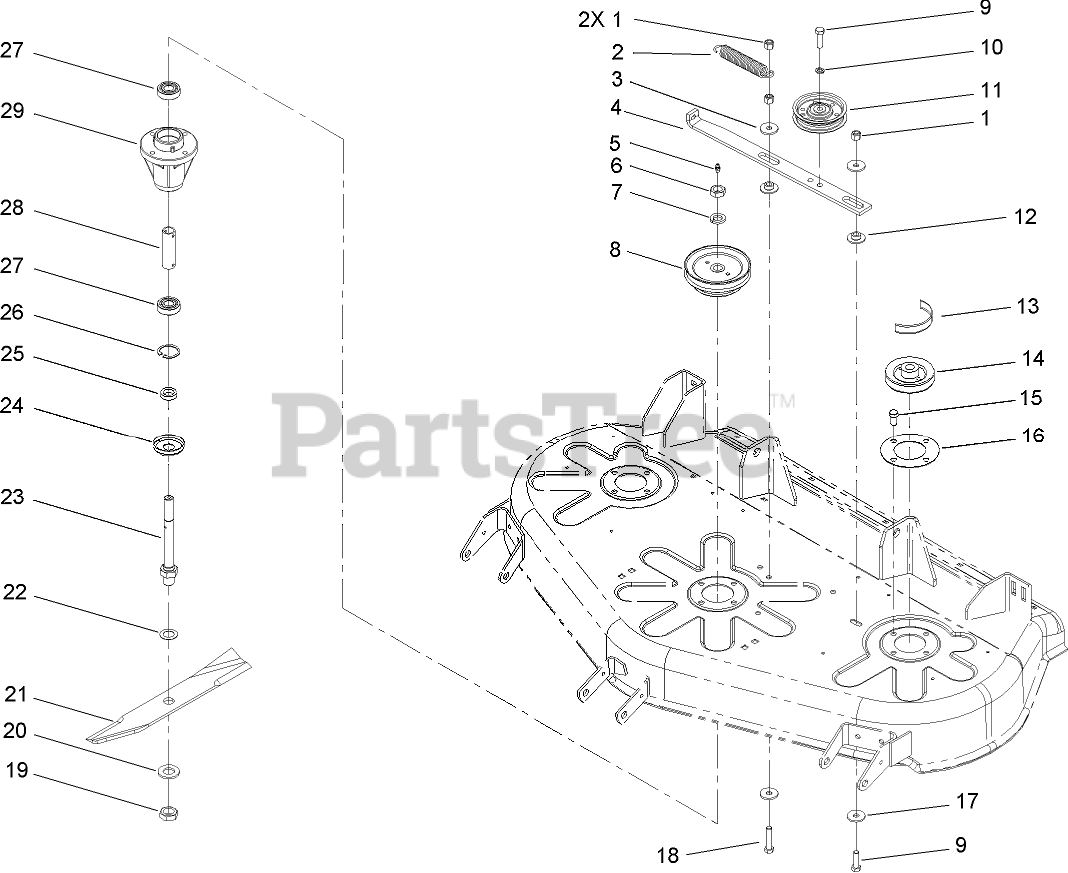

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

2

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

3

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

4

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

7

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 110148

PULLEY

$119.99

$

In Stock, only 1 left!

0

9

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

Usually ships in 3-6 days

0

12

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

13

Toro 106125

V-BELT

$37.99

$

In Stock, only 4 left!

0

14

Toro 109967

PULLEY

$80.99

$

In Stock, only 1 left!

0

15

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

16

Toro 106117

PLATE-SPINDLE

$20.99

$

Usually ships in 3-6 days

0

17

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

20

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

21

Toro 106108

BLADE-14.5IN
(Superseded to 106635)

$98.99

$

In Stock, Qty 6

0

22

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

24

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

25

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

27

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

28

$33.99

$

In Stock, only 1 left!

0

29

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0
