78290 - Toro 48" Side-Discharge Mower Deck for XT Series Tractors (SN: 250000001 - 250999999) (2005) DECK SUSPENSION ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for XT Series Tractors

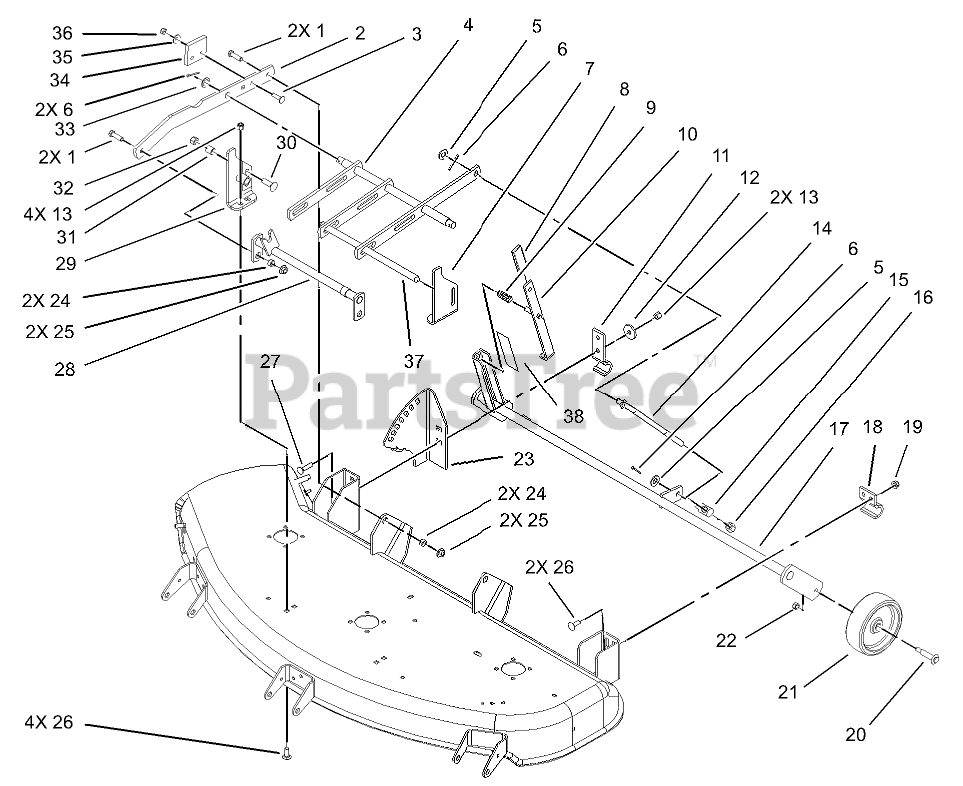

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

2

Toro 106-5641-03

BAR-DRAFT

$

$

Not available

3

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 92-0981-03

BAR-LEVELER

$166.99

$

Usually ships in 3-6 days

0

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

7

Toro 106-5603-03

BRACKET-FRONT DECK, LH

$

$

Not available

8

Toro 102597

GRIP

$1.99

$

Usually ships in 3-6 days

0

9

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

10

Toro 94-7965-01

LEVER-HOC

$30.99

$

Usually ships in 3-6 days

0

11

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

12

Toro 98-3479

WASHER-SUPPORT

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 106-4098

ROD-ADJUSTMENT

$

$

Not available

15

Toro 94-7802

TRUNNION

$39.99

$

Usually ships in 3-6 days

0

16

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 106-4096-01

Wheel Support-48 In

$

$

Not available

18

Toro 94-7543-03

CLAMP

$11.99

$

Usually ships in 3-6 days

0

19

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

20

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 15

0

21

Toro 95-4102

WHEEL

$75.99

$

In Stock, Qty 7

0

22

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

23

Toro 106-5605-01

Bracket-Quadrant,48 In

$

$

Not available

24

Toro 114127

SPACER

$8.99

$

In Stock, only 2 left!

0

25

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

26

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

27

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

28

Toro 106-5644-03

HITCH ASM

$

$

Not available

29

Toro 106-5604-03

BRACKET-FRONT DECK, RH

$

$

Not available

30

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

31

Toro 9793604

SPACER

$12.99

$

Usually ships in 3-6 days

0

32

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

34

Toro 102322

BUMPER

$7.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

37

Toro 102570-03

Shaft-Front

$127.99

$

Usually ships in 3-6 days

0

38

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0
