78281 - Toro 52" Side-Discharge Mower Deck for 260 Series Tractors (SN: 210000001 - 210999999) (2001) GAGE WHEEL AND LIFT BRACKET ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 260 Series Tractors

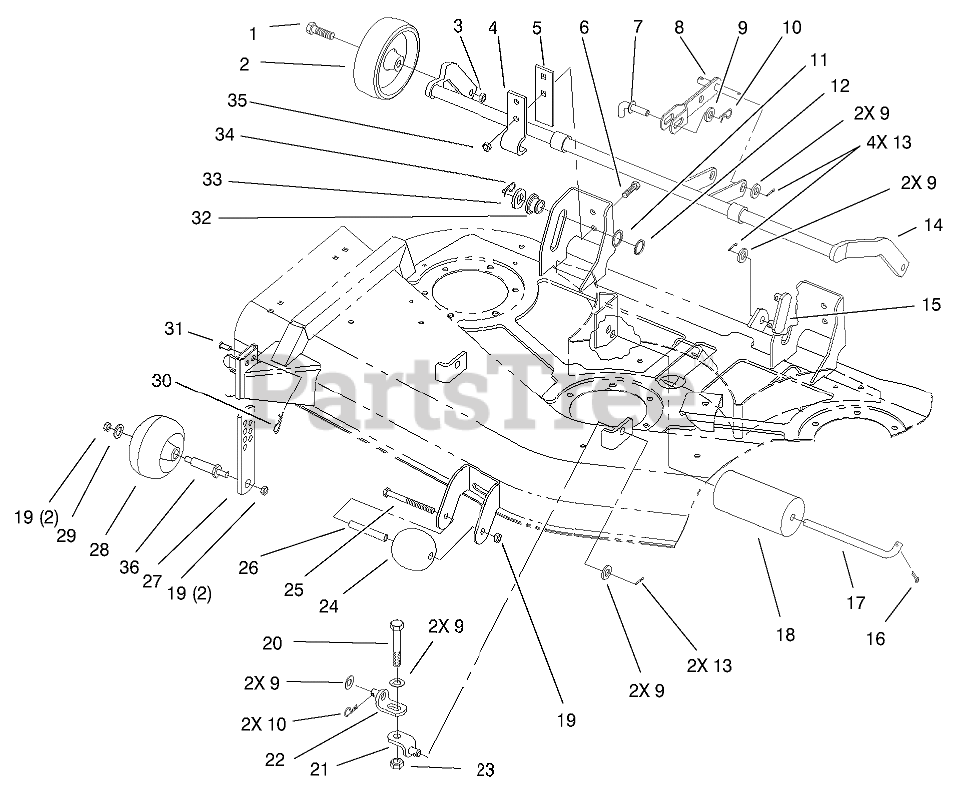

GAGE WHEEL AND LIFT BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 92-6959

WHEEL

$55.99

$

Usually ships in 3-6 days

0

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

$

$

Not available

5

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

6

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Toro 100-8734

LINK PIN ASM

$

$

Not available

8

Toro 100-7503-03

LIFT ARM ASM

$112.99

$

Usually ships in 3-6 days

0

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

11

Toro 9202394

WASHER

$2.99

$

Usually ships in 3-6 days

0

12

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

13

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

14

Toro 100-6073-03

Wheel Carrier ASM

$

$

Not available

15

Toro 100-7501

LINK BRACKET-REAR

$140.99

$

Usually ships in 3-6 days

0

16

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

18

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

21

Toro 86-9240

BRACKET-LIFT, LOWER

$107.99

$

In Stock, only 4 left!

0

22

Toro 86-9250

BRACKET-LIFT, UPPER

$96.99

$

In Stock, only 1 left!

0

23

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Toro 29-4820

ROLLER

$18.99

$

In Stock, Qty 8

0

25

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

26

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

In Stock, only 1 left!

0

27

Toro 100-8736

PLATE-GAGE WHEEL

$

$

Not available

28

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

31

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

32

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

33

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

34

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

35

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

36

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0
