78269 - Toro 48" Side-Discharge Mower Deck for 260 Series Tractors (SN: 250000001 - 250999999) (2005) SPINDLE AND BLADE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 260 Series Tractors

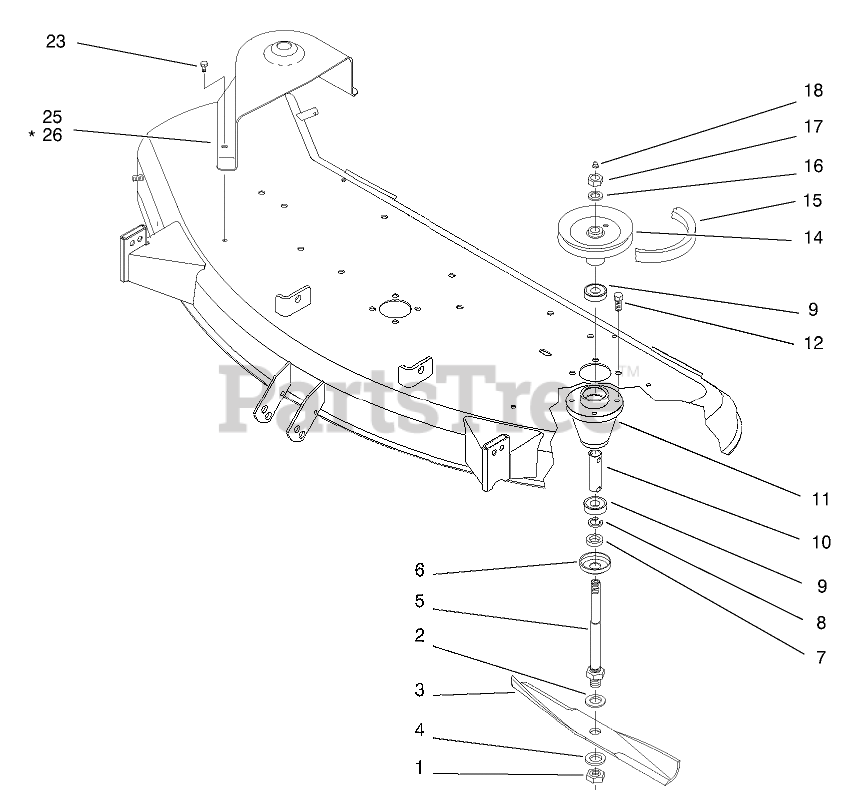

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

2

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

3

Toro 105-1494-03

BLADE-16.25IN, OUTSIDE

$46.99

$

Usually ships in 3-6 days

0

3

Toro 105-1495-03

BLADE-15.75IN, CENTER

$46.99

$

Usually ships in 3-6 days

0

4

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 78-6710

SHAFT-SPINDLE

$98.99

$

Usually ships in 3-6 days

0

6

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

7

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

8

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

9

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

10

Toro 116085

TUBE

$31.99

$

In Stock, only 1 left!

0

11

Toro 114568

HOUSING-SPINDLE

$99.99

$

In Stock, only 1 left!

0

12

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

14

Toro 92-7083

PULLEY

$119.99

$

Usually ships in 3-6 days

0

15

Toro 92-6958

BELT-V

$112.99

$

In Stock, only 1 left!

0

16

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

25

Toro 86-9220

COVER-BELT, RH

$171.99

$

Usually ships in 3-6 days

0

26

Toro 86-9210

COVER-BELT, LH

Note: Not illustrated

$

$

Not available
