78268 - Toro 48" Side-Discharge Mower Deck for 260 Series Tractors (SN: 210000001 - 210999999) (2001) REINFORCEMENT PLATE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 260 Series Tractors

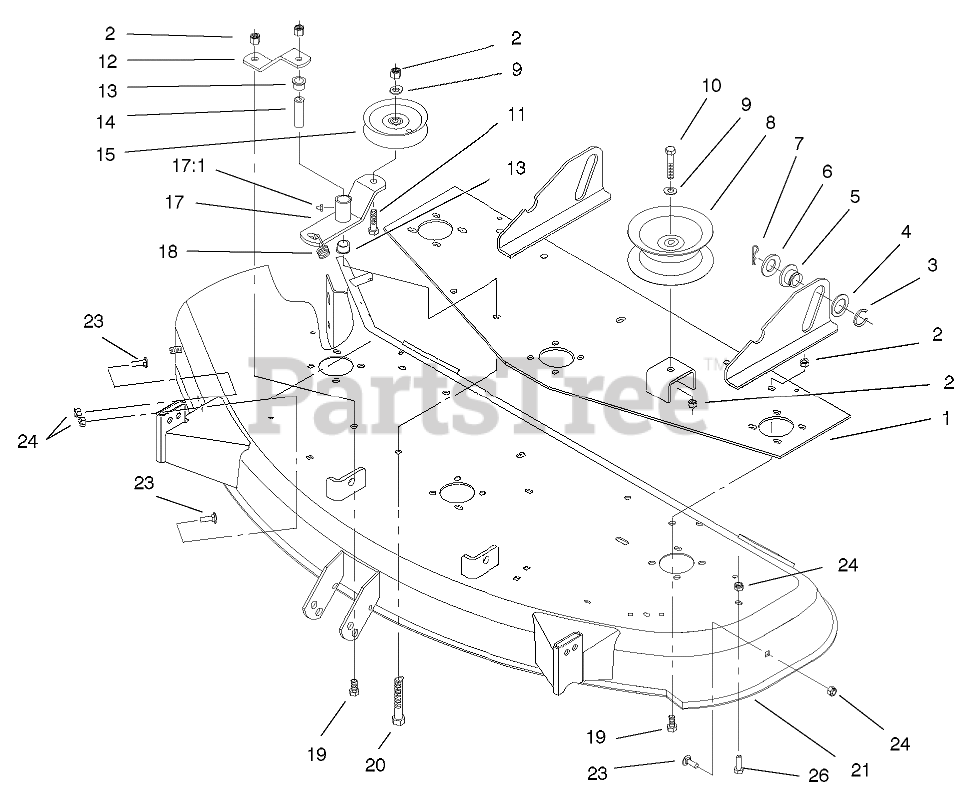

REINFORCEMENT PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-9782-01

SUPPORT-DECK

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

4

Toro 9202394

WASHER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

6

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

7

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

8

Toro 92-7082

PULLEY-IDLER

$133.99

$

In Stock, only 2 left!

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 78-3140-03

STRAP-BRACE

$

$

Not available

13

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

14

Toro 79-2760

SPACER

$

$

Not available

15

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

17

Toro 98-9006

ARM - IDLER

$157.99

$

Usually ships in 3-6 days

0

17:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

19

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 94-9792

ASM - 48 DECK W/DECAL

$

$

Not available

23

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0
