78268 - Toro 48" Side-Discharge Mower Deck for 260 Series Tractors (SN: 069000001 - 069999999) (1996) DECK & IDLER ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 260 Series Tractors

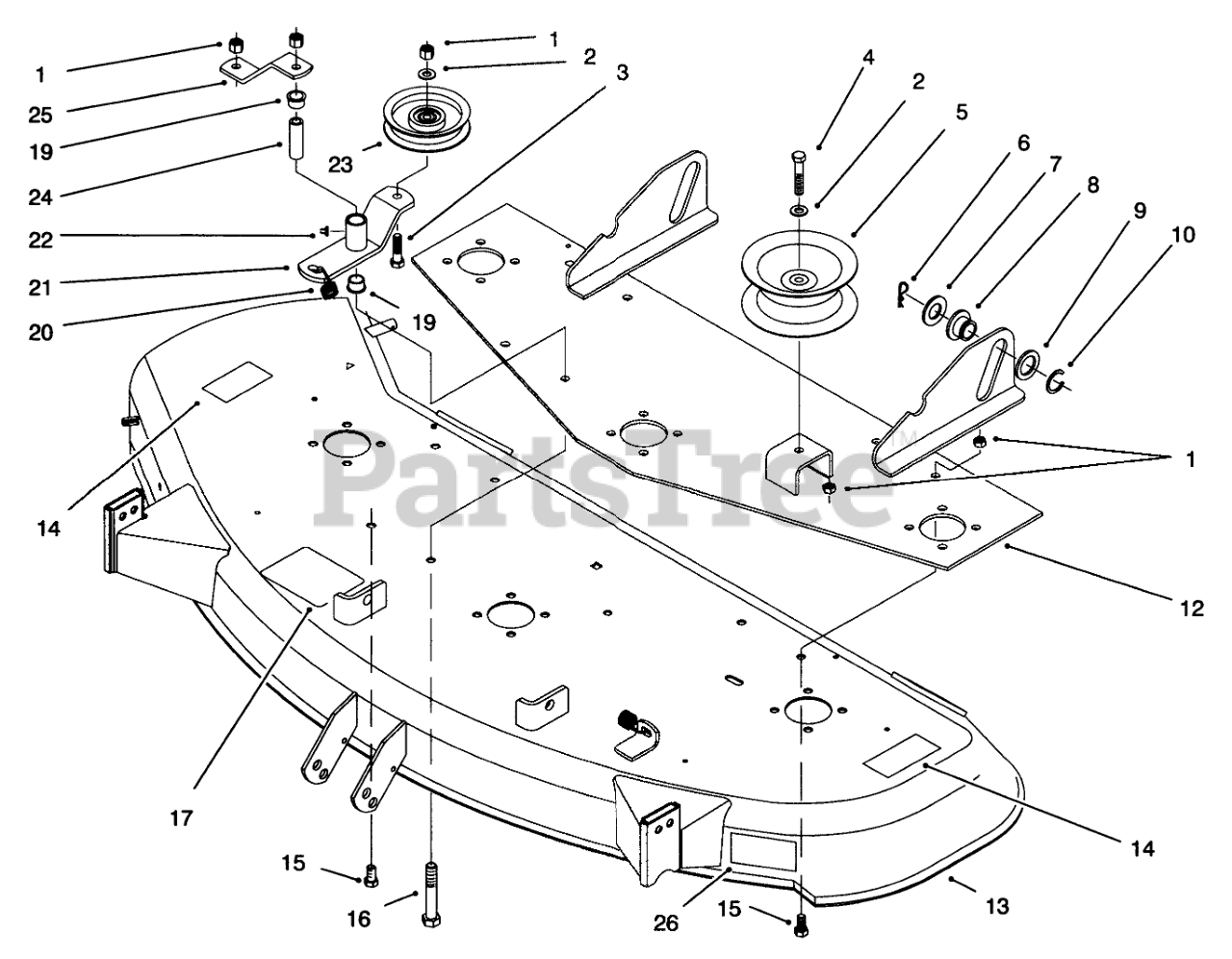

DECK & IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 92-7082

PULLEY-IDLER

$133.99

$

In Stock, only 2 left!

0

6

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

7

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

8

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

9

Toro 9202394

WASHER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

12

Toro 79-4410-01

Plate-Support
(Superseded to 94-9782-01)

$

$

Not available

13

Toro 94-1578

Deck & Decal ASM (Incl. Ref. #14)
(Superseded to 94-9792)

$

$

Not available

14

Toro 93-7317

DECAL-DANGER

$

$

Not available

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 93-7325

DECAL - BELT INSTALLATION

$

$

Not available

19

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

20

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

21

Toro 78-3150-03

Arm
(Superseded to 98-9006)

$157.99

$

Usually ships in 3-6 days

0

22

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

23

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

24

Toro 79-2760

SPACER

$

$

Not available

25

Toro 78-3140-03

STRAP-BRACE

$

$

Not available

26

Toro 93-7282

DECAL-ADJUSTMENT, WHEEL

$8.49

$

In Stock, only 1 left!

0
