78265 - Toro 48" Recycler Mower Deck for 260 Series Tractors (SN: 079000001 - 079999999) (1997) DECK ASSEMBLY Parts Diagram

48" Recycler Mower Deck for 260 Series Tractors

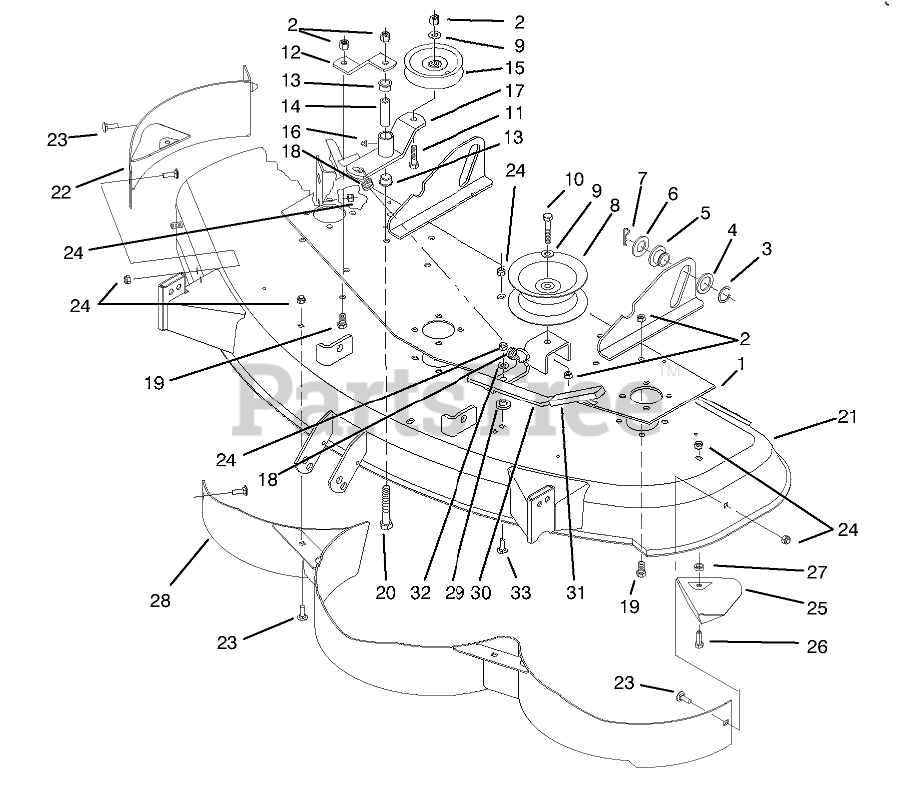

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 94-9756-01

Deck Support Asm
(Superseded to 94-9782-01)

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

3

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

4

Toro 9202394

WASHER

$2.99

$

Usually ships in 3-6 days

0

5

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

6

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

7

Toro 9335074

PIN-HAIR

$5.49

$

In Stock, Qty 5

0

8

Toro 92-7082

PULLEY-IDLER

$133.99

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 78-3140-03

STRAP-BRACE

$

$

Not available

13

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

14

Toro 79-2760

SPACER

$

$

Not available

15

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

16

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

17

Toro 78-3150-03

Arm
(Superseded to 98-9006)

$157.99

$

Usually ships in 3-6 days

0

18

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 94-9752-01

48" Deck Asm

$

$

Currently unavailable

21

Toro 94-9770-01

Deck / Decal Asm

$

$

Currently unavailable

22

Toro 94-9708

Baffle-Discharge
(Superseded to 94-9708-03)

$

$

Not available

23

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 84-5760

PLATE-KICKER

$15.99

$

Usually ships in 3-6 days

0

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

28

Toro 94-9710-03

Baffle-Front

$

$

Not available

29

Toro 88-5010

SPACER-RACK, STEERING

$3.49

$

In Stock, only 1 left!

0

30

Toro 94-9738

Lever Asm
(Superseded to 94-9738-03)

$

$

Not available

31

$9.49

$

In Stock, only 1 left!

0

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
