78261 - Toro 48" Side-Discharge Mower Deck for 260 Series Tractors (SN: 230000001 - 230999999) (2003) SPINDLE AND BLADE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 260 Series Tractors

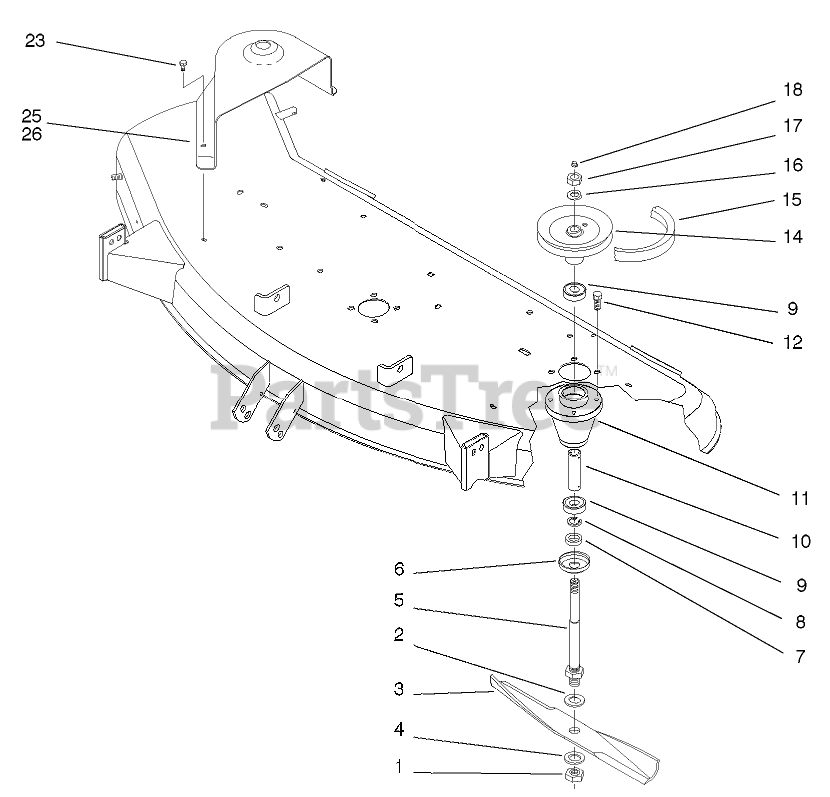

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

2

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

3

Toro 106637

BLADE KIT (3 PACK)

$101.99

$

In Stock, only 1 left!

0

4

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

6

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

7

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

8

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

9

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

10

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

11

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

12

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

14

Toro 92-7083

PULLEY

$135.99

$

Usually ships in 3-6 days

0

15

Toro 92-6958

BELT-V

$140.99

$

In Stock, only 1 left!

0

16

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

25

Toro 86-9220

COVER-BELT, RH

$177.99

$

Usually ships in 3-6 days

0

26

Toro 86-9210

COVER-BELT, LH

Note: Not illustrated

$

$

Not available
