78260 - Toro 48" Side-Discharge Mower Deck for 260 Series Tractors (SN: 079000001 - 079999999) (1997) SUSPENSION ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 260 Series Tractors

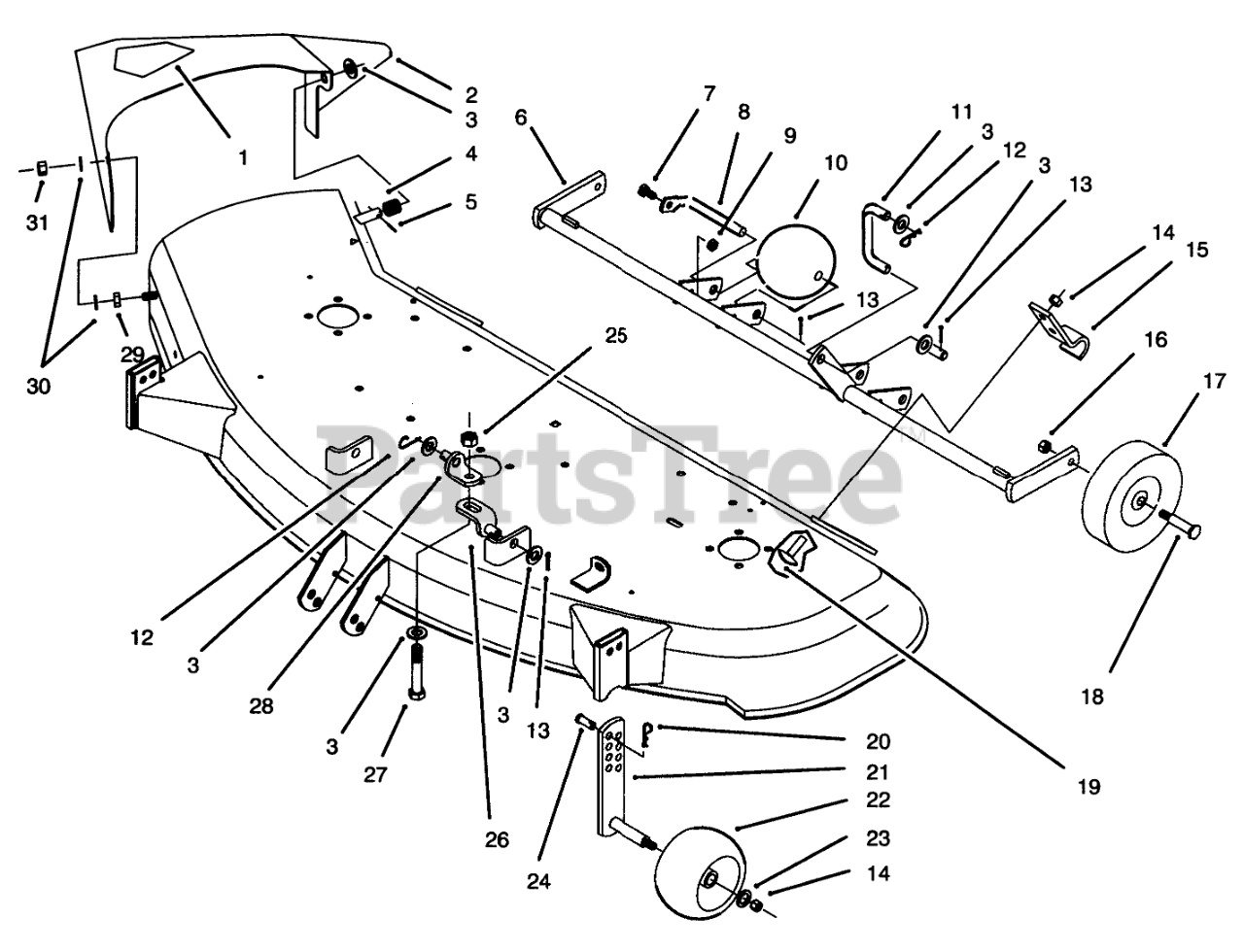

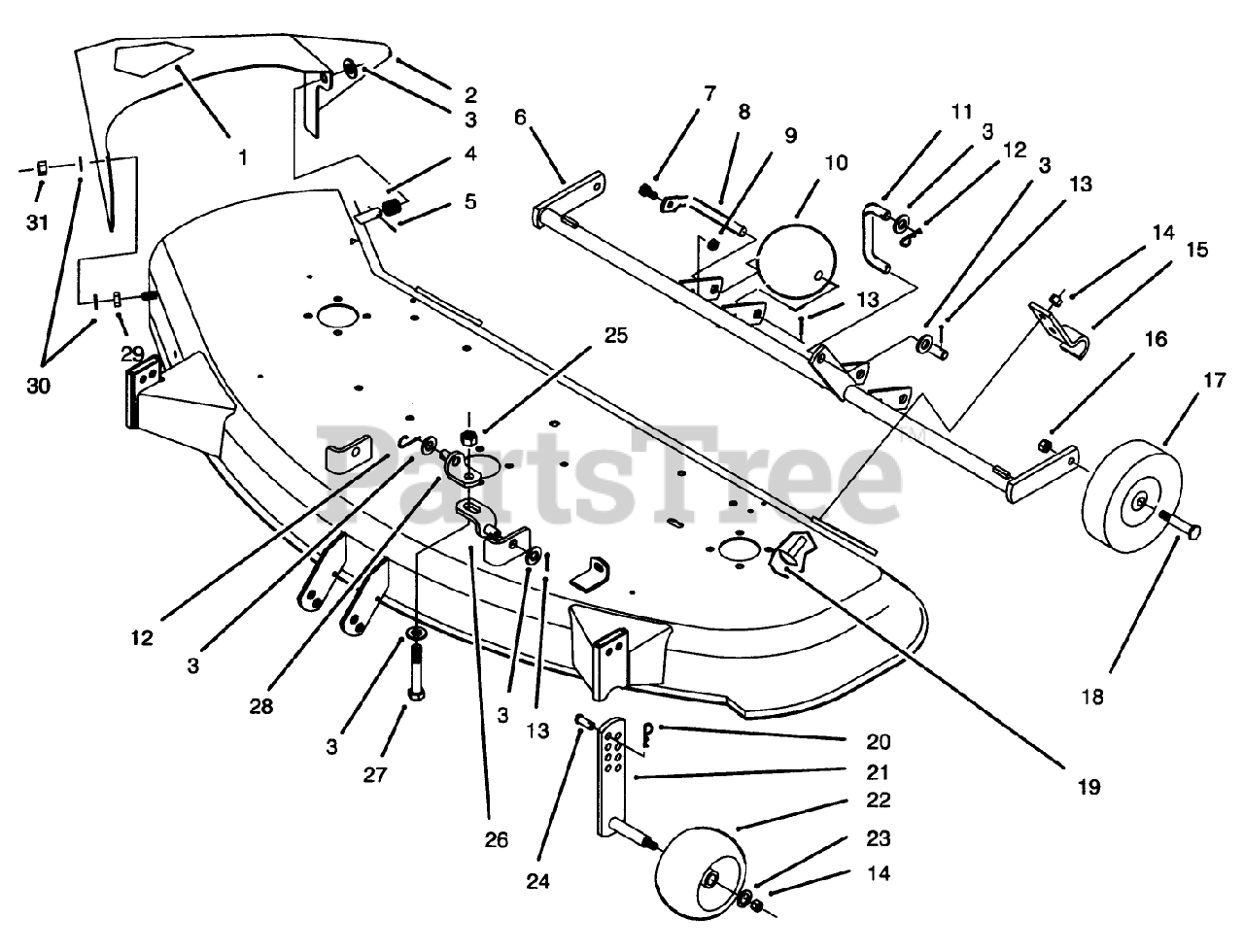

SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

2

Toro 88-2750-01

Chute & Decal ASM (Incl. Ref. #1)
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

3

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 93-1630

SPRING-DEFLECTOR

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

6

Toro 79-4140-03

SUPPORT-GAGE WHEEL

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

11

Toro 79-5380

LINK-REAR

$45.99

$

Usually ships in 3-6 days

0

12

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

13

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

16

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

17

Toro 110506

WHEEL

$42.99

$

In Stock, only 2 left!

0

18

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

19

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

22

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 10

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

24

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

25

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 86-9240

BRACKET-LIFT, LOWER

$107.99

$

In Stock, only 4 left!

0

27

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

28

Toro 86-9250

BRACKET-LIFT, UPPER

$96.99

$

In Stock, only 1 left!

0

29

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

30

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

31

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0
