78253 - Toro 52" Side-Discharge Mower Deck for 260 Series Tractors (SN: 210000001 - 210999999) (2001) BLADES, SPINDLES & DEFLECTOR ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 260 Series Tractors

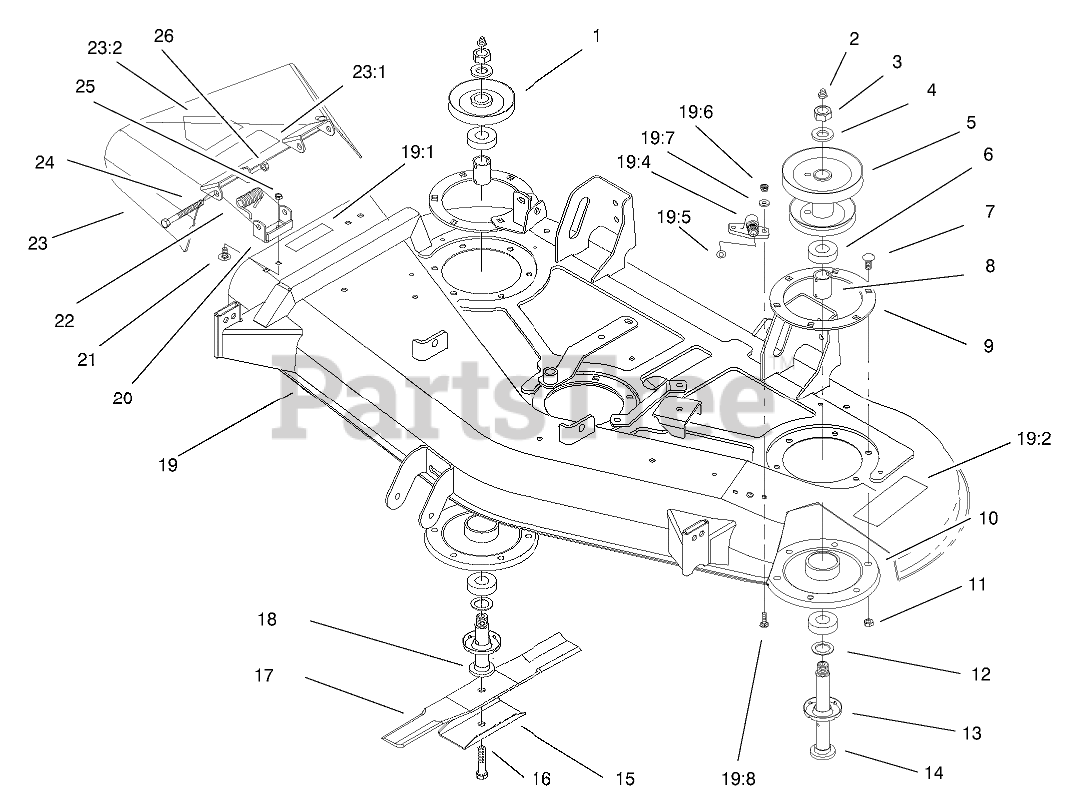

BLADES, SPINDLES & DEFLECTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 79-0620

PULLEY

$148.99

$

Usually ships in 3-6 days

0

2

Toro 302-2

FITTING-GREASE

$2.49

$

Usually ships in 3-6 days

0

3

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

4

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

5

Toro 94-4800

PULLEY-DOUBLE

$240.99

$

In Stock, only 1 left!

0

6

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 79-1890

SPACER-BEARING

$34.99

$

Usually ships in 3-6 days

0

9

Toro 27-7680-03

RING-DECK SUPPORT

$86.99

$

Usually ships in 3-6 days

0

10

Toro 79-2480-03

HOUSING-SPINDLE
(Superseded to 79-2480)

$222.99

$

Usually ships in 3-6 days

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 88-7540

WASHER-BACKUP

$1.99

$

In Stock, Qty 5

0

13

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0

14

Toro 94-2523

SHAFT - SPINDLE

$235.99

$

Usually ships in 3-6 days

0

15

Toro 92-9820

STIFFENER-BLADE

$62.99

$

Usually ships in 3-6 days

0

16

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

17

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

18

Toro 79-1900

SHAFT-SPINDLE

$252.99

$

Usually ships in 3-6 days

0

19

Toro 94-9793

DECK ASM

$

$

Not available

19:1

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

19:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

19:4

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

19:5

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

19:6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

19:7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19:8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

21

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

22

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

23

Toro 94-1581

DEFLECTOR ASM
(Superseded to 94-1581-01)

$406.99

$

Usually ships in 3-6 days

0

23:1

Toro 93-7317

DECAL-DANGER

$

$

Not available

23:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

24

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0
