78253 - Toro 52" Side-Discharge Mower Deck for 260 Series Tractors (SN: 200000001 - 200999999) (2000) DRIVE PULLEYS AND BELT COVERS ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 260 Series Tractors

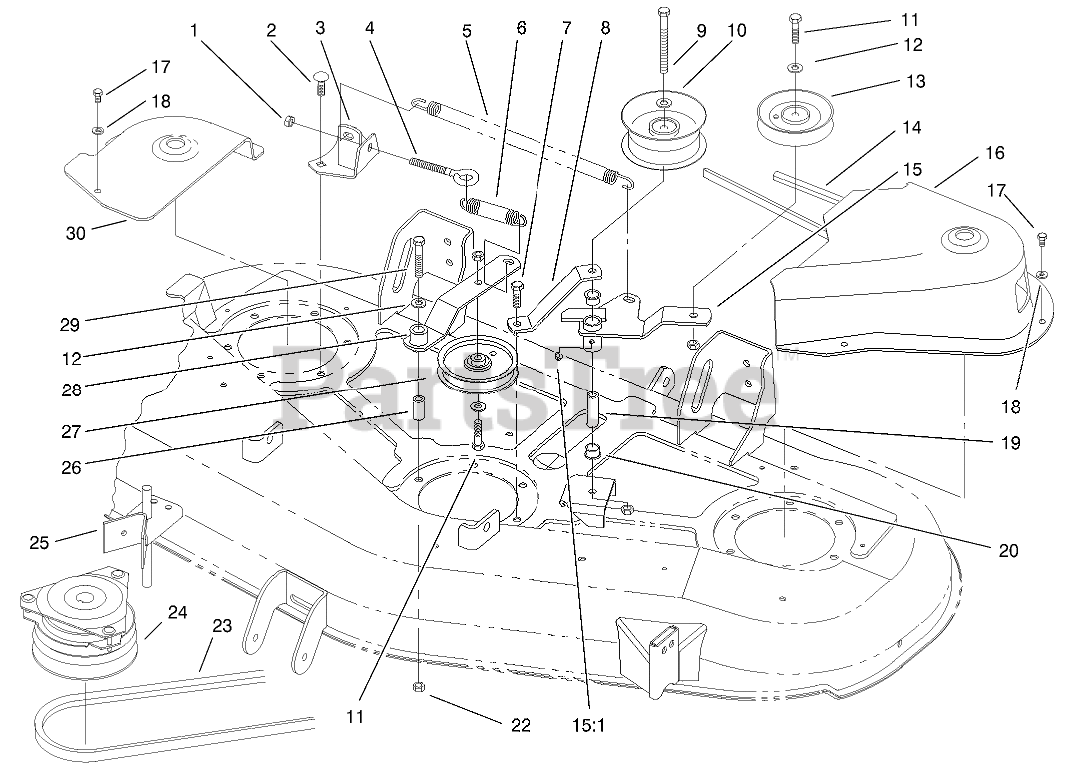

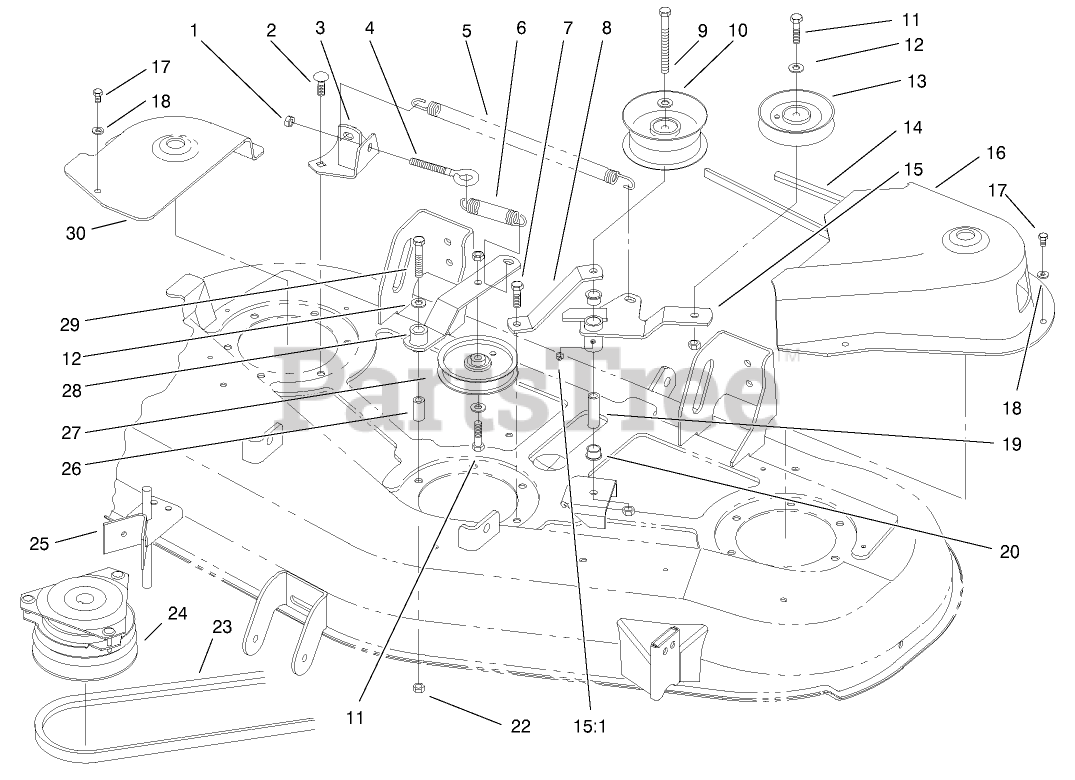

DRIVE PULLEYS AND BELT COVERS ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

3

Toro 94-2546-03

BRACKET-SPRING

$

$

Not available

4

Toro 94-2547

BOLT-EYE

$27.99

$

Usually ships in 3-6 days

0

5

Toro 94-5385

SPRING-EXTENSION

$84.99

$

Usually ships in 3-6 days

0

6

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

7

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

8

Toro 94-4801-03

STRAP-SUPPORT

$

$

Not available

9

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Toro 94-4935

PULLEY-IDLER

$125.99

$

Usually ships in 3-6 days

0

11

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 3 left!

0

14

Toro 94-2501

V-BELT

$37.99

$

In Stock, Qty 18

0

15

Toro 95-7897

IDLER ARM ASSEMBLY

$

$

Not available

15:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

16

Toro 94-2522

COVER-BELT, LH

$

$

Not available

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 79-2760

SPACER

$

$

Not available

20

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

22

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

23

Toro 94-2513

BELT - V

$56.99

$

In Stock, only 1 left!

0

24

Toro 100-6059

CLUTCH-PTO
(Superseded to 103-9950)

$491.99

$

Usually ships in 3-6 days

0

25

Toro 100-7540-03

DECK UPSTOP ASM

$

$

Not available

26

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 2 left!

0

27

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, Qty 20+

0

28

Toro 55-7640-03

IDLER ARM ASM

$128.99

$

In Stock, only 2 left!

0

29

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 94-2524

COVER - BELT, RH

$143.99

$

Usually ships in 3-6 days

0
