78232 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 069000001 - 069999999) (1996) CHUTE, BELT COVER & SHIELD ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

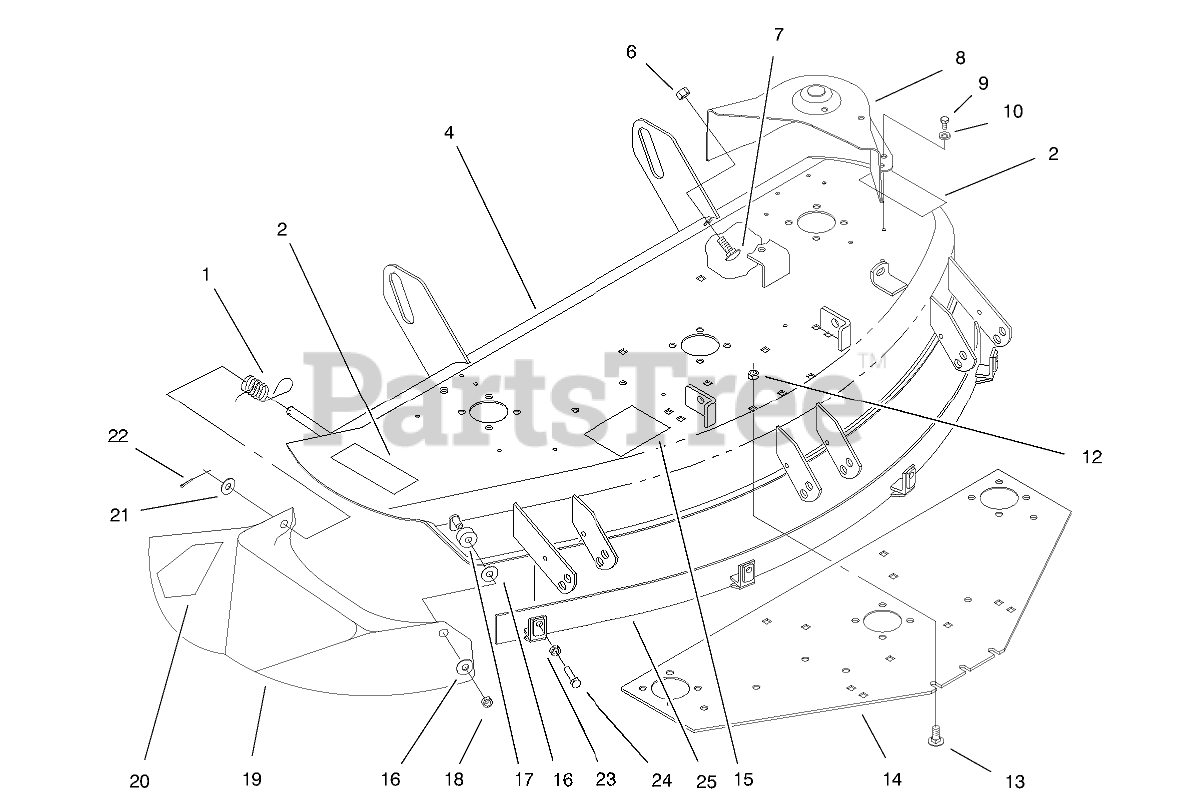

CHUTE, BELT COVER & SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1631

SPRING-DEFLECTOR

$30.99

$

Usually ships in 3-6 days

0

2

Toro 93-7317

DECAL-DANGER

$

$

Not available

4

Toro 98-1799

DECK ASM

$2008.99

$

Usually ships in 3-6 days

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

7

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

8

Toro 78-6891

COVER-BELT

$156.99

$

Usually ships in 3-6 days

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

13

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 78-8530

Plate-Deck
(Superseded to 78-8530-03)

$

$

Not available

15

Toro 93-7325

DECAL - BELT INSTALLATION

$

$

Not available

16

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 14

0

17

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

18

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

19

Toro 115994

Chute Extension
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

20

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

24

Toro 9114454

BOLT

$

$

Not available

25

Toro 93-0544

WA-FRONT SHIELDR

$

$

Not available
