78231 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 200000001 - 200999999) (2000) BLADE, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

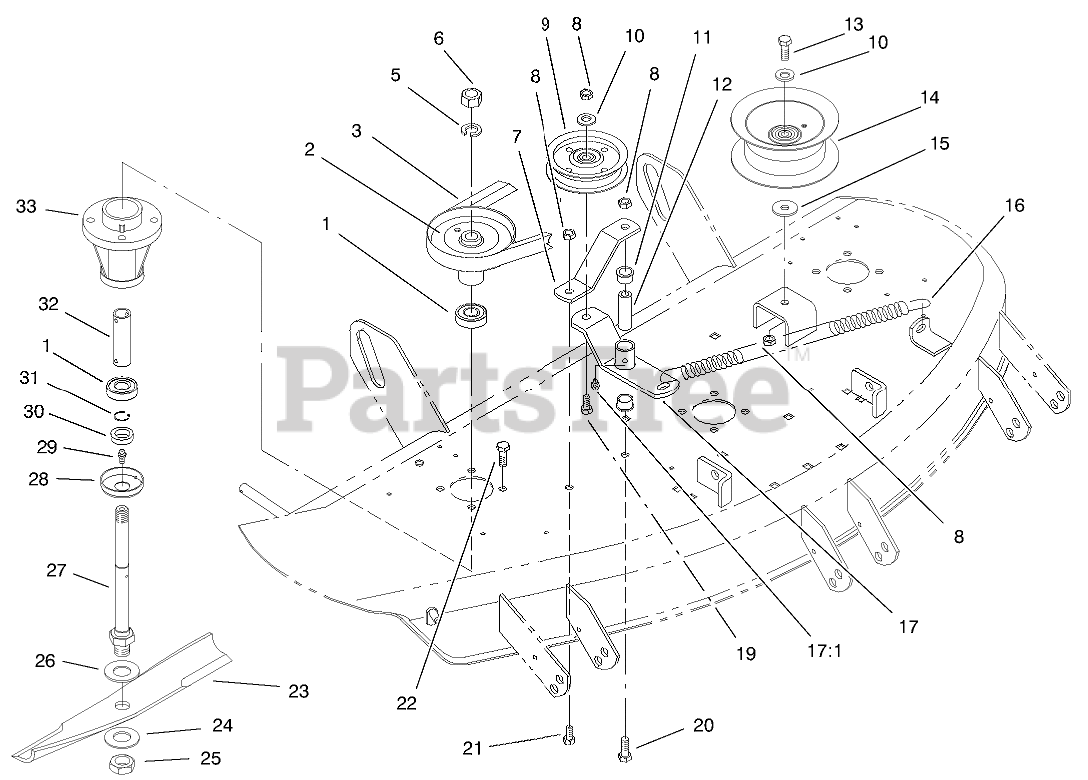

BLADE, SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

2

Toro 92-7080

PULLEY

$94.99

$

Usually ships in 3-6 days

0

3

Toro 92-6991

V-BELT

$116.99

$

In Stock, only 1 left!

0

5

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

7

Toro 78-3140-03

STRAP-BRACE

$

$

Not available

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

11

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

12

Toro 79-2760

SPACER

$

$

Not available

13

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 92-7082

PULLEY-IDLER

$133.99

$

In Stock, only 1 left!

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

16

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

17

Toro 98-9006

ARM - IDLER

$157.99

$

Usually ships in 3-6 days

0

17:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

23

Toro 106636

14IN BLADE KIT

$95.99

$

In Stock, only 1 left!

0

24

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

25

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

26

Toro 9202574

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

30

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

31

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

32

$33.99

$

In Stock, only 1 left!

0

33

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0
