78231 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

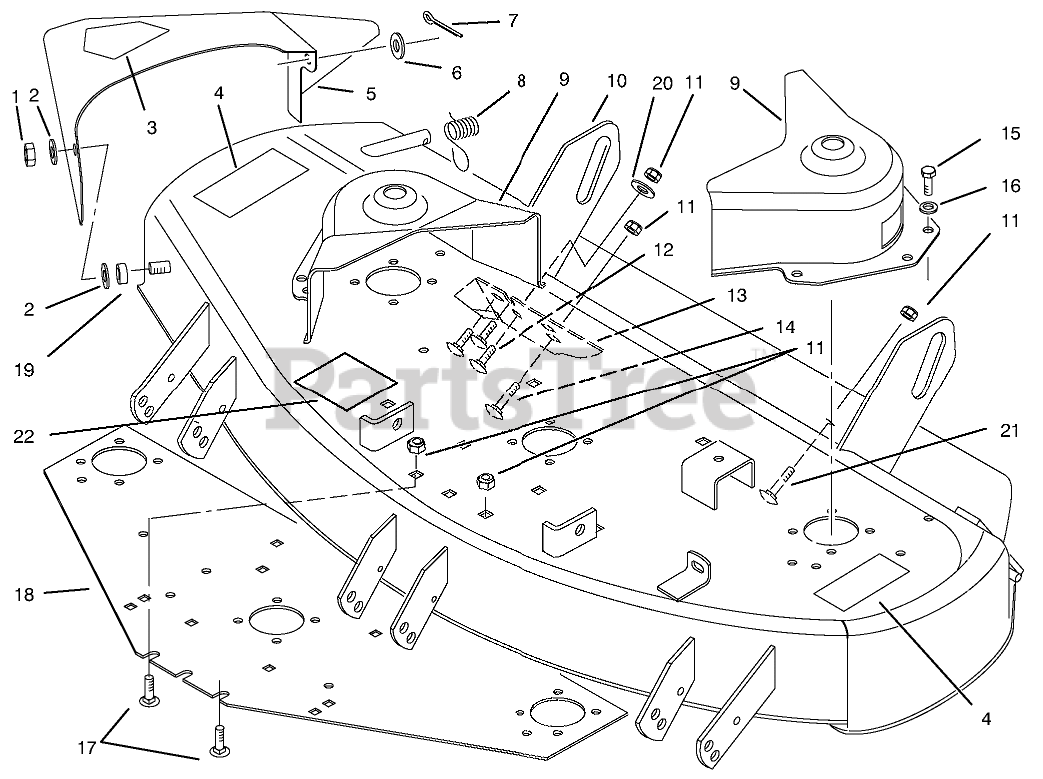

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 9152366

NUT-HJ

$3.49

$

In Stock, only 1 left!

0

2

Toro 93-1633

WASHER

$2.99

$

In Stock, Qty 15

0

3

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

4

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

5

Toro 88-2750-01

Chute Assembly (Incl. Ref. #3)
(Superseded to 99-3708)

$271.99

$

Usually ships in 3-6 days

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

8

Toro 93-1631

SPRING-DEFLECTOR

$30.99

$

Usually ships in 3-6 days

0

9

Toro 78-6891

COVER-BELT

$156.99

$

Usually ships in 3-6 days

0

10

Toro 98-1797

Deck Assembly (Incl. Ref. #4, 22 & 23)

$

$

Not available

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 79-2831-03

PLATE-WEAR RH

$

$

Not available

14

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

15

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 78-8530-03

PLATE-DECK

$

$

Not available

19

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

22

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0
