78231 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 069000001 - 069999999) (1996) SPINDLE ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

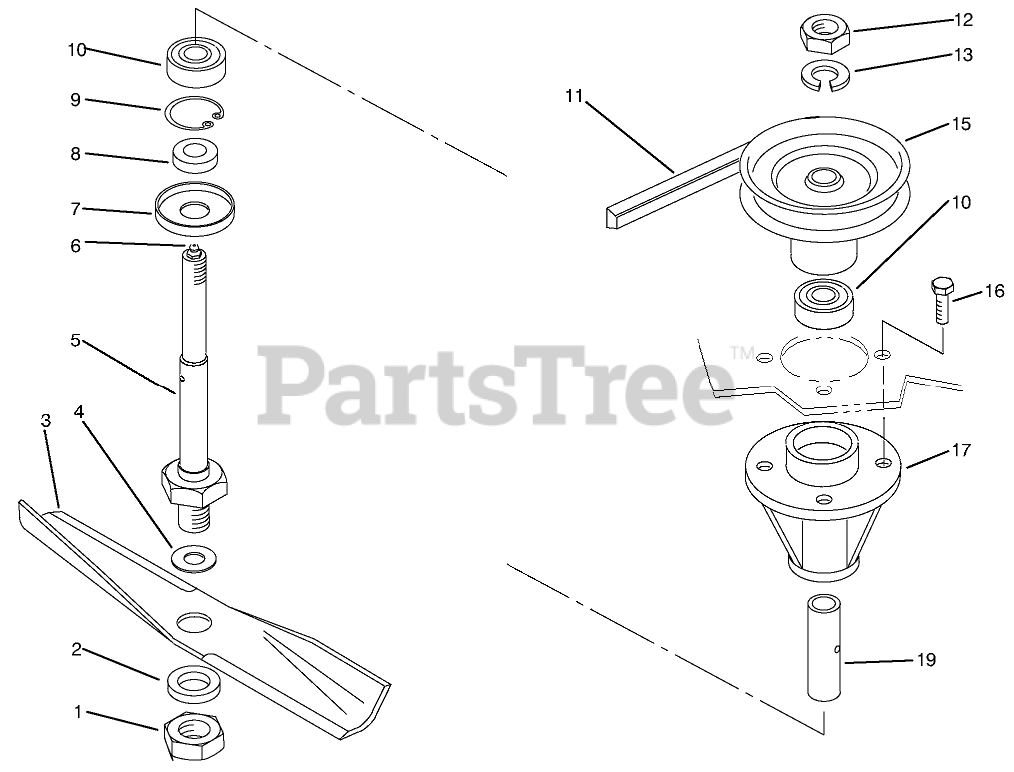

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

2

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

3

Toro 106636

14IN BLADE KIT

$95.99

$

In Stock, only 1 left!

0

4

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

5

Toro 78-6710

SHAFT-SPINDLE

$133.99

$

In Stock, only 1 left!

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

8

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

9

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

10

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

11

Toro 92-6991

V-BELT

$116.99

$

In Stock, only 1 left!

0

12

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

13

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-7080

PULLEY

$94.99

$

Usually ships in 3-6 days

0

16

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

17

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

19

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0
