78231 - Toro 42" Side-Discharge Mower Deck for 260 Series Tractors (SN: 049000001 - 049999999) (1994) PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck for 260 Series Tractors

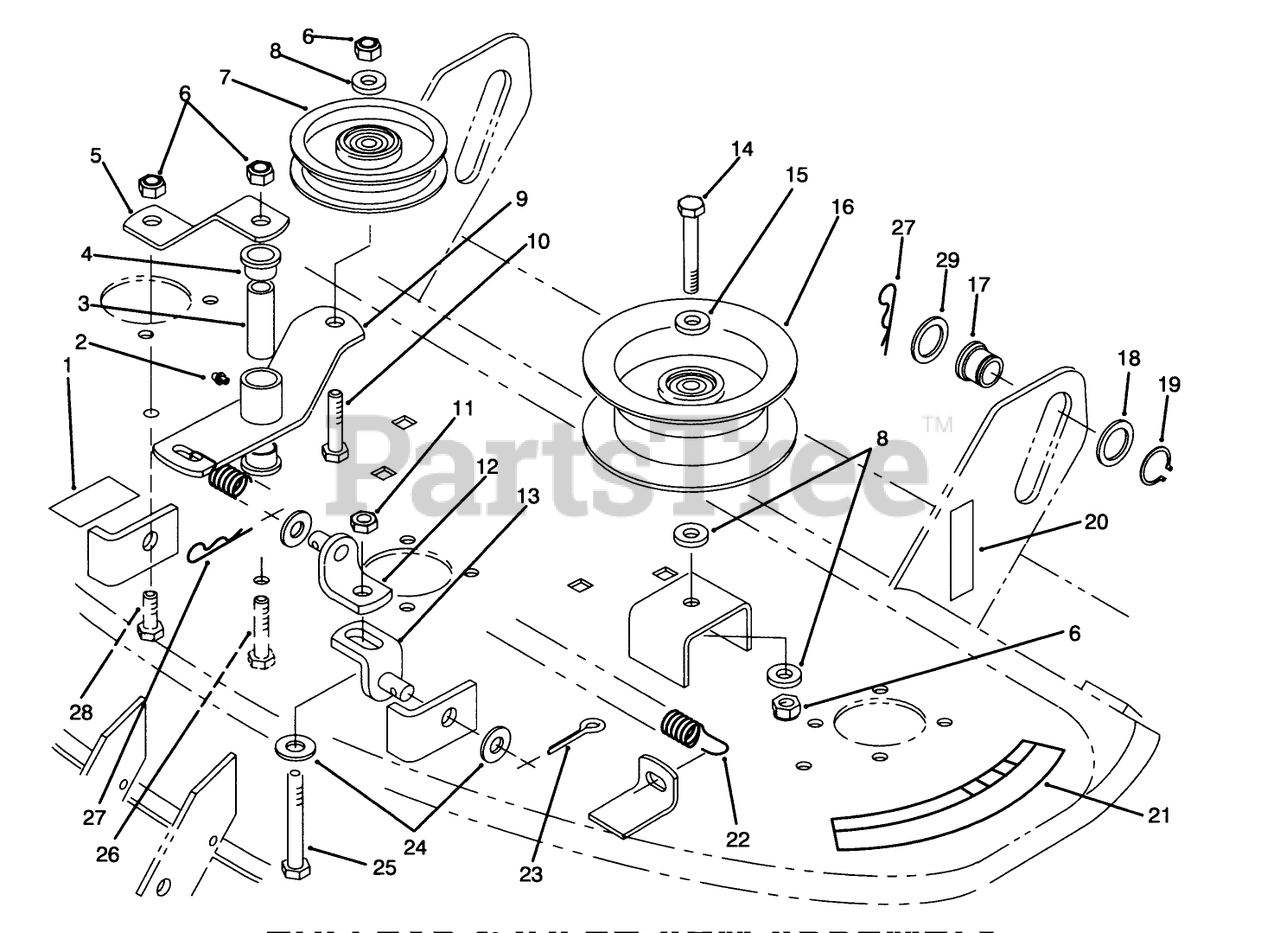

PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

2

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

3

Toro 79-2760

SPACER

$

$

Not available

4

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

5

Toro 78-3140

Strap-Brace
(Superseded to 78-3140-03)

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

7

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

9

Toro 78-3150

Arm-Idler
(Superseded to 98-9006)

$157.99

$

Usually ships in 3-6 days

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

12

Toro 86-9250

BRACKET-LIFT, UPPER

$96.99

$

In Stock, only 1 left!

0

13

Toro 86-9240

BRACKET-LIFT, LOWER

$107.99

$

In Stock, only 4 left!

0

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

16

Toro 92-7082

PULLEY-IDLER

$133.99

$

In Stock, only 1 left!

0

17

Toro 78-7340

ROLLER-LIFT

$12.99

$

Usually ships in 3-6 days

0

18

Toro 920239

Washer
(Superseded to 9202394)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

20

Toro 93-0322

DECAL-ATTACH-A-MATIC

$

$

Not available

21

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

22

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

23

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

26

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0
